Lawler 1/2" Piped Thermometer Ball Valve Dual Out Shower Valve 85004
Lawler 1/2" Piped Thermometer Ball Valve Dual Out Shower Valve 85004 - Rough Bronze is backordered and will ship as soon as it is back in stock.

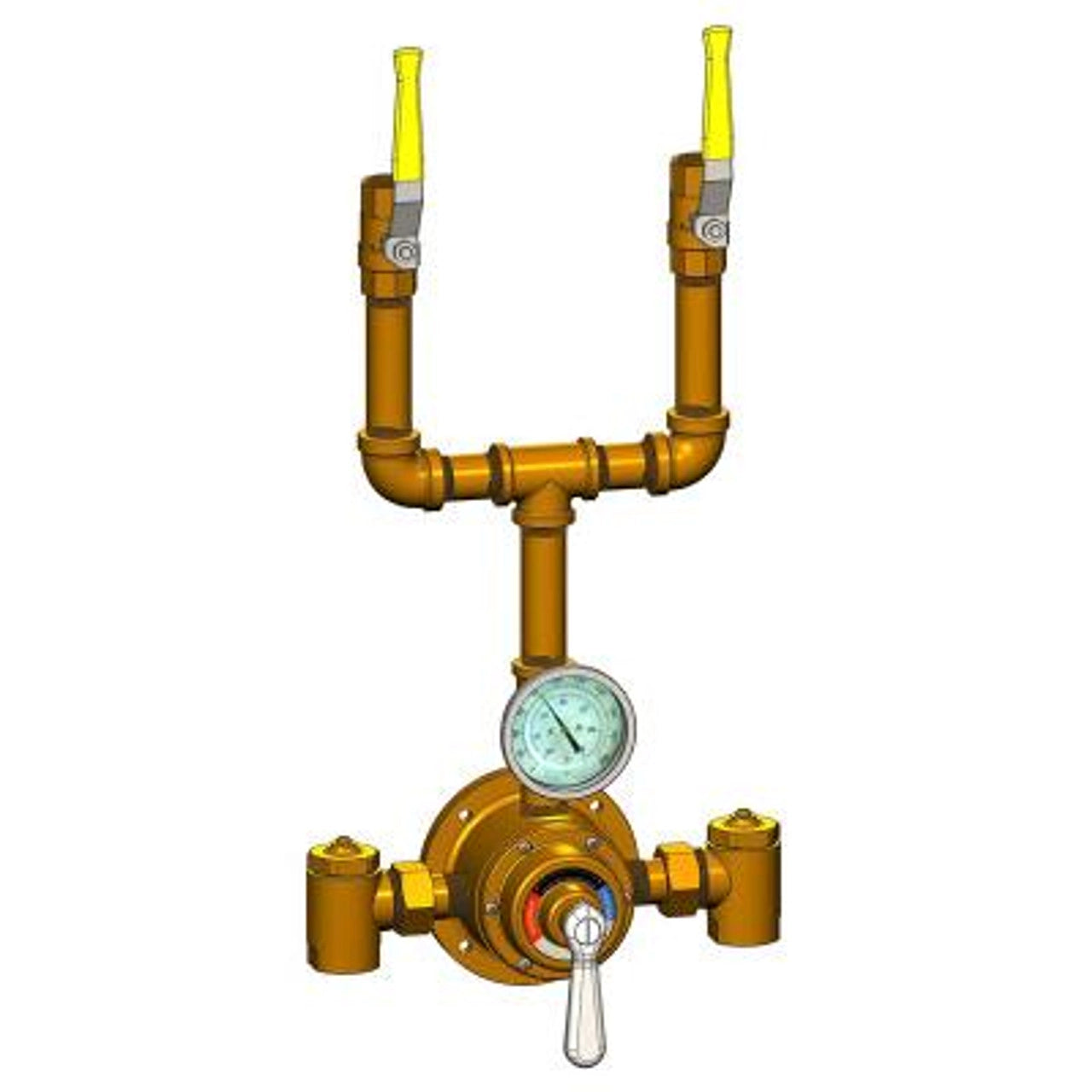

Lawler Series 4000 Model 4205/4210 Piped Thermometer, Ball Valve & Dual Outlet Shower Mixing Valve
The Lawler Series 4000 Model 4205/4210 Type T Shower Mixing Valve uses a sensitive thermostatic element that automatically responds to temperature and pressure variations by proportioning hot and cold water flow to help maintain a consistent outlet temperature.
This configuration includes a 0–200°F dial thermometer, shutoff valve, and dual tempered water outlets. The exposed valve body features a flat wall-mounting flange for installation on a shower wall, spa tub, or compatible cabinet assembly.
The valve uses a liquid-filled thermostatic motor, lead-free brass body construction, replaceable corrosion-resistant components, and a sliding piston control mechanism with stainless steel piston and liner components. Assemblies with downstream shutoff devices include union-end stop and check valves with removable strainers on each inlet.
Key Features
- Type T thermostatic mixing valve for shower applications.
- 0–200°F dial thermometer for tempered water temperature monitoring.
- Shutoff valve on the tempered water outlet assembly.
- Dual outlet configuration.
- Liquid-filled thermostatic motor responds to temperature and pressure variations.
- Sliding piston control mechanism with stainless steel piston and liner.
- Lead-free brass valve body with replaceable corrosion-resistant components.
- Flat wall-mounting flange for exposed installation.
- ADA compliant.
Technical Specifications
| Series | 4000 |
|---|---|
| Model | 4205 / 4210 |
| Configuration | Piped Thermometer, Ball Valve & Dual Outlet |
| Engineering Number | 85004 |
| Application | Shower |
| Connection Type | NPT |
| Inlet Connection Size | 1/2" |
| Outlet Connection Size | 1/2" |
| Minimum Flow | 1/2 GPM |
| Minimum Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 3-1/2 GPM |
| Rated Flow at 45 PSI | 10 GPM |
| Dial Thermometer Range | 0–200°F |
| Temperature Ranges | 100°F–150°F, 50°F–100°F, 85°F–135°F |
| Finish / Part Number |
Polished Chrome: 85004-04 Rough Bronze: 85004-03 |
| Manufacturer | Lawler |
