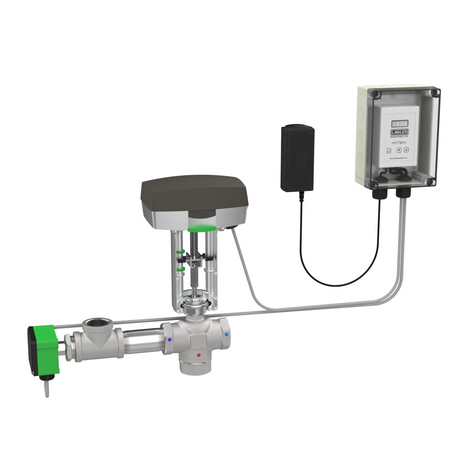

Neptune EMX Electronic Mixing Valve

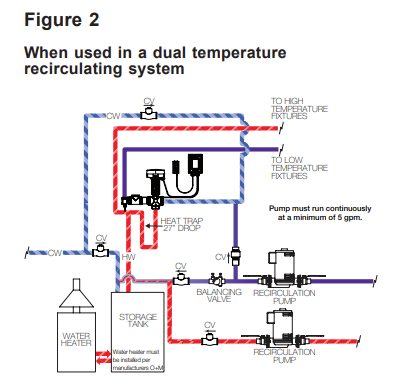

EMX is an ASSE 1017 Listed Electronic Tempering Valve System used to control domestic hot water temperature. The EMX is designed to work in domestic hot water systems a
return line and a continuously running recirculation pump. The EMX valve should not be used in a gang shower application. Use an ASSE 1069 approved valve for those
applications.
Features:
• Easy setup, simple 3 button interface
• Low demand dead zone with adjustable activation point
• High temperature alarm function
• Fast sampling rate of sensor input
• Two valves can be installed in parallel with one controller
• ModBus communication standard
• Lead Free valve conforms to NSF/
ANSI 372-2011 requirements
Selection:
Valves should be selected based on a 5 to 10 PSI pressure drop. The valve is typically smaller than the system piping for most applications.
