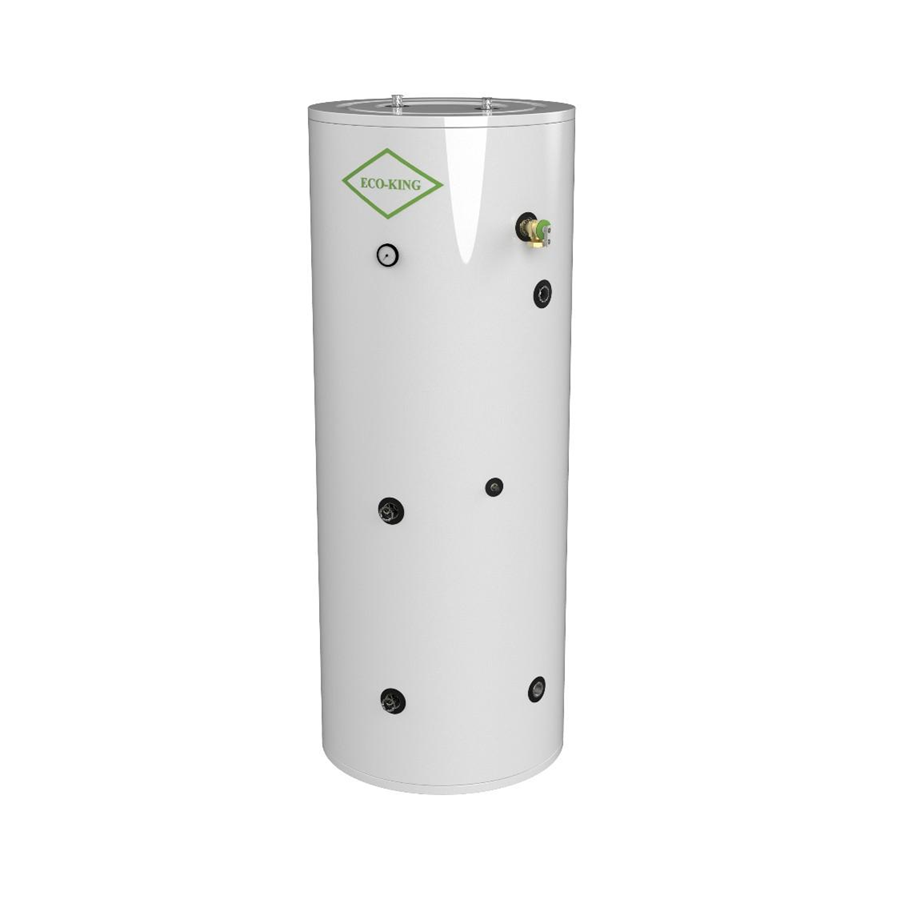

Eco-King 132 Stainless Steel Single Coil Tank
Most Items Ship Same Day
(Warranty, Return and Refunds)

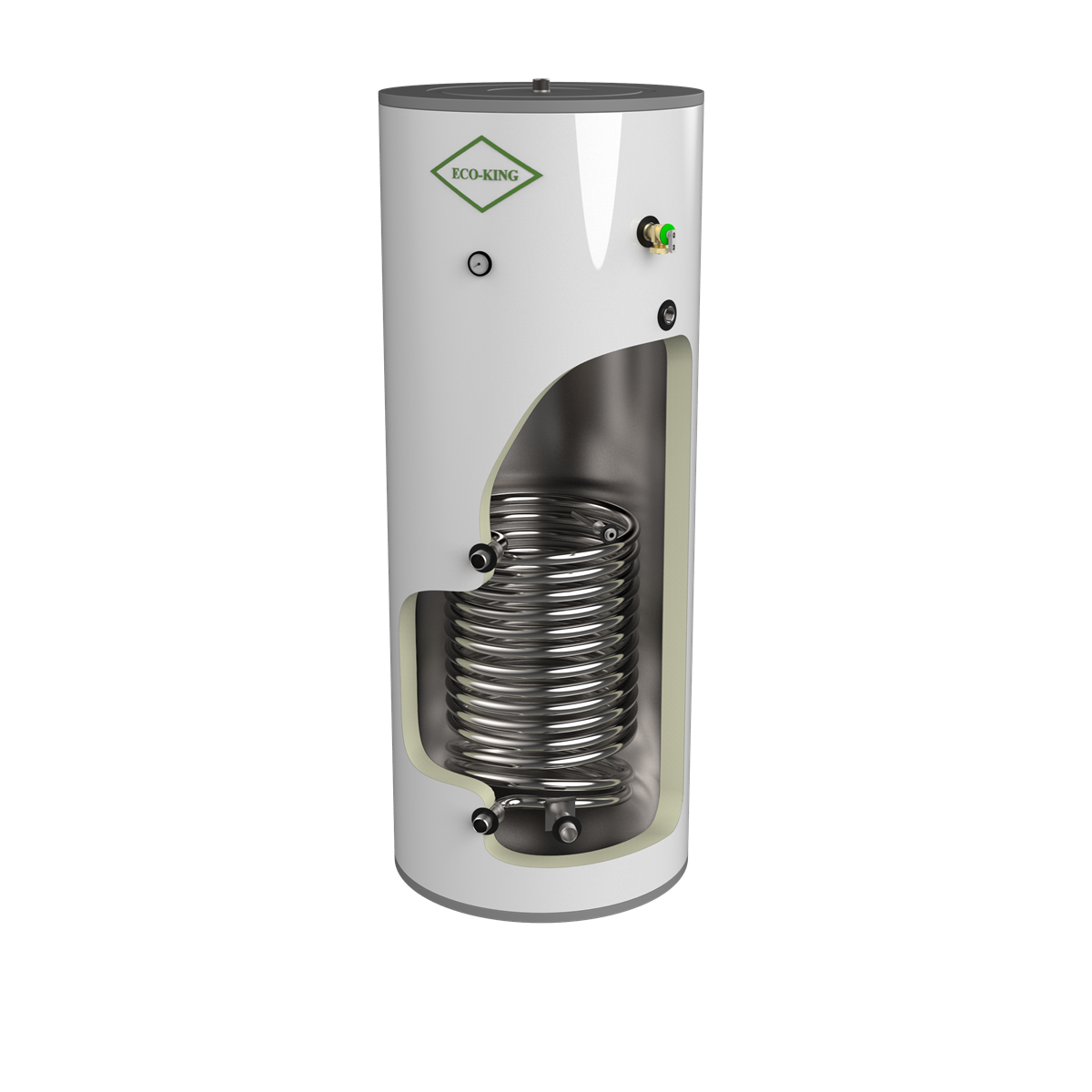

Eco-Kings 132 US gallon Stainless Steel Coil Tank features superior corrosion resistance when compared to other major competitor tanks. Peace of mind with a great 7 year commercial warranty. A large diameter long length coil to ensure high domestic hot water production with temperature sensor for easy boiler control. Outstanding R18 insulation made from spray foam (not Styrofoam) with only half a degree per hour heat loss.

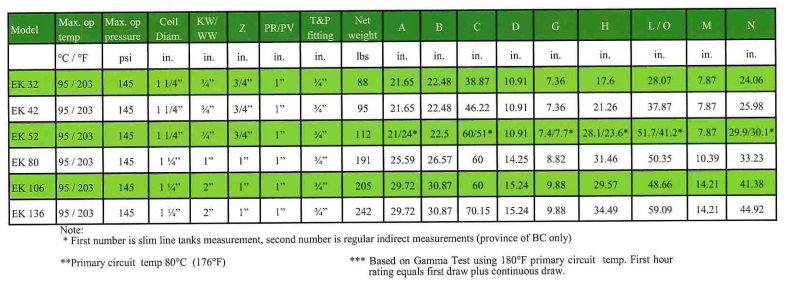

Performance Specifications:
| Capacity L/usg: 500/132 |
| Heat Exchange Surface ft^2: 25.83 |
| Power in BTU: 310492 |
| D.H.W Production (Δt 35°C)**: 589 |
| Heating time(Δt 35°C/95°F)** minutes: 14 |
| Heat Loss 65°C BTU/24h: 11259 |
| Primary Coil Flow Rate usg/h: 793 |
| Flow Resistance psi: 3.4 |
| Coil Volume usg: 4.6 |
| First Hour Rating***usg: N/A |
| Max. op temp °C / °F : 95/203 |
| Max. op pressure psi: 145 |
| Coil Diam in: 1 1/4" |
| KW/WW: 2" |
| Z in: 1" |
| PR/PV in: 1" |
| T&P fitting in: 3/4" |
| Weight (Empty): 242 lbs |

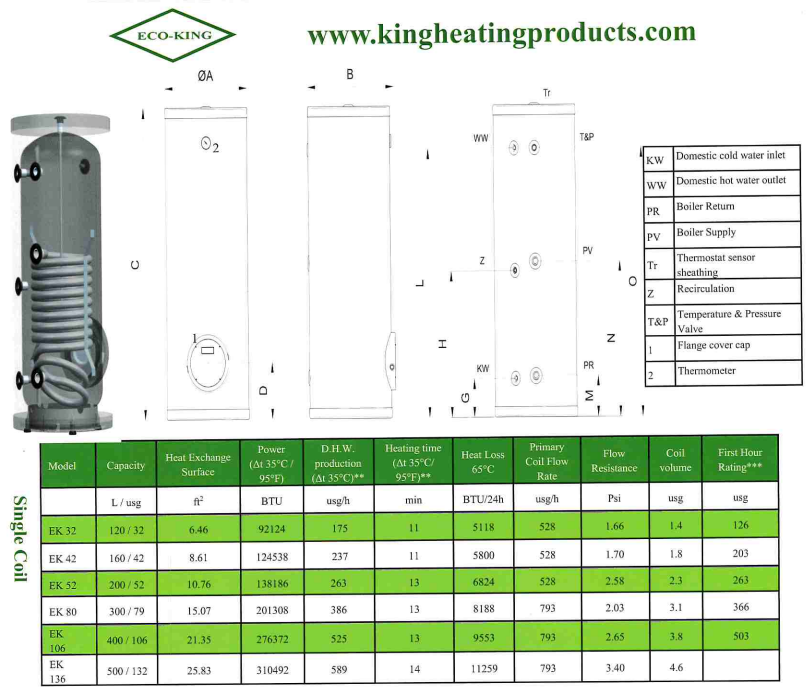

| A in: 29.72 |
| B in: 30.87 |
| C in: 70.15 |
| D in: 15.24 |
| G in: 9.88 |
| H in: 34.49 |
| L/O in: 59.09 |
| M in: 14.21 |
| N in: 44.92 |
Documents and guides:
Disclaimer: Must be installed by a licensed contractor or warranty is void.
Questions?
Speak with an expert
1-888-615-0755
