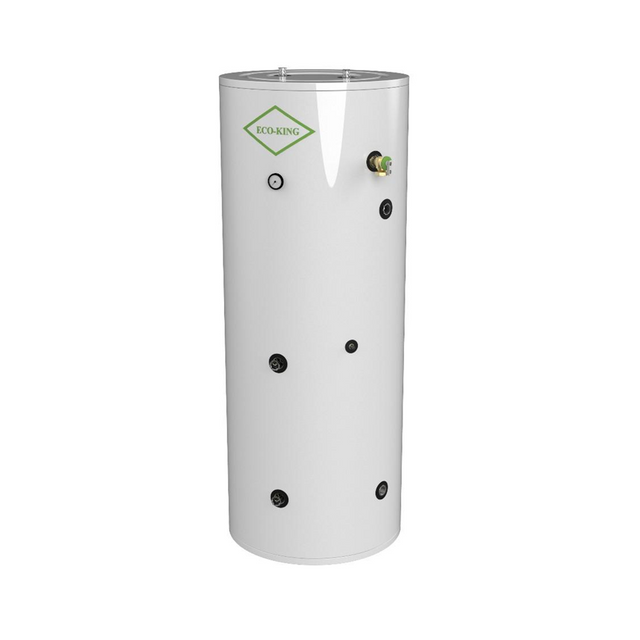

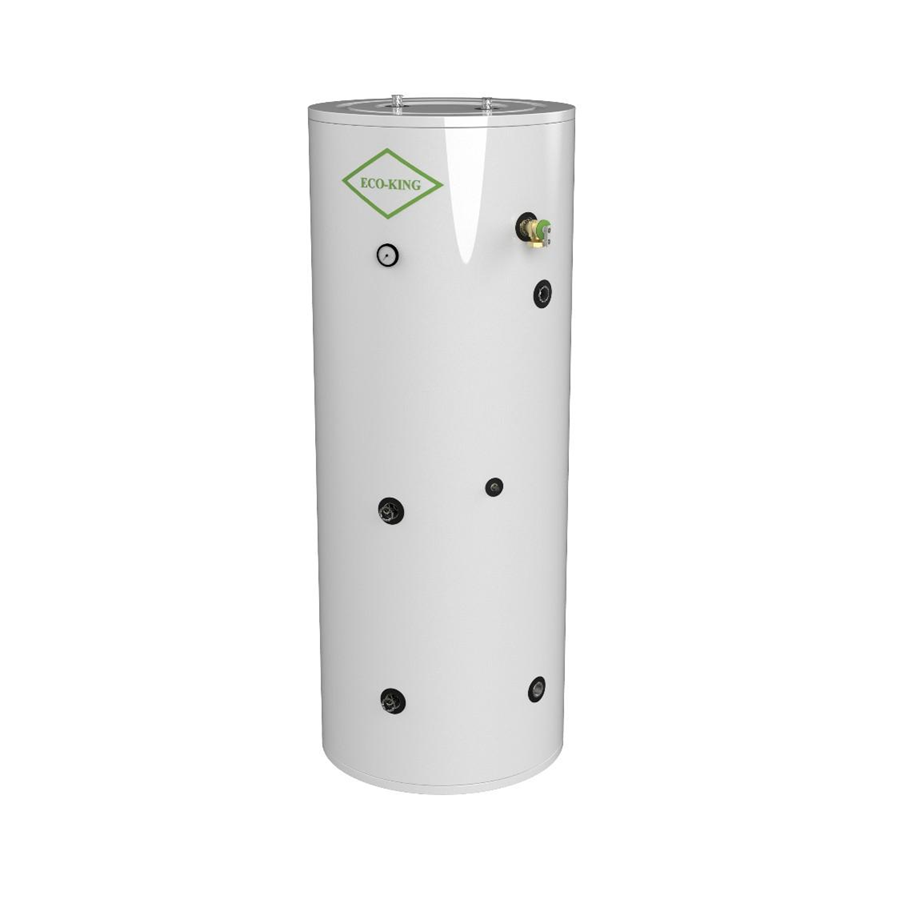

Eco-King 32 Stainless Steel Single Coil Tank

  • $1,389.00
  • Save $1,479


  Most Items Ship Same Day   (Warranty, Return and Refunds)

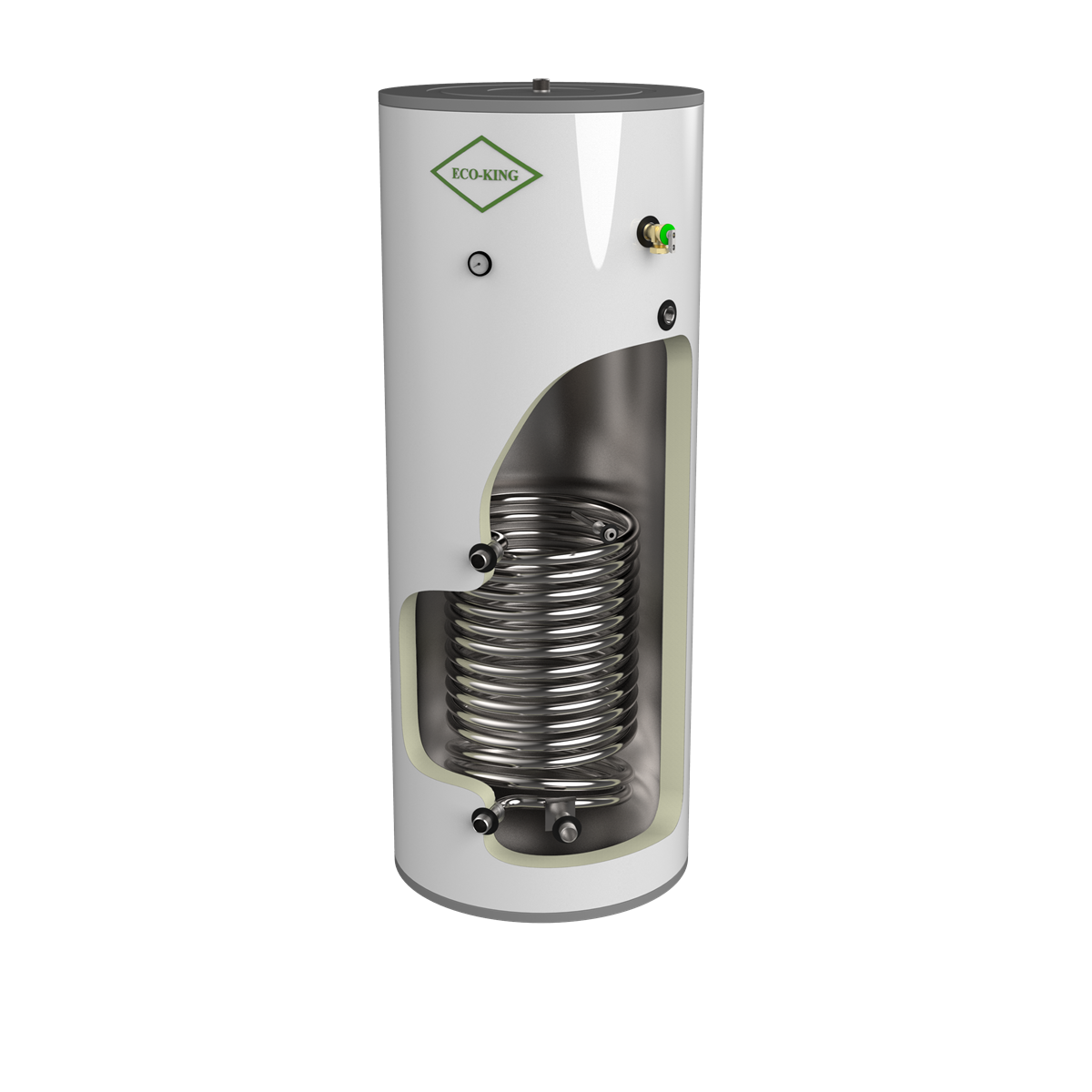

Eco-Kings 32 US gallon Stainless Steel Coil Tank features superior corrosion resistance when compared to other major competitor tanks. Peace of mind with a great 7 year commercial warranty. A large diameter long length coil to ensure high domestic hot water production with temperature sensor for easy boiler control. Outstanding R18 insulation made from spray foam (not Styrofoam) with only half a degree per hour heat loss.

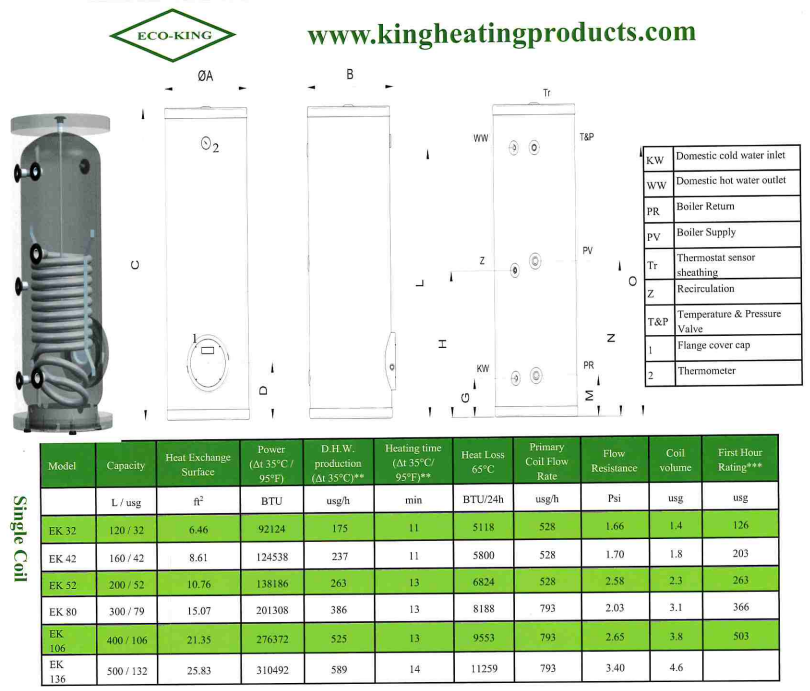

Performance Specifications:

Capacity L/usg120/32
Heat Exchange Surface ft^2: 6.46
Power in BTU: 92124
D.H.W Production (Δt 35°C)**: 175
Heating time(Δt 35°C/95°F)** minutes: 11
Heat Loss 65°C BTU/24h: 5118
Primary Coil Flow Rate usg/h: 528
Flow Resistance psi: 1.66
Coil Volume usg: 1.4
First Hour Rating***usg: 126

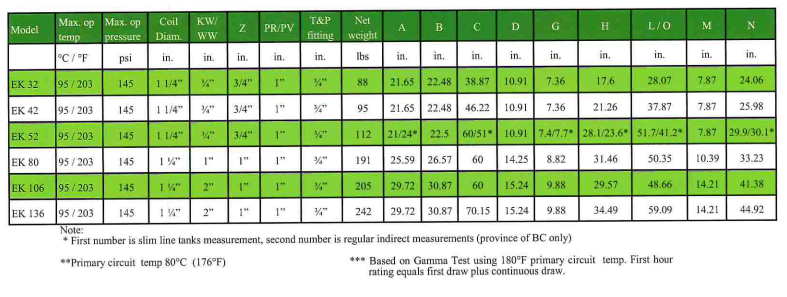

Max. op temp °C / °F : 95/203
Max. op pressure psi: 145
Coil Diam in: 1 1/4"
KW/WW: 3/4"
Z in: 3/4"
PR/PV in: 1"
T&P fitting in: 3/4"
Weight (Empty): 88 lbs
A in: 21.65
B in: 22.48
C in: 38.87
D in: 10.91
G in: 7.36
H in: 17.6
L/O in: 28.07
M in: 7.87
N in: 24.06



Documents and guides:

Read more...
shop pay installments buy now pay later
(Open hours: 9:00 AM - 5:00 PM)

Disclaimer: Must be installed by a licensed contractor or warranty is void.
