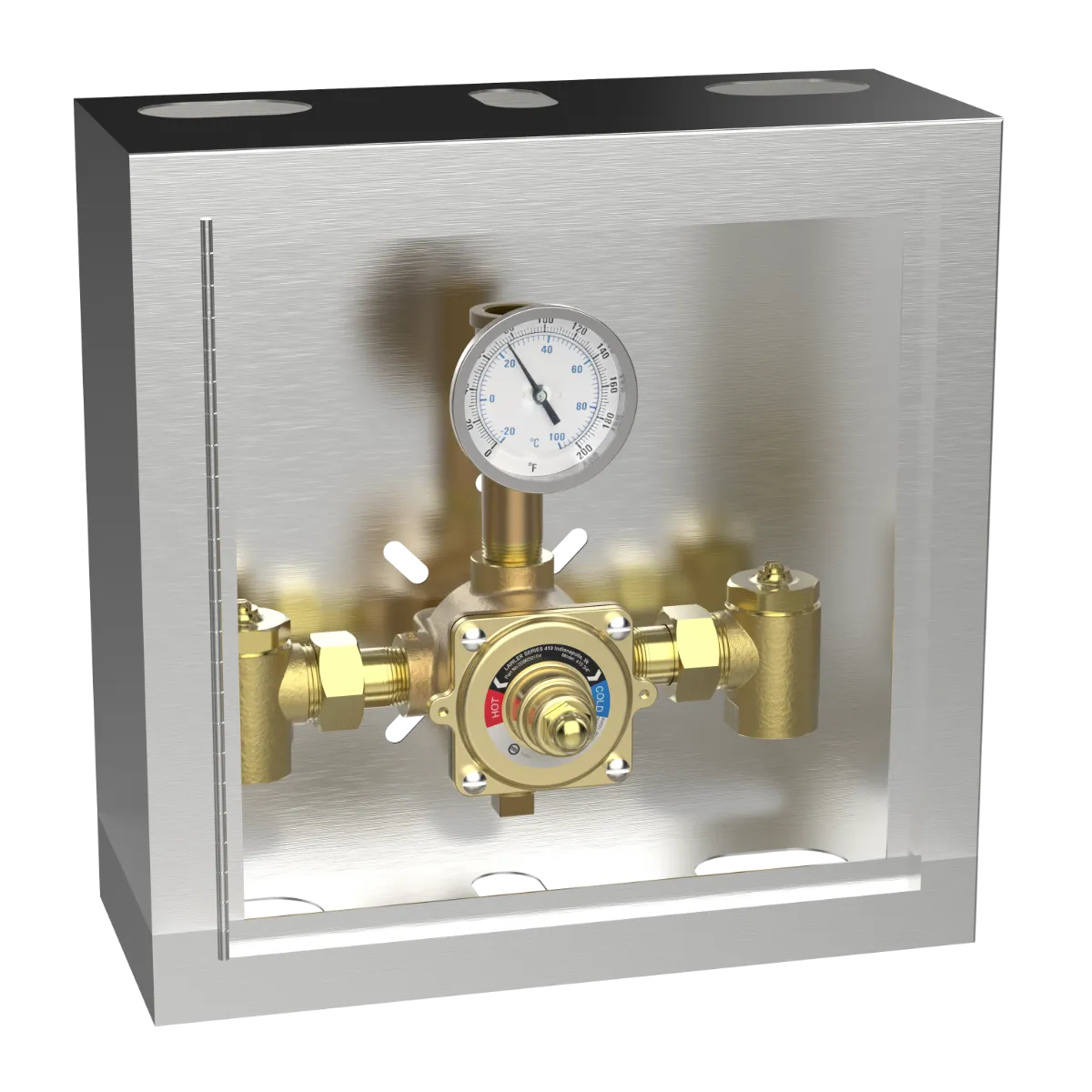

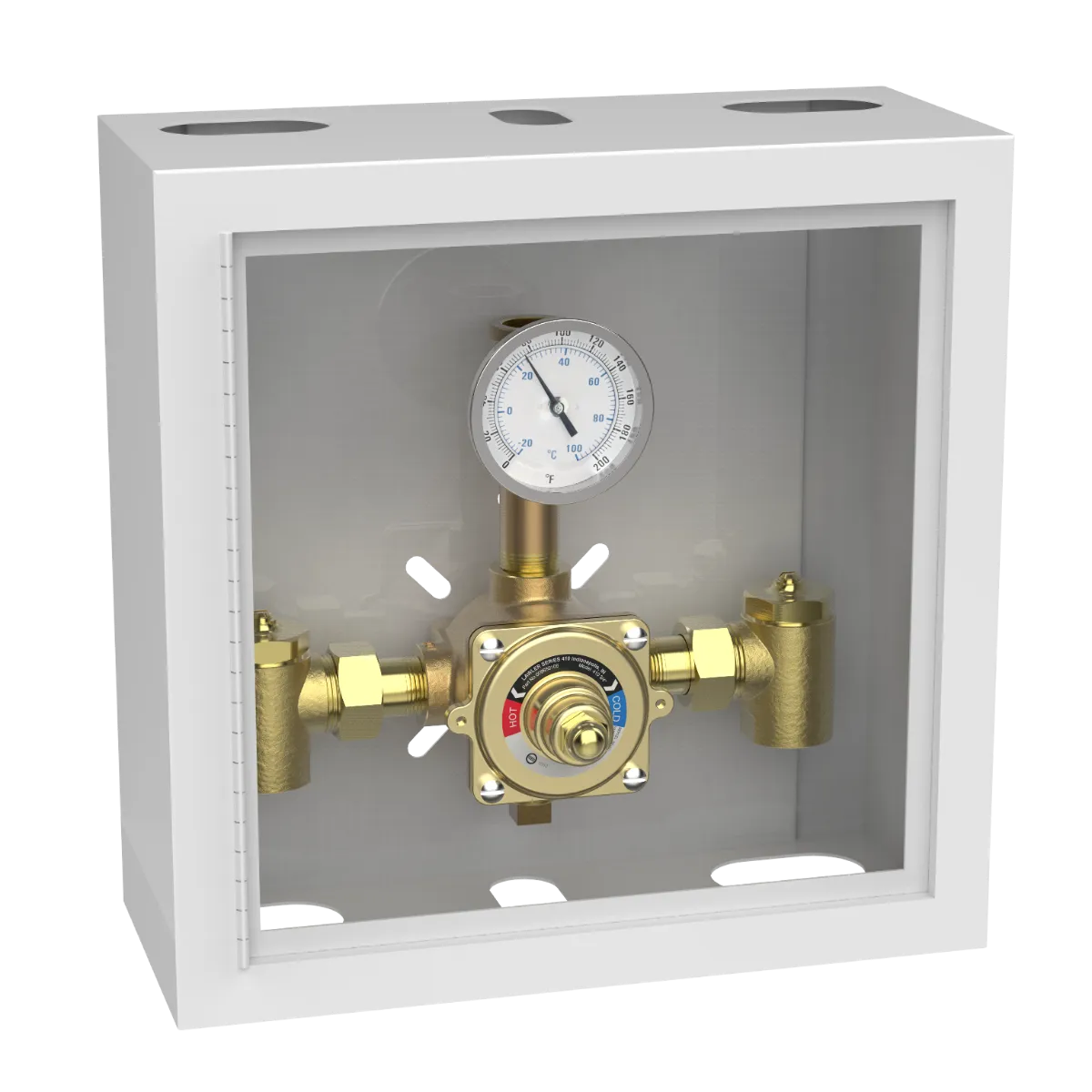

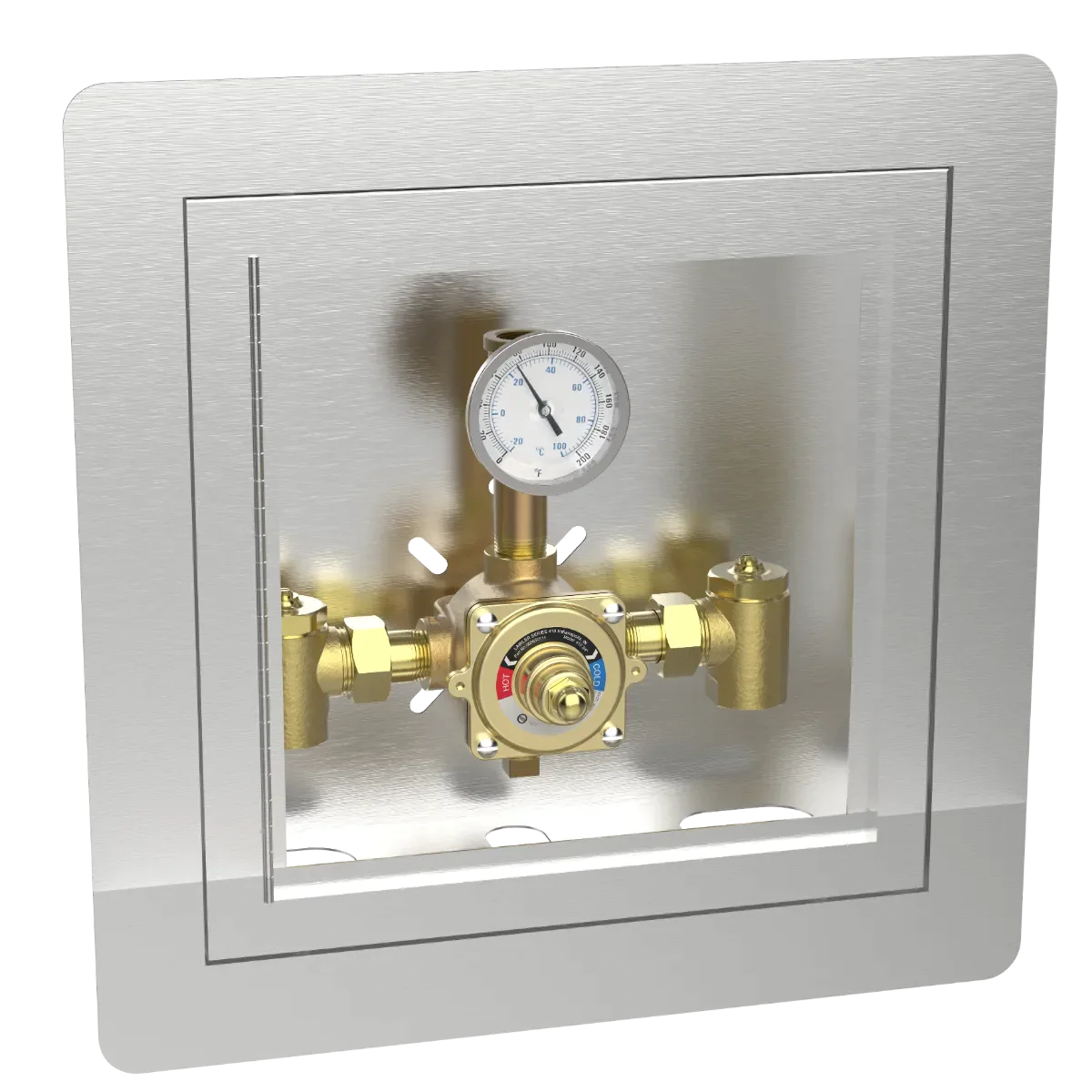

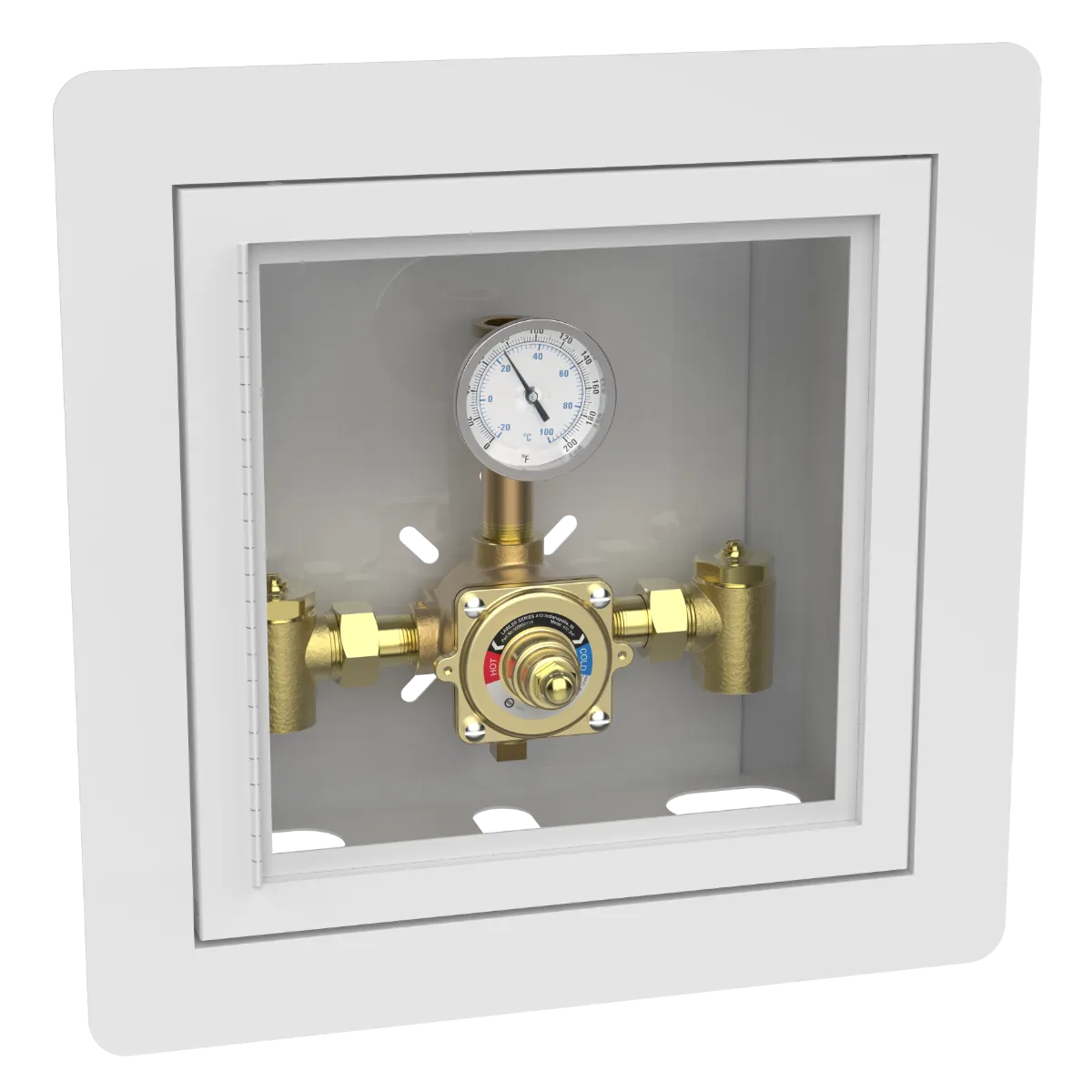

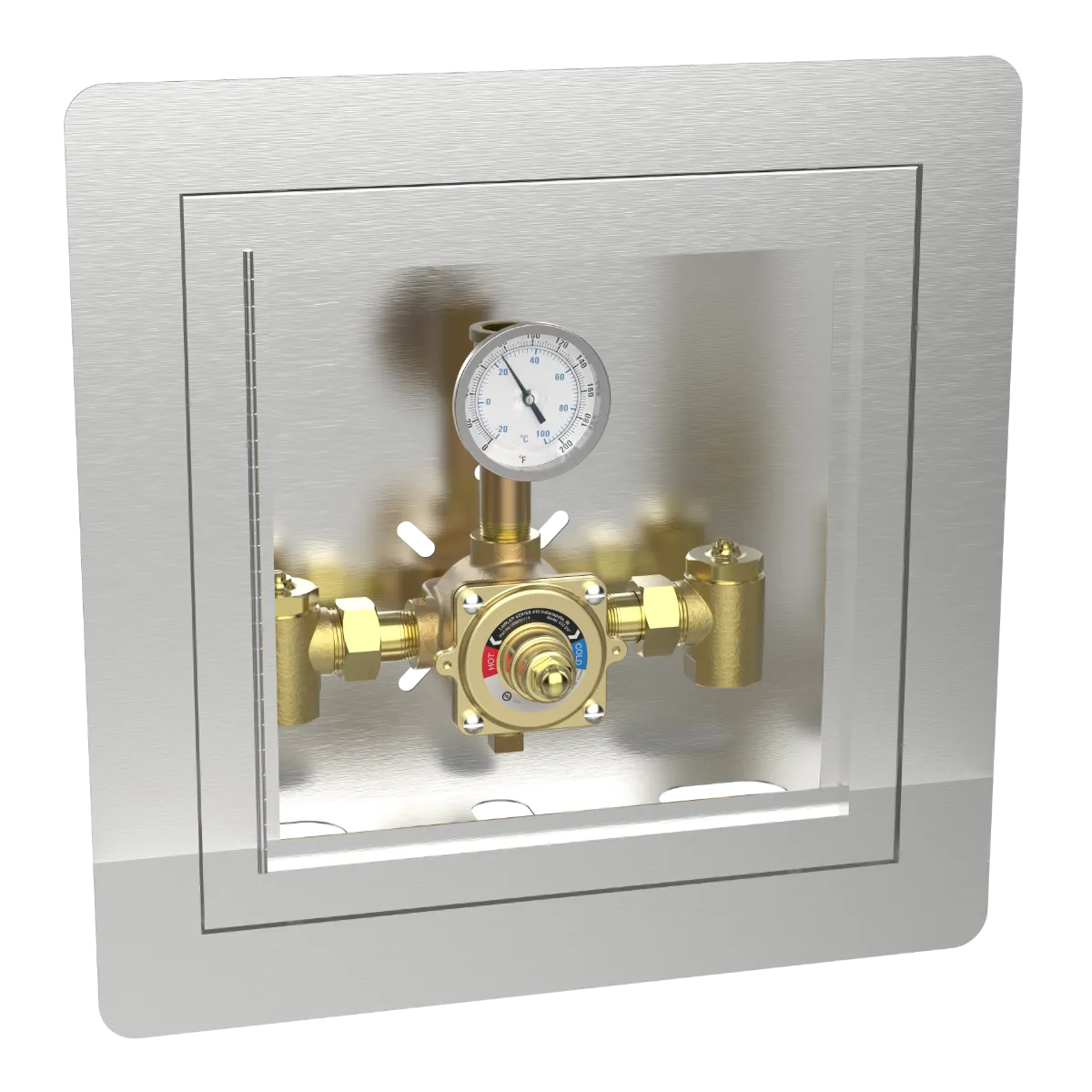

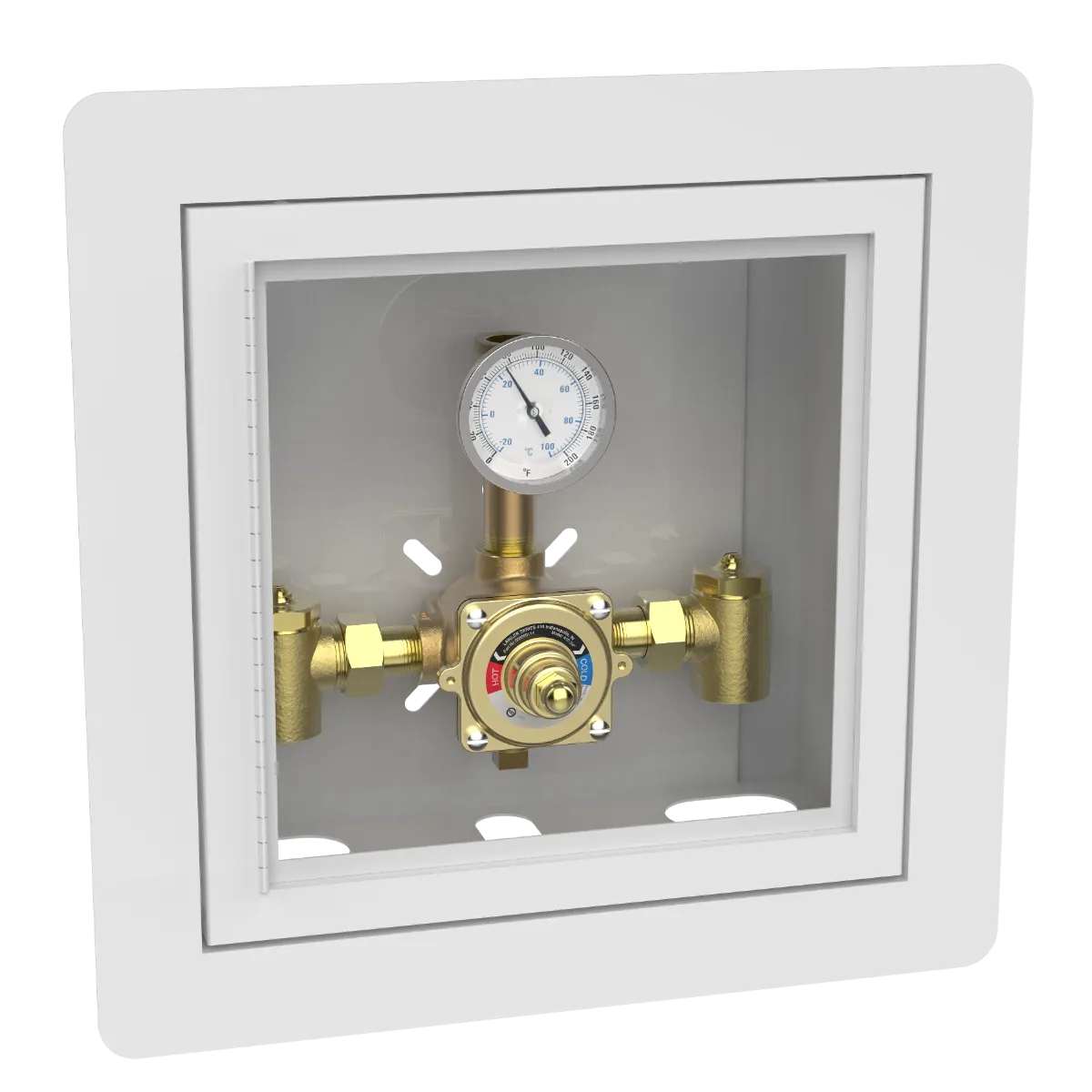

Lawler 410-75 Piped Thermometer Cabinet 86501
Most Items Ship Same Day
(Warranty, Return and Refunds)
Lawler’s Model 410® thermostatic mixing valve (Type T) meets your specification for a small (3/4″ NPT) controller for multiple fixtures at point-of-use. The Model 410® Type T Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations in hot and cold water lines. The stainless steel piston and liner precisely proportion water flow to maintain a constant outlet temperature and to guard against unexpected hot or cold water spikes. Model 410® precisely controls outlet temperatures to within ±3 degrees with flow rates between 1 to 20 GPM at 45 psi. The Model 410® can be installed with or without cabinet.
Specifications:
| Series: 410 |
| Model: 410-75 |
| Configuration: Piped Thermometer |
| Engineering Number: 86501 |
| Application: Shower |
| Certification/s: ASSE 1069, Lead Free |
| Connection Type: NPT |
| Inlet Connection Size: 3/4" |
| Outlet Connection Size: 3/4" |
| Min Flow: 1 GPM |
| Min Flow With Recirculation: N/A |
| Rated Flow at 10 PSI: 8 GPM |
| Rate Flow at 45 PSI: 20 GPM |
| Temperature Range: 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish: Rough Chrome, Rough Brass |
| Cabinet Mounting: Exposed, Recessed, Semi-Recessed |
| Cabinet Finish: Baked White Enamel, Stainless Steel |
