AV 4000 Series - Cast Iron Flanged Full Port Ball Valve 200W (3700 2" - 8")

Reliable Valve Solutions for Everyday Water Challenges

For over 100 years, American Valve has delivered high-performance valves trusted across plumbing, HVAC, and industrial applications. Known globally for our expertise in ball valves, thermoplastic valves, plumbing valves, and water treatment components, we engineer solutions that solve critical flow control challenges with long-lasting performance and reliability.

💧 Why Gate Valves Fail — And What Makes the 4000 Series Better

Gate valves are prone to leakage by design. With a Class IV shutoff, their discs and seat rings remain exposed to wear and debris buildup, making them difficult to operate—often requiring excessive force or cheater bars just to turn.

🔧 The 4000 Series: Performance Without Compromise

The 4000 Series Flanged Ball Valve is the ultimate gate valve replacement. It’s engineered for maximum unobstructed flow, protected valve seats, and smooth automation with low operating torque and an ISO 5211 mounting pad.

Unlike traditional gate, butterfly, or eccentric plug valves that are prone to failure in demanding environments, the 4000 Series is the trusted solution for critical water, air, and industrial fluid applications around the world.

🛡️ Built to Last: The PFA*-Fused Ball Advantage

At the heart of the 4000 Series is a PFA-fused solid cast iron ball*—a breakthrough innovation offering industry-leading durability and chemical resistance.

Benefits of the PFA-Fused Ball:*

• Exceptional corrosion resistance

• Inhibits lime, calcium, and sludge buildup

• Lasts up to 10 times longer than unprotected balls

• Lower torque requirements, longer seat life

• Permanent bond—won’t chip, flake, or wear off

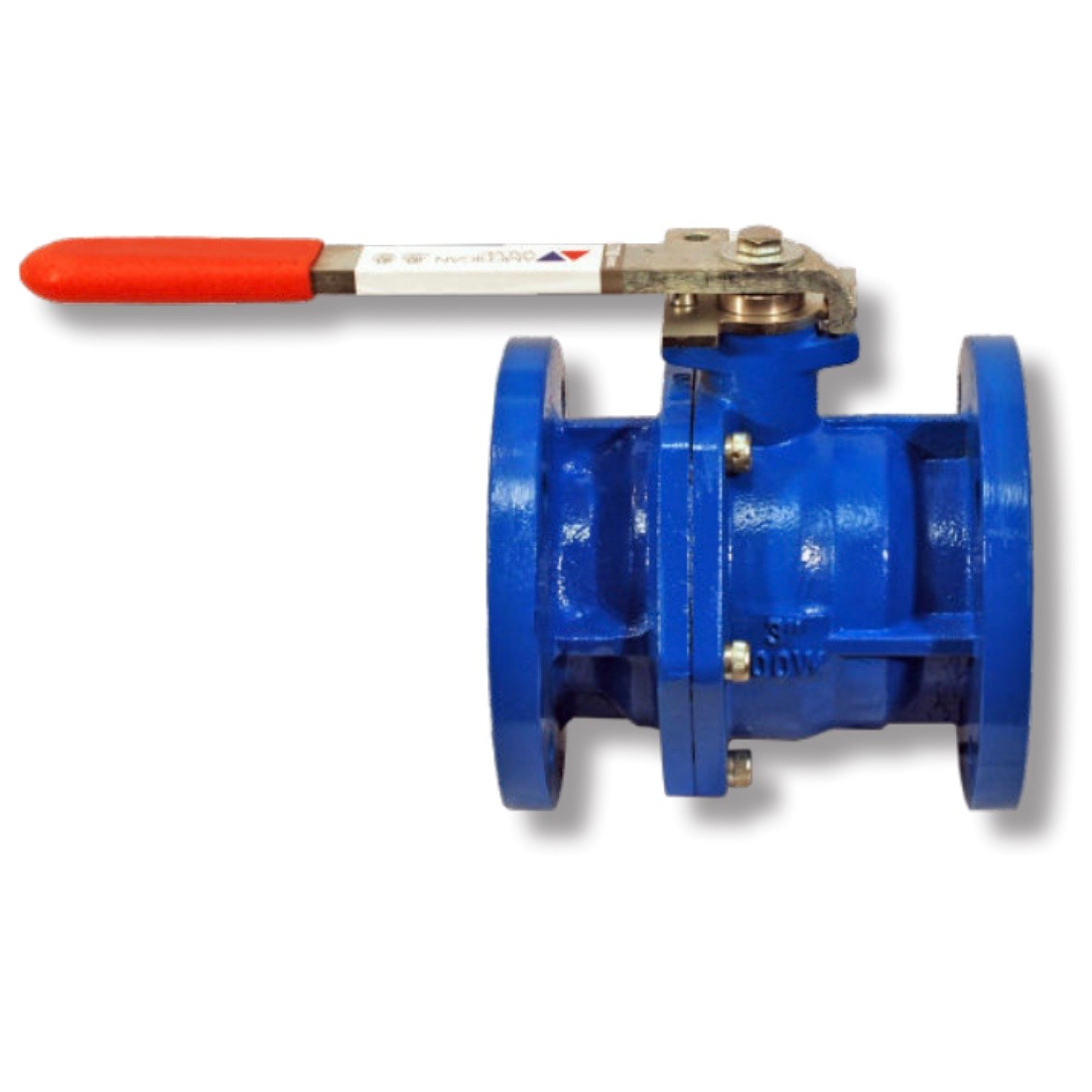

⚙️ Model 3700 Cast Iron Flanged Ball Valve

Sample Specification:

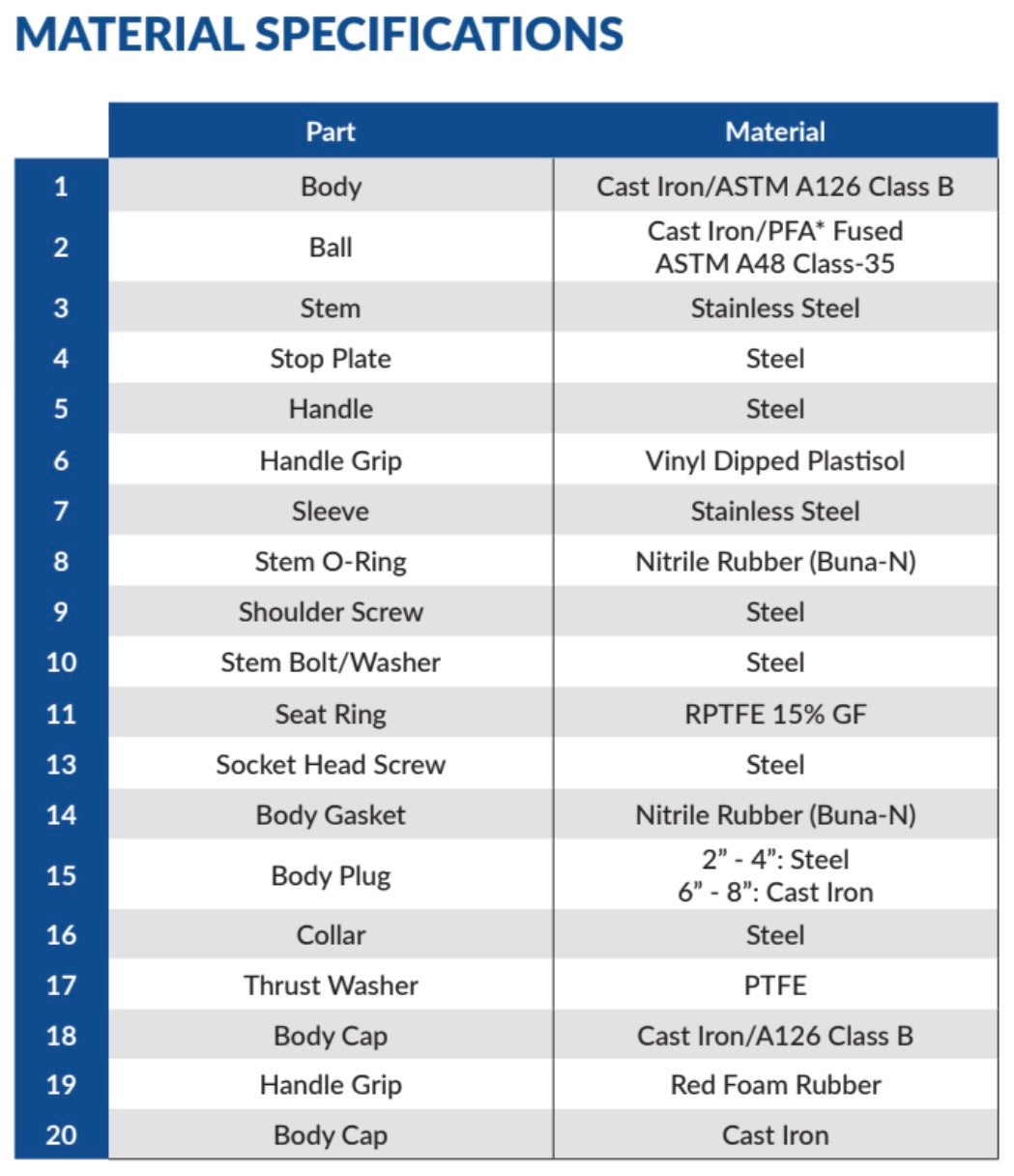

Valves shall feature a floating-ball design with bidirectional tight shutoff per MSS SP-72, rated at 200 PSI non-shock at 200°F. Cast iron bodies (ASTM A126 Class B) shall include ANSI Class 125 flat-face flanges and UL-certified polyester powder coating. The PFA-fused cast iron ball shall include a stainless steel blowout-proof stem, PTFE seats, and Buna-N O-rings. Locking handles and one test port come standard, with optional 2” square operating nuts. Model: Series 3700 by American Valve or approved equivalent.

Features:

• Certified to NSF/ANSI 61 & 372

• PFA*-fused, lead-free solid ball

• Same end-to-end dimensions as flanged gate/plug valves

• Tapped boss for venting or test port

• Full port (2"–8"), low-torque, Class VI shutoff

• Ideal for liquid, air, and backflow systems

Ratings:

• 200 WOG @ 200°F

• Engineered to replace IBBM gate valves, iron gate valves, and plug valves

✅ Trust American Valve for Proven, Long-Lasting Flow Control

Upgrade your valve systems with reliable, corrosion-resistant, and maintenance-friendly solutions from American Valve—where innovation meets performance.

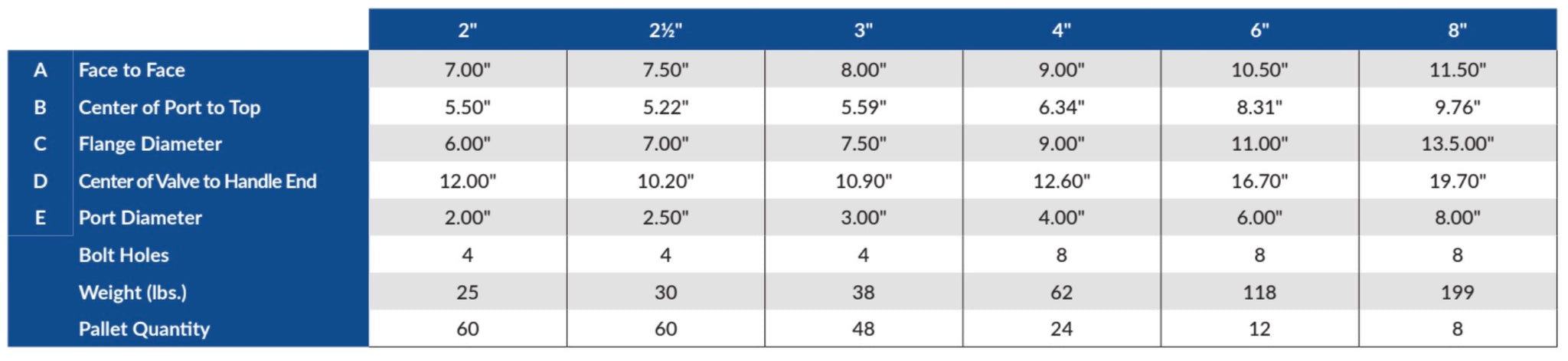

Dimensions:

Warranty:

5 Year Manufacturers Warranty

Technical Documents:

• Brochure
• Installation, Operation, & Maintenance Guide
