AV 4000 Series - Cast Iron Flanged- Full Port Ball Valve 125# (4000 1/2" - 10")

Reliable Valve Solutions for Everyday Water Challenges

For over 100 years, American Valve has delivered high-performance valves trusted across plumbing, HVAC, and industrial applications. Known globally for our expertise in ball valves, thermoplastic valves, plumbing valves, and water treatment components, we engineer solutions that solve critical flow control challenges with long-lasting performance and reliability.

💧 Why Gate Valves Fail — And What Makes the 4000 Series Better

Gate valves are prone to leakage by design. With a Class IV shutoff, their discs and seat rings remain exposed to wear and debris buildup, making them difficult to operate—often requiring excessive force or cheater bars just to turn.

🔧 The 4000 Series: Performance Without Compromise

The 4000 Series Flanged Ball Valve is the ultimate gate valve replacement. It’s engineered for maximum unobstructed flow, protected valve seats, and smooth automation with low operating torque and an ISO 5211 mounting pad.

Unlike traditional gate, butterfly, or eccentric plug valves that are prone to failure in demanding environments, the 4000 Series is the trusted solution for critical water, air, and industrial fluid applications around the world.

🛡️ Built to Last: The PFA*-Fused Ball Advantage

At the heart of the 4000 Series is a PFA-fused solid cast iron ball*—a breakthrough innovation offering industry-leading durability and chemical resistance.

Benefits of the PFA-Fused Ball:*

• Exceptional corrosion resistance

• Inhibits lime, calcium, and sludge buildup

• Lasts up to 10 times longer than unprotected balls

• Lower torque requirements, longer seat life

• Permanent bond—won’t chip, flake, or wear off

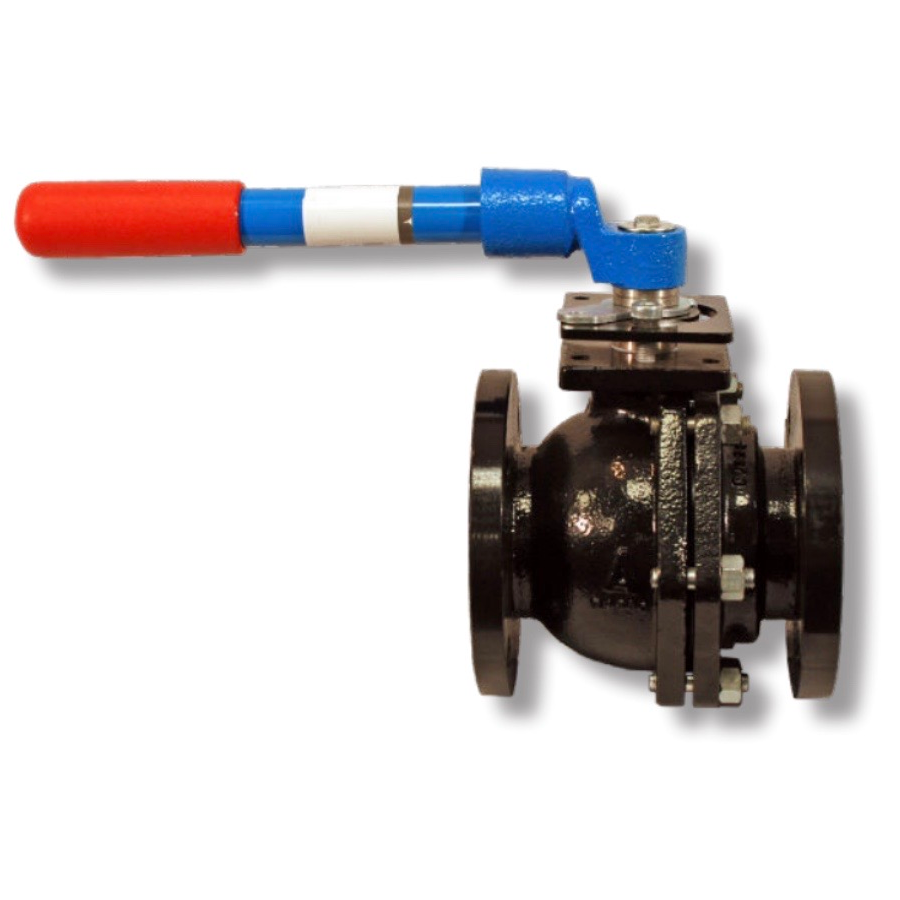

 ⚙️ Model 4000 Cast Iron Flanged Ball Valve

Sample Specification:

Valves shall feature a floating-ball design providing bidirectional, tight shutoff in accordance with MSS SP-72. Valves shall be rated at 125 PSI WSP / 200 PSI WOG. Bodies shall be constructed from ASTM A126 Class B cast iron with ANSI Class 125 flat-face flanges. The interior and exterior shall be powder coated to meet NSF/ANSI 61 and NSF/ANSI 372 standards.

The ball shall be PFA-fused solid cast iron* with a stainless steel blowout-proof stem. The valve seats and body seals shall be reinforced PTFE, with a PTFE externally adjustable chevron-type stem seal. Valves shall include locking handles as standard. Optional configurations include 2" square operating nuts, manual gear operators, or pneumatic, electric, or hydraulic actuators. Model: Series 4000 by American Valve or approved equivalent.

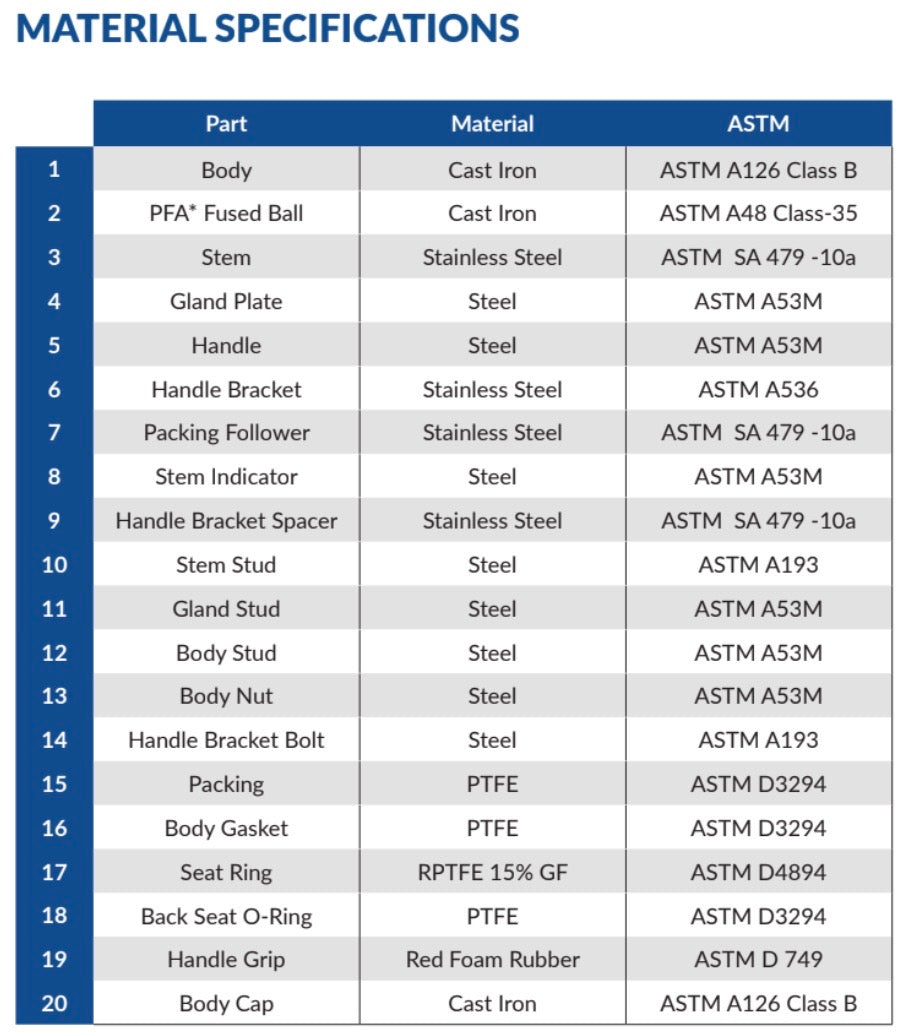

Features:

• A126 Class B cast iron body

• PFA*-fused solid ball

• Blowout-proof stainless steel stem

• Reinforced PTFE seats and body seals

• Conforms to ANSI B16.10 face-to-face and flange dimensions

• Direct replacement for all cast iron gate and plug valves

• Lockable in full open or closed positions

• ISO 5211 mounting pad for easy actuation

• Adjustable-length/removable handles for tight installations

• Full port through 6”

• Certified to:
  ◦ NSF/ANSI 61
  ◦ NSF/ANSI 372
  ◦ MSS SP-72
  ◦ ANSI B16.10
  ◦ FED. SPEC. WW-V-35
  ◦ AWWA C507-99 (Proof of Design)

Ratings:

• 125 PSI WSP

• 200 PSI WOG

• Up to 353°F

• Designed to replace IBBM gate valves, all-iron gate valves, and plug valves

✅ Trust American Valve for Proven, Long-Lasting Flow Control

Upgrade your valve systems with reliable, corrosion-resistant, and maintenance-friendly solutions from American Valve—where innovation meets performance.

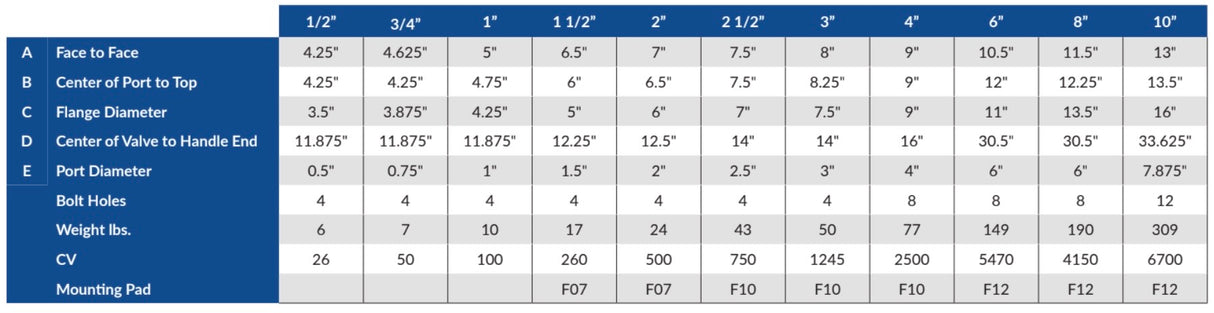

Dimensions:

Warranty:

5 Year Manufacturers Warranty
