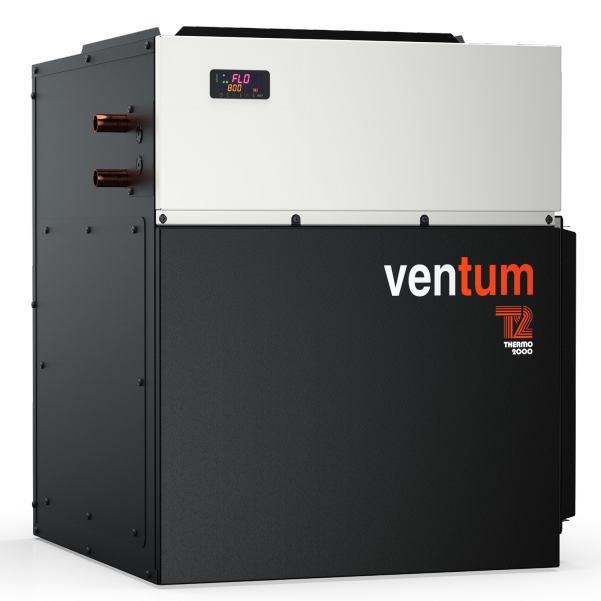

VenTum 60 - Hydronic Air Handler
VenTum 60 - Hydronic Air Handler is backordered and will ship as soon as it is back in stock.
VenTum Hydronic Air Handlers – Precision Heating & Cooling for Year-Round Comfort
Water and Air in Perfect Harmony
VenTum by Thermo 2000 is a hydronic air handler designed to deliver precise, energy-efficient heating and cooling for new or existing centralized HVAC systems. Engineered for performance, comfort, and versatility, VenTum combines hydronic heating technology with smart airflow control to help maintain a comfortable indoor climate throughout the year.
✅ Key Features at a Glance
- Front-Mounted Electronic Controller: Easy access and simple configuration
- Efficient Low-Temperature Water Operation: Designed for modern energy systems
- High-Efficiency ECM Fan Motor: Quiet, reliable, and energy-saving operation
- Integrated Circulator Pump: Built-in performance and convenience
- Compatible with Air Conditioning & Heat Pump Systems: One solution for year-round use
- Flexible Installation: Vertical or horizontal installation in compact spaces
- Quiet, Durable, and Safe: Sound-insulated design with freeze protection
- Two Sizes Available: Adaptable to single-family or light commercial applications
🌡️ Hydronic Comfort with Smart Airflow Control
VenTum air handlers maintain comfortable indoor temperatures with gentle, consistent airflow and ideal humidity levels associated with hydronic heating. Whether you're building a new home or upgrading an existing system, VenTum can integrate with:
- Boilers
- Water heaters
- Heat pumps
- Central air conditioners
Thanks to its precise digital controller, airflow can be adjusted in 10 CFM increments.
⚙️ Advanced Engineering for Reliable Comfort
- Automatic Fan Control: Starts only when the water reaches the set temperature
- BOOST Mode: Gradual airflow increase during high-demand periods
- Dual-Zone Control: Configure airflow to two different zones with one unit
- Freeze Protection: Automatically activates to help prevent damage in the event of thermostat failure
- Circulation Timer: Runs the pump every 6 hours to preserve water quality when connected to a water heater
❄️ Heating & Cooling Operation
Heating Mode
When heat is requested, the thermostat activates the circulator pump and heat source. The fan starts only when the coil water reaches the desired temperature, helping avoid cold drafts. After heating ends, the fan continues to circulate warm air for improved efficiency.
Cooling Mode
Compatible with an indoor A/C coil and outdoor condenser, VenTum gradually ramps up fan speed for quieter and more comfortable cooling. After the desired temperature is reached, the outdoor unit shuts off while the fan continues to circulate cool air through the ductwork.
🔍 VenTum Technical Highlights
- 4-Row Coil: Optimized for low-temperature hydronic systems
- 3-Speed Circulator Pump: Adaptive flow for various installations
- Quiet Operation: 1-inch insulation for sound reduction
- Slide-Out Fan: Designed for fast and easy maintenance
- Relay Card with Light Signals: Simplified diagnostics and performance tracking
- Pre-Cut Return Duct Options: Return installation from the left, right, or bottom
🔧 Connection Options
- 120 VAC main power
- Thermostat terminal
- 24 VAC accessory output for motorized valves
- Heat source activation
- A/C activation
Dimensions & Specifications
| Dimensions | VenTum 40 | VenTum 60 |
|---|---|---|
| Height | 26 1/8" | 30 1/8" |
| Width | 21" | 25" |
| Depth | 24" | 24" |
| Soldered Connectors | 3/4" | 3/4" |
| Air Filter | 16" × 20" | 20" × 20" |
| Outlet Duct | 16" × 16 1/2" | 16" × 20" |
| Inlet Duct | 19" × 15 1/8" | 19" × 19 1/8" |
| Weight | 99 lbs | 120 lbs |
🛡️ Warranty & Support
2-Year Warranty on all electrical and mechanical components.
Why Choose VenTum?
If you're looking for a compact, versatile, and energy-efficient air handler that delivers comfort through hydronic heating and cooling, VenTum provides a flexible solution for year-round HVAC applications.
VenTum: Smart Comfort. All Year Round.
