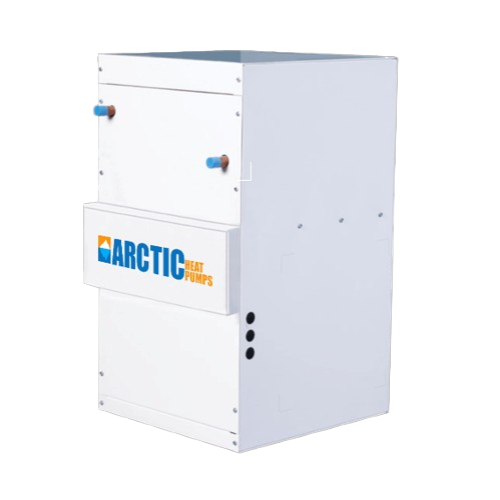

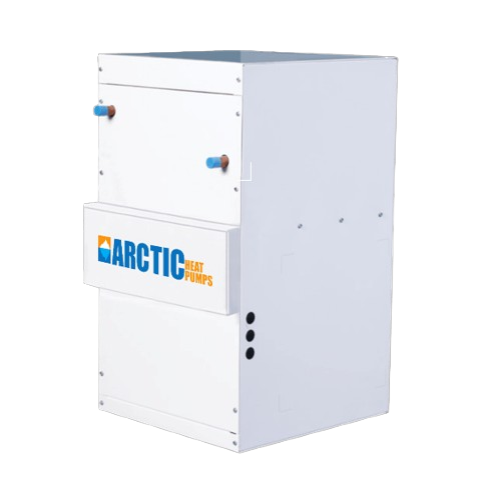

Arctic Air Handler LV-Z-1750-BU
Arctic Air Handler LV-Z-1750-BU is backordered and will ship as soon as it is back in stock.
LV-Z Air Handler Series – Energy Saving Products
Energy Saving Products, manufacturer of the Hi-Velocity System, offers the LV-Z Air Handler Series for both new construction and retrofit applications.
This forced-air unit uses Variable Speed Technology and is designed to provide flexible hydronic heating and cooling options for conventional duct systems.
General Features
- Compatible with boilers, dual-purpose hot water heaters, and heat pumps for conventional duct systems.
- Supports cooling through chilled-water or refrigerant coils.
- Higher static-pressure capability helps maintain airflow on longer duct runs.
- Suitable for both new construction and retrofit installations.
- Powder-coated cabinets available in highboy, horizontal, or counter-flow configurations.
- Uses off-the-shelf components intended to simplify service and maintenance.
- Single-side access design simplifies field service and component replacement.
- CSA and CE approved.
- Water heating coils are Warnock Hersey accepted for potable water service.
Shipping Dimensions & Weight
| Shipping Height | 42" |
|---|---|
| Shipping Width | 30" |
| Shipping Depth | 26" |
| Shipping Weight | 152 lbs |
Specifications
| Rated CFM @ 0.6" E.S.P. | 2000 |
|---|---|
| Voltage | 115/230/1/50/60 F.L.A. 8 amp |
| Nominal Operating Amperage | 8 Amps |
| Integral Surge and Fuse System | Yes |
| Horsepower – Nominal Watts | 3/4 hp – 695 W |
| Motor RPM | Variable |
| Supply Air Size | 22.5" x 22.5" |
Arctic Air Handler LV-Z-1750-BU
Arctic Air Handler LV-Z-1750-BU is backordered and will ship as soon as it is back in stock.
