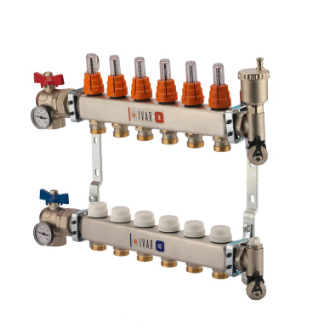

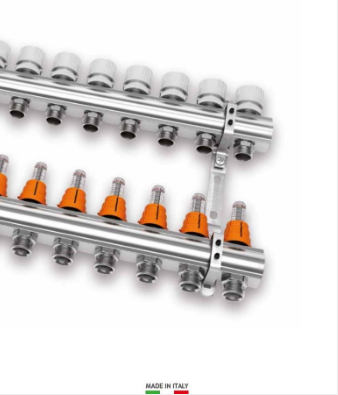

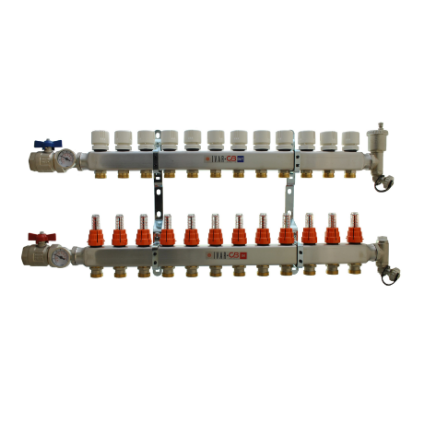

IVAR Radiant Floor Heating Manifold 1" x 12 Ports – Made in Italy
The IVAR Radiant Floor Heating Manifold (1" x 12 Ports) is a premium, Italian-engineered solution for radiant heating and cooling systems. Designed for precision calibration, durability, and easy installation, this stainless steel manifold comes fully assembled and ready to mount — making it the most complete radiant manifold package available.
🌡️ Fully Equipped & Easy to Install
-
Pre-assembled on sturdy mounting brackets for quick installation.
-
Includes supply and return isolator valves with integrated thermometers for accurate temperature monitoring.
-
Supply header features flow gauges for simplified system balancing.
-
Return header equipped with manual shut-off valves, compatible with electro-thermal actuators for automatic temperature control.
-
Two automatic air vents and dedicated fill/purge ports with ball valves for fast, reliable system purging.
🔧 Technical Features
-
Port Size: 1" NPT connections
-
Number of Ports: 12
-
Max Operating Temperature: 90°C (194°F)
-
Max Operating Pressure: 10 bar (145 PSI)
-

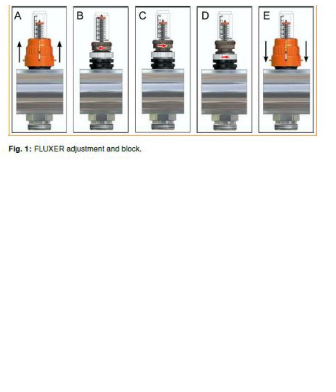

Flow Meter Adjustment Range: 0 – 1.3 GPM
-
Flow Precision: ±10%
🛠️ Premium Materials
-
Manifold Body: Stainless Steel AISI 304
-
Brass Components: CW617N (UNI EN 12165)
-
O-Rings: EPDM for long-lasting sealing and durability.
🏠 Applications
-
Hydronic radiant floor heating.
-
Radiant floor cooling systems.
-
Residential and light commercial hydronic projects requiring precision flow control.
✅ Why Choose IVAR Manifolds?
-
Made in Italy – trusted global leader in hydronic system components.
-
Pre-assembled package eliminates confusion and missing parts.
-
Flow gauges and thermometers for precise calibration.
-
Durable stainless steel and brass construction ensures reliability.
-

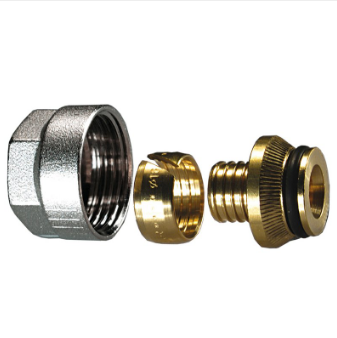

Compatible with PEX connection fittings (sold separately).
👉 The IVAR Radiant Floor Heating Manifold 1" x 12 Ports delivers unmatched quality, precision, and ease of installation — making it the ideal choice for professional-grade radiant heating and cooling systems.
