High Wall Fan Coil - Low Temperature Water Fan Coil

HW Model Fan Coils – High Wall Hydronic Heating & Cooling

Ultra-Slim, Wall-Mounted Climate Control for Energy-Efficient Comfort

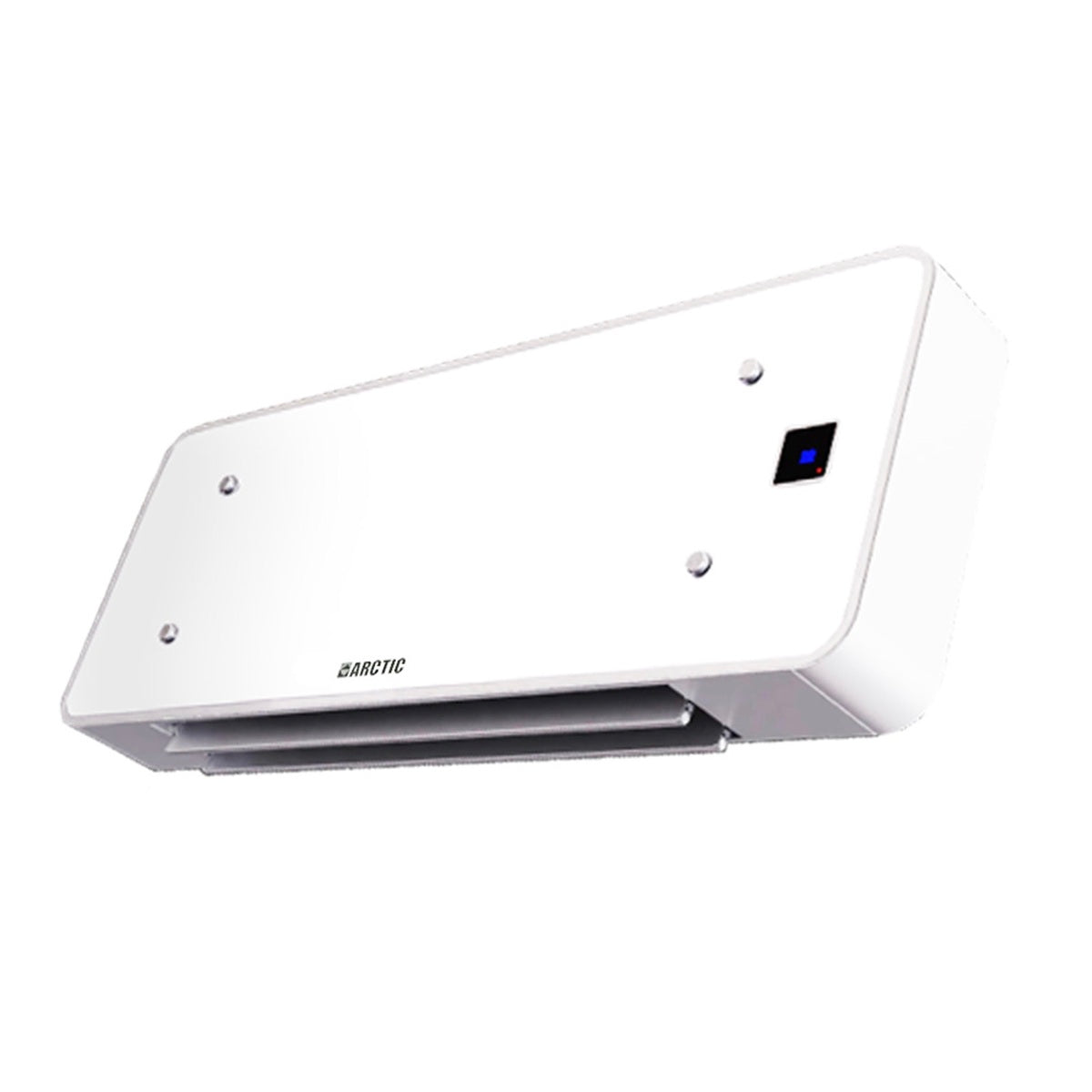

The HW (High Wall) Model Water Fan Coil is a premium wall-mounted solution for low-temperature hydronic heating and cooling. Designed for modern homes, apartments, and light commercial spaces, this space-saving unit provides quiet, powerful performance and zoned climate control using low supply water temperatures. With its sleek tempered glass face, ultra-thin profile, and advanced DC inverter motor, the HW model combines form and function in one high-efficiency package.

🔥 High Wall Design, Low Temp Performance

The HW Model is optimized for high-efficiency hydronic systems, offering exceptional heating and cooling output—even at low water temperatures as low as 35°C (95°F).

• Perfect for pairing with heat pumps or boilers

• Low-temperature water supply = reduced energy consumption

• BTU output from 8,670 to 19,550 BTU/h

• Ideal for energy-conscious residential HVAC systems

🧱 Slim & Stylish Wall-Mounted Installation

Engineered to be mounted high on the wall, the HW Model is designed to blend seamlessly into any room while saving valuable floor space.

• Just 12 cm deep—ultra-thin and unobtrusive

• Elegant front panel made of tempered glass

• Wall-mounted design for space efficiency and visibility

• Suitable for bedrooms, living rooms, condos, and offices

⚡ Advanced DC Inverter Motor + Smart LCD Control

Enjoy enhanced comfort and system control with an ultra-efficient DC inverter fan motor and a built-in LCD display for real-time monitoring.

• Variable speed fan for optimized airflow and low noise

• LCD screen displays system status and settings

• Articulating air flaps allow for directional airflow


🏠 Sized for Modern Living Spaces

Available in three model sizes: 1.5 kW / 2.5 kW / 3.5 kW, the HW fan coils offer flexible options for small, medium, and larger rooms.

• Great for bedrooms, offices, and open living spaces

• Cooling capacity up to 5,720 W (19,550 BTU/h)

• Water flow rate up to 8.6 L/min

• Quiet operation ranging from just 22 to 42 dB(A)

💡 Efficient Design, Fast Installation

Designed with contractors and homeowners in mind, the HW Model installs quickly with minimal disruption and is virtually maintenance-free.

• Factory-assembled for fast wall-mounting

• Hydronic-only (no refrigerant)—eco-friendly and safe

• Pressure-tested and rated for low-pressure systems

• Smart design supports top and bottom air venting

🛠️ Core Features Include:

• DC inverter motor for energy-efficient operation

• Built-in LCD control panel

• Tempered glass front casing

• High-wall mounting configuration

• Articulating air dampeners

• Slim 12 cm casing depth

• Quiet performance (22–42 dB)

• Models: 1.5 / 2.5 / 3.5 kW

Choose the HW High Wall Fan Coil for elegant, efficient, and whisper-quiet hydronic heating and cooling—perfect for energy-smart building designs and retrofits.

Warranty:

1 Year Compressor - 2 Years Parts

Technical Documents:

• Brochure
• Manual
• Warranty
