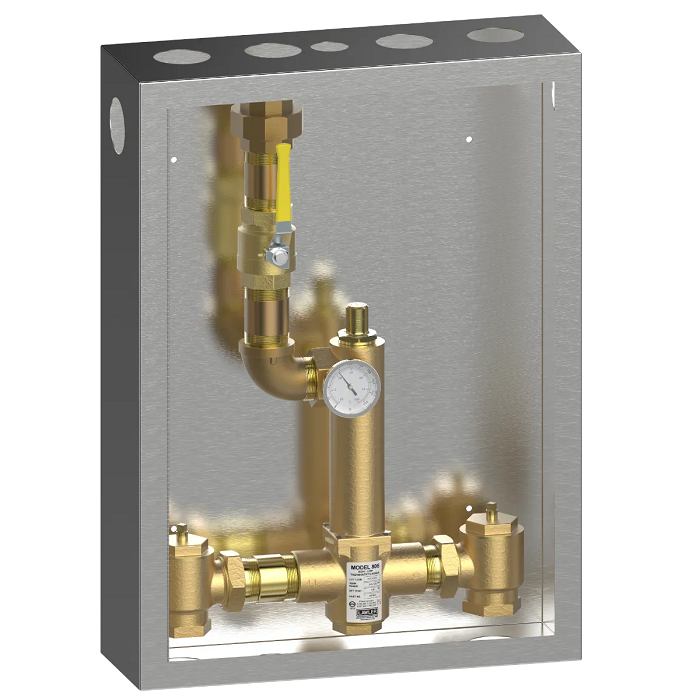

Lawler 86106 Cabinet With 805 High-Low Mixing Valves
Lawler 86106 Cabinet With 805 High-Low Mixing Valves - Carbon Steel / Rough Brass / Recessed is backordered and will ship as soon as it is back in stock.
Lawler's 86106 Cabinet with 805 High-Low Thermostatic Mixing Valve provides tempered water over a wide range of flows in a single valve unit. Ideally suited for institutional and commercial applications such as group showers, schools, hotels, hospitals, prisons, and nursing homes. The 805 will provide from 5 to 200 gpm @ 45 psi (1/2 gpm when properly installed in a recirculated system). This valve provides three-way protection from scalding upon: 1) failure of the thermostat, 2) shut-off of hot water, or 3) shut-off of cold water. This one piece, single body valve contains a liquid filled thermostat, a stainless steel piston and liner, and is ASSE 1017 and CSA B125.3 approved. This single valve is easier to install, easier to maintain and more cost efficient than multi-valve systems on the market.
Specifications:
| Series: 800 |
| Valve: 805 |
| Configuration: Standard |
| Application: Master Controller |
| Certification/s: ASSE 1017, CSA B125.3, Lead Free |
| Connection Type: NPT |
| Inlet Connection Size: 2" |
| Outlet Connection Size: 2" |
| Min Flow: 5 GPM |
| Min Flow with Recirculation: 1/2 GPM" |
| Rated Flow at 10 PSI: 96 GPM" |
| Rated Flow at 45 PSI: 200 GPM" |
| Temperature Range: 90°F – 120°F |
| Weight: 130 lbs |
| Part Number: 86106 |
Documents and guides:
Lawler 86106 Cabinet With 805 High-Low Mixing Valves
