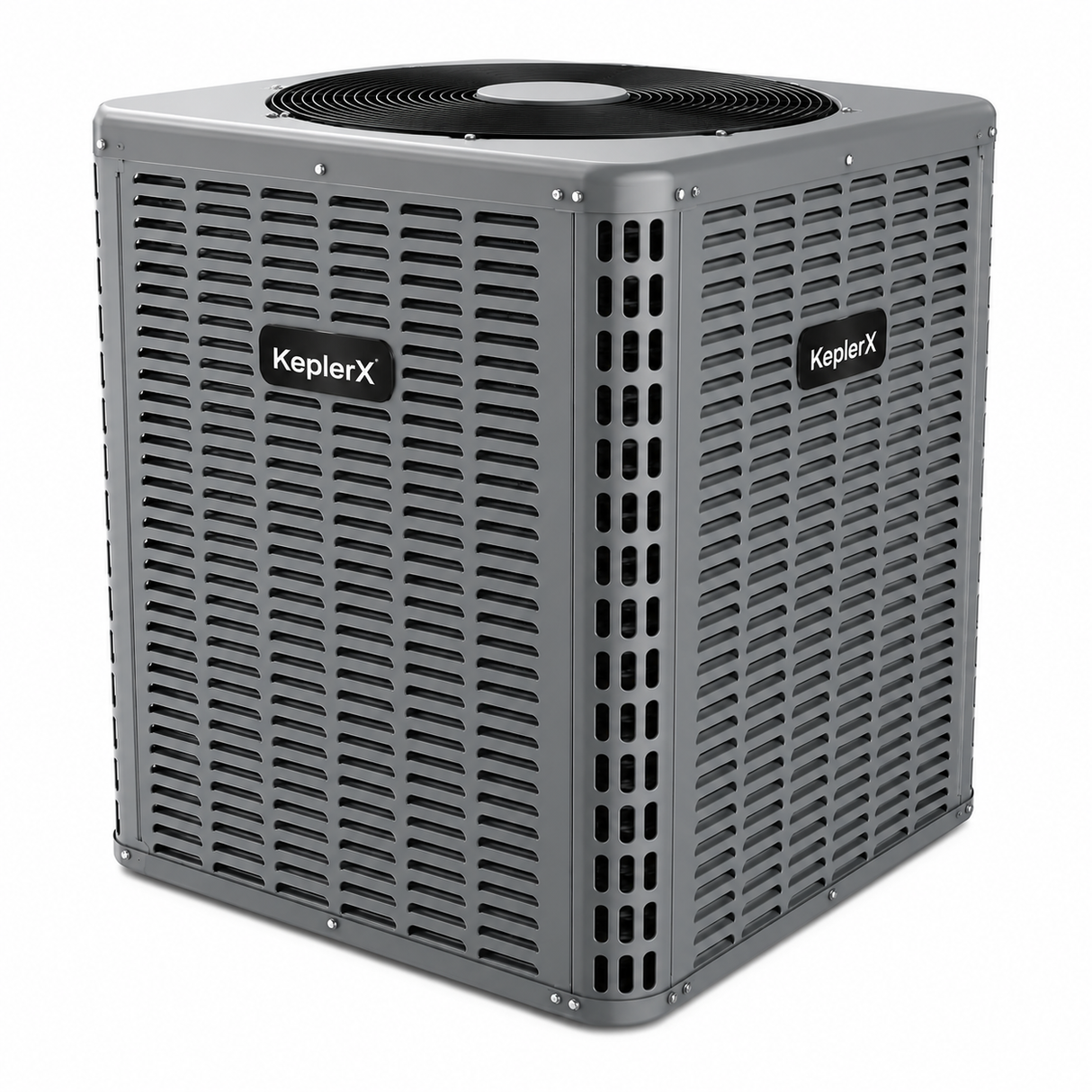

KeplerX 460V 3Phase R32 Condensing Unit
KeplerX 460V 3Phase R32 Condensing Unit is backordered and will ship as soon as it is back in stock.
KeplerX 460V 3Phase R32 Condensing Unit
Model: K15HVC60W4V
Capacity: 5.0 Tons
Certification: AHRI & ETL Listed
The KeplerX K15HVC60W4V is a 5 Ton Top Discharge 460V/3Phase Condensing Unit, engineered for reliable cooling-only performance in commercial and light industrial applications. Utilizing R32 refrigerant, a GMCC scroll compressor, and a Green-Intelligence AC fan motor, this system delivers dependable, energy-efficient cooling with smooth, quiet operation.
⚙️ Performance Specifications
| Specification | K15HVC60W4V |
|---|---|
| Cooling Capacity (BTU/h) | 55,000 |
| Power Input (W) | 4,649 |
| SEER2 (AHRI Certified) | 13.8 |
| EER2 (BTU/W·h) | 11.2 |
| Power Supply | 460V / 3Ph / 60Hz |
| Compressor Type | GMCC Scroll |
| Compressor Capacity (BTU/h) | 54,200 |
| Rated Compressor Current (RLA) | 6.8 A |
| Locked Rotor Amps (LRA) | 135 A |
| Max Current | 50 A |
| Max Input | 7,300 W |
This high-efficiency condensing unit offers consistent performance and low energy consumption, designed for stable operation under demanding conditions.
🌬️ Airflow & Sound
| Specification | K15HVC60W4V |
|---|---|
| Outdoor Air Flow | 4,000 CFM |
| Outdoor Sound Pressure Level | 63 dB(A) |
| Outdoor Fan Motor Type | Green-Intelligence AC |
| Motor Input / Output | 370W / 230W |
| Fan Speed | 1100 RPM |
| Full Load Amps (FLA) | 1.4 A |
The hydrophilic aluminum fin coil and top discharge design provide efficient heat transfer, while the advanced AC fan motor ensures optimal airflow and quiet operation.
❄️ Refrigeration System
| Specification | K15HVC60W4V |
|---|---|
| Refrigerant Type | R32 |
| Refrigerant Charge | 123.5 oz (3.50 kg) |
| Refrigerant Oil | 1450 ml |
| Refrigerant Piping | 3/8" Liquid • 7/8" Gas |
| Max Refrigerant Pipe Length | 150 ft |
| Max Height Difference | 60 ft |
| Design Pressure | 4.1 / 1.6 MPa |
| Max Pressure | 6.4 MPa |
The R32 system provides high efficiency with a reduced environmental footprint, and the inner-grooved copper tubing enhances refrigerant flow and system reliability.
📏 Dimensions & Weights
| Specification | K15HVC60W4V |
|---|---|
| Outdoor Dimensions (W×D×H) | 29.1" × 29.1" × 32.9" (740×740×835 mm) |
| Packing Dimensions (W×D×H) | 30.5" × 30.5" × 34.1" (775×775×865 mm) |
| Net / Gross Weight | 212 / 222 lbs (96 / 100.5 kg) |
Compact, durable construction ensures easy installation and long service life in commercial and industrial environments.
🚛 Shipping & Logistics
| Container Type | Units per Container |
|---|---|
| STD 20GP / 40GP / 40HQ | 42 / 90 / 135 |
💡 Key Advantages
-
High-efficiency 13.8 SEER2 performance with R32 refrigerant
-
Reliable GMCC scroll compressor for consistent operation
-
Durable hydrophilic aluminum fin coil for enhanced heat transfer
-
Quiet top-discharge design with 4000 CFM airflow
-
Compact, corrosion-resistant build for long service life
-
Certified by AHRI & ETL for performance and safety
