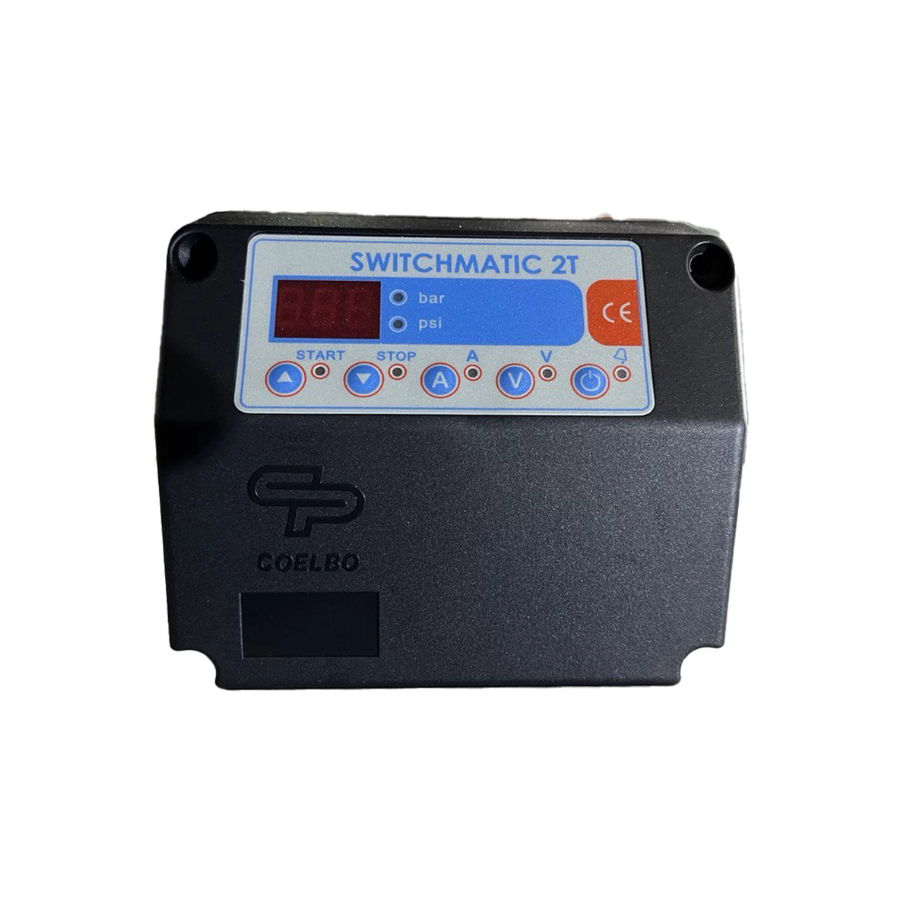

Gol SWITCHMATIC 2T NPT 230-400 3Ph

Gol SWITCHMATIC 2T NPT 230‑400V 3‑Phase Electronic Pressure Switch – Patented Design with Integrated Digital Manometer

The Gol SWITCHMATIC 2T is a three‑phase electronic pressure switch designed for efficient and precise pump management. Featuring an integrated digital manometer, it automatically controls the start and stop of three‑phase pumps up to 4 kW (5.5 HP). Cut‑in and cut‑out pressures can be easily configured using the intuitive control panel.

🚀 Key Advantages:

• Suitable for single installations or synchronized dual-pump systems operating in cascade with alternating sequences

• Real-time current and voltage monitoring for optimal pump protection

• Comprehensive safety functions including overcurrent protection, voltage range monitoring, dry-running protection, and fast-cycling prevention

• Patented design for reliable performance and long-term durability

🔧 Operating Features:

• Multiple operation modes: differential, inverted, and synchronized

• ART function (Automatic Reset Test) – automatically attempts pump restart after a dry-run stop when water supply may have been restored

• Sleep mode for low energy consumption

• Integrated pressure gauge – instant bar and psi display

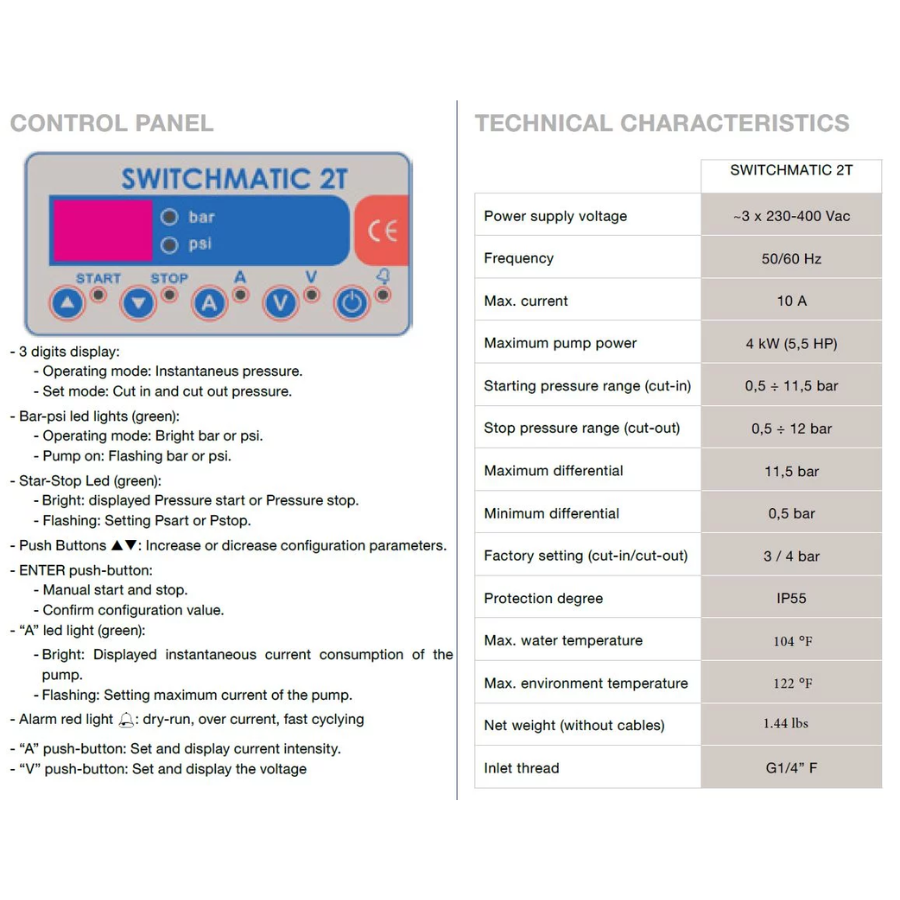

• User-friendly control panel – 3-digit display, LED indicators, and pushbuttons

• Instantaneous current measurement – ensures overload and dry-run protection

• Rapid-cycle alarm – detects and delays starts when the hydropneumatic tank loses air

• Overload protection and alarm logging – stores operating hours, start counters, and alarm history

• Manual start push button for convenient operation

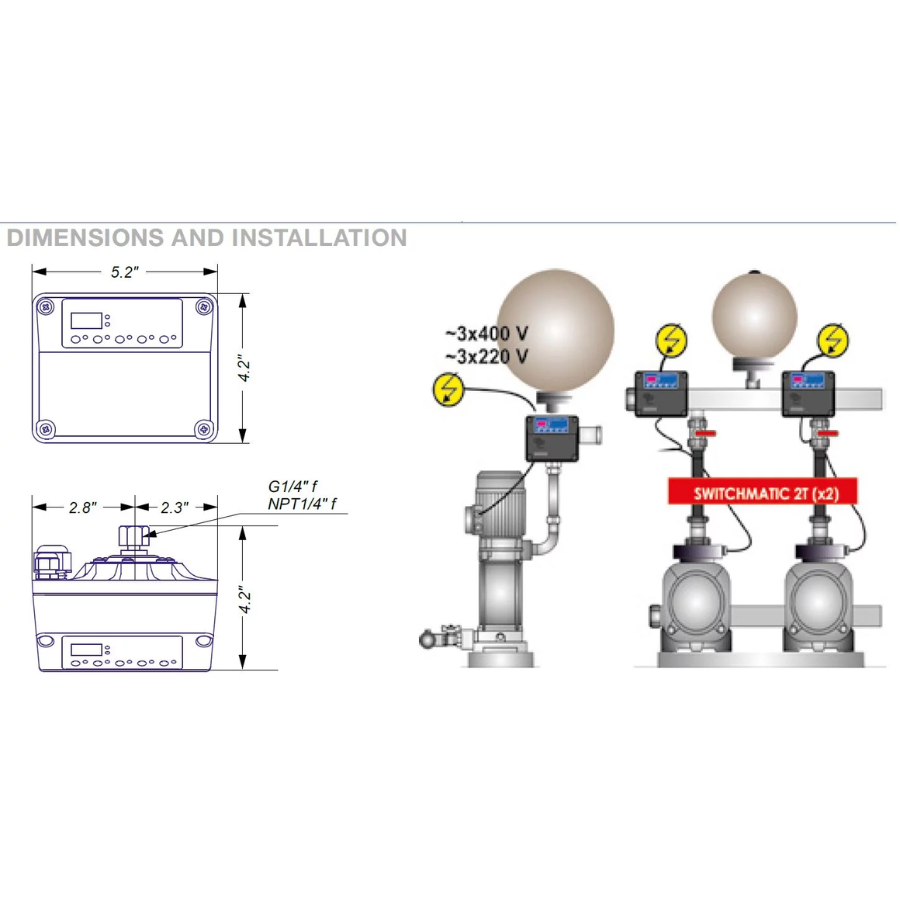

Technical Documents:

• Brochure
