Gol Pumps 2SDM0.7/23 – Compact & Efficient 2" Submersible Pump (3-Wire)

The Gol Pumps 2SDM0.7/23 is a compact, high-performance 2" submersible pump designed for clean water transfer in gardens, small wells, residential water systems, and light irrigation. Built with corrosion-resistant stainless steel components and a durable single-phase motor, this pump delivers smooth, reliable performance in tight spaces. Its slim 2" diameter makes it ideal for narrow wells and vertical installations.

⚙️ Key Features:

• Available in 110V or 220V | 60 Hz | 3-Wire connection

• 0.25 HP (0.18 kW) rated / 0.33 HP (0.25 kW) peak power

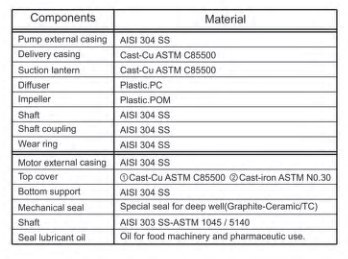

• Stainless steel pump body, support, shaft, and strainer (AISI 304 SS) for superior corrosion resistance

• Durable plastic impeller (POM) for efficient water flow

• Graphite/Ceramic mechanical seal with NBR rubber for long seal life

• IP68 rated for continuous submersible use

• 3/4" NPT outlet size

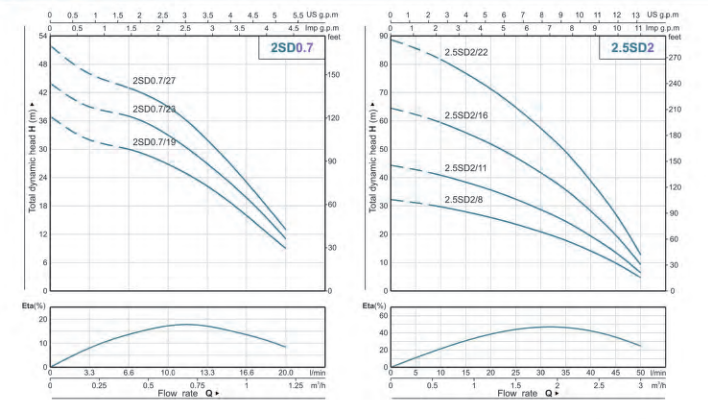

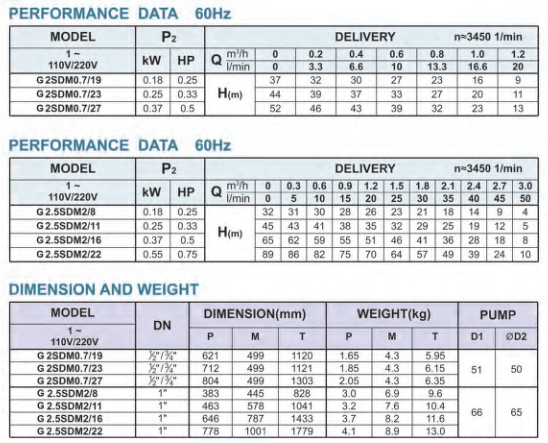

• Max head up to 120 ft | Flow rate up to 5.2 GPM

💧 Ideal Applications:

• Garden irrigation and landscaping

• Residential water supply from small wells

• Clean water transfer and circulation

• Light commercial and agricultural water systems

🌡️ Technical Highlights:

• Fluid temperature up to 35°C (95°F)

• Ambient temperature tolerance up to 40°C (104°F)

• Pressure rating PN 16

• IP68 waterproof protection class

The Gol Pumps 2SDM0.7/23 offers dependable, compact, and efficient performance for clean water pumping needs — perfect for narrow spaces and long-term reliability.

Warranty:

1 Years (according to our general sales conditions).

Technical Documents:

• Brochure
