Gol Thin Submersible Pumps - 3" Submersible Pump 3wire 3SDM0 2/30 110V & 220V 60 Hz

Gol Pumps 3SDM2/30 – High-Performance 3" Submersible Pump (3-Wire)

The Gol Pumps 3SDM2/30 is a top-tier, slim-profile 3" submersible pump engineered for deep well and maximum lift clean water applications. Built from corrosion-resistant stainless steel and powered by a strong single-phase motor, this pump delivers exceptional water delivery performance, even in the most demanding residential, agricultural, and light commercial environments.

⚙️ Key Features:

• Available in 110V or 220V | 60 Hz | 3-Wire connection

• 2 HP (1.5 kW) rated power

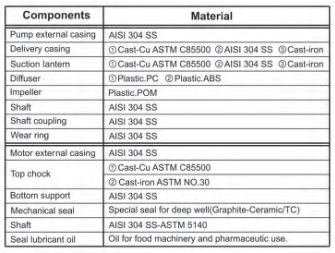

• Stainless steel pump body, support, shaft, and strainer (AISI 304 SS) for superior corrosion resistance

• Durable POM impeller for efficient water flow and extended service life

• Graphite/Ceramic mechanical seal with NBR rubber for enhanced durability

• IP68 rated for continuous submersible operation

• 1-1/4" NPT outlet for standard piping connections

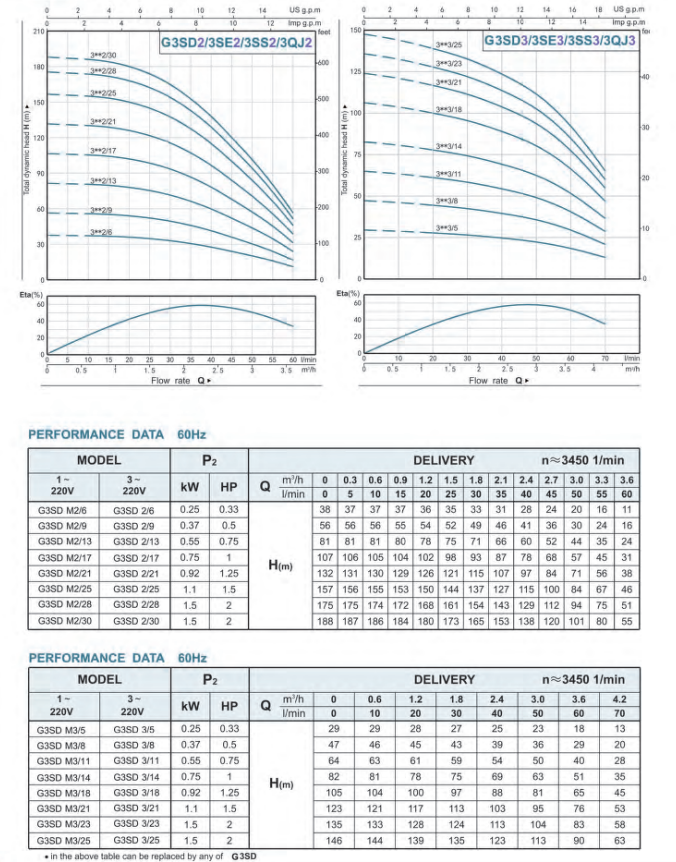

• Max head up to 280 ft | Flow rate up to 15.7 GPM

💧 Ideal Applications:

• Deep well water supply for homes, farms, and estates

• High-lift garden and lawn irrigation

• Clean water transfer and circulation

• Light agricultural and commercial water systems

🌡️ Technical Highlights:

• Fluid temperature up to 35°C (95°F)

• Ambient temperature tolerance up to 40°C (104°F)

• Pressure rating PN 16

• IP68 waterproof protection class

The Gol Pumps 3SDM2/30 delivers the ultimate combination of high lift, durability, and efficiency — perfect for the deepest wells and the most demanding clean water pumping tasks.

Warranty:

1 Years (according to our general sales conditions).

Technical Documents:

• Brochure
