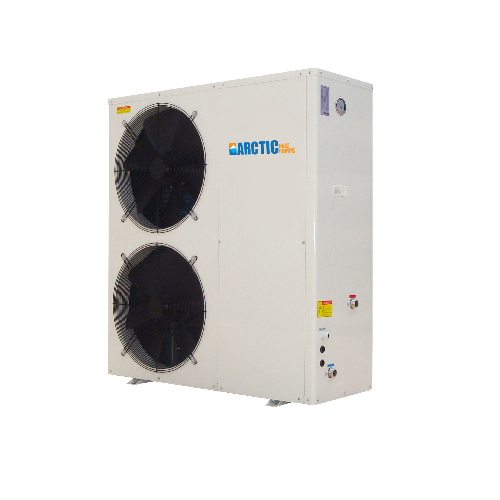

Arctic Titanium Heat Pump for Swimming Pools and Spas - 060ZA/B
Most Items Ship Same Day
(Warranty, Return and Refunds)
Chiller and Heater in one unit
While hot tub users most often reference the heating requirements, the Arctic Heat Pump is also a chiller if needed. That’s right...It can heat and cool based on a simple controller selection. Ideal for hot climates that need a retreat from the hot summer heat! A cold water plunge is a must for Sauna owners. Now you can quickly change your hot tub to a cold plunge tub! Cold water therapy has many health benefits and is growing in popularity in North America as we discover what the Nordic Culture has practiced for centuries.
Heating & Cooling
The Arctic 060ZA/B Heat Pumps works down to -4°F (-20°C). This air to water heat source is the most efficient cold weather heat pump on the market. Heats and cools with over 80% savings of traditional heating equipment. This unit is cable of producing up to 25.8 Kw or 88,000 BTU of heat energy. No other pool or spa heat pump on the market will outperform the Arctic 060ZA/B in colder weather. This allows you to open your pool earlier and close it later. It is also ideal for energy savings for spas and hot tubs. Working up to 104 F even in 20 F conditions! The Arctic 060ZA/B is great heat pump for most pools.
- Heat Pump for hot tubs, spas and smaller pools or swim spas
- Easy to install with no refrigeration mechanic needed
- Vibration pads included
- Drain pan and compressor low temp protection
- Hot gas defrost
- Drain Pan Freeze Protection for cold weather
- TUV Rheinland certified for installation in North America
- Three modes (heating, cooling, auto)
- Includes Heat Pump Digital Controller
- WiFi Remote Control Option
- Double Rotor DC inverter Compressor
- Operating Temperature Range -4°F (-20°C) to 113°F (45°C)
- Spiral Titanium Heat Exchanger
- Ultra Quite DC Brushless Fan Motor
- Sound Insulation
- High Efficiency Fin Heat Exchanger
How it works
The Arctic Heat Pump harness the energy found in the air. By using an oversized evaporator the energy is removed and transferred to the refrigeration. A compressor compresses the gas causing its temperature to increase. The hot gas then passes through a titanium pool heat exchanger where it is transferred directly to the pool or spa water. In cooling mode the unit reverses direction and chills the pool water by removing the heat from the titanium heat exchanger and discharging it out the evaporator.
The unit consumes electricity at a rate of only 1/3 to 1/5 of the heating capacity that it produces. The result is energy savings as high as 80% compared to traditional electric or gas pool or spa heaters. Built in hot gas defrost and drain pan/compressor freeze protection for cold weather performance.
- 1.5" water connections
- Max Amps 25.9
- 220-240 VAC
- Output 25.8 Kw (88,000 BTU)
- Weight 288 LBS (131 Kg)
- Flow rate 27.10 GPM (pool pump sold separately)
- 51" high x 21" wide x 52" tall
- 1 year parts warranty - 2 year compressor warranty (Extended Warranty Available)

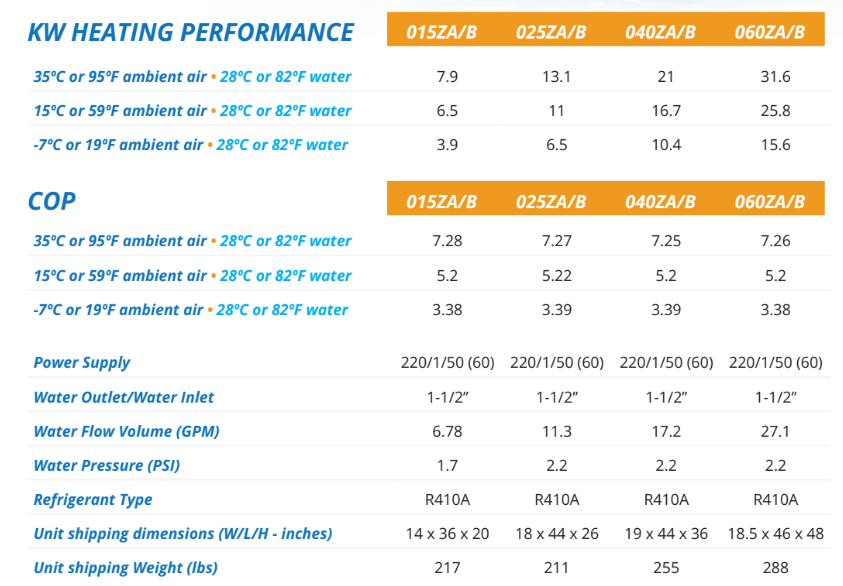

| Model | ARCTIC | 25ZA/B | 040ZA/B | 060ZA/B | |
| Power Supply | V/PH/Hz | 220/1/50 (60) | 220/1/50 (60) | 220/1/50 (60) | |
| Heating Capacity Ranger |
kW | 2.75~11 | 4.38~17.5 | 6.45~25.8 | |
| BTU/h | 9383~37532 | 14928~59710 | 22007~88030 | ||
| COP Ranger | W/W | 3.6~13 | 3.6~13 | 3.6~13 | |
| Heating Capacity (1) | kW | 11.0 | 17.5 | 25.8 | |
| BTU/h | 37532 | 59710 | 88030 | ||
| COP (1) A:30/W:28 | W/W | 6.2 | 6.2 | 6.2 | |
| Input Power (1) | kW | 1.77 | 2.82 | 4.16 | |
| Input Current (1) | A | 8.1 | 12.8 | 18.9 | |
| Heating Capacity (2) | kW | 11.0 | 17.5 | 25.8 | |
| BTU/h | 37532 | 59710 | 88030 | ||
| COP (2) A:24/W:28 | W/W | 5.60 | 5.60 | 5.60 | |
| Input Power (2) | kW | 1.96 | 3.13 | 4.61 | |
| Input Current (2) | A | 8.9 | 14.2 | 20.9 | |
| Heating Capacity (3) | kW | 11.0 | 17.5 | 25.8 | |
| BTU/h | 37532 | 59710 | 88030 | ||
| COP (3) A:15/W:28 | W/W | 4.8 | 4.8 | 4.8 | |
| Input Power (3) | kW | 2.29 | 3.65 | 5.38 | |
| Input Current (3) | A | 10.4 | 16.6 | 24.4 | |
| Heating Capacity (4) | kW | 10.0 | 16.7 | 23.5 | |
| BTU/h | 34120 | 56980 | 80182 | ||
| COP (4) A:7/W:28 | W/W | 4.2 | 4.2 | 4.2 | |
| Input Power (4) | kW | 2.38 | 3.98 | 5.60 | |
| Input Current (4) | A | 10.8 | 18.1 | 25.4 | |
| Heating Capacity (5) | kW | 9.2 | 14.4 | 21.0 | |
| BTU/h | 31390 | 49133 | 71652 | ||
| COP (5) A:0/W:28 | W/W | 3.72 | 3.72 | 3.72 | |
| Input Power (5) | kW | 2.47 | 3.87 | 5.65 | |
| Input Current (5) | A | 11.2 | 17.6 | 25.7 | |
| Heating Capacity (6) | kW | 7.5 | 12.0 | 18.0 | |
| BTU/h | 25590 | 40944 | 61416 | ||
| COP (6) A:-7/W:28 | W/W | 3.16 | 3.16 | 3.16 | |
| Input Power (6) | kW | 2.37 | 3.80 | 5.70 | |
| Input Current (6) | A | 10.8 | 17.3 | 25.9 | |
| Compressor | TWIN Rotary | TWIN Rotary | TWIN Rotary | ||
| Compressor Qty | 1 | 1 | 1 | ||
| Fan Qty | 1 | 1 | 1 | ||
| Noise | dB(A) | 52 | 54 | 54 | |
| Water Outlet/Water Inlet | inch | 1–1/2" | 1–1/2" | 1–1/2" | |
| Water Flow Volume | GPM | 11.30 | 17.20 | 27.10 | |
| Water Pressure Drop | PSI | 2.2 | 2.2 | 2.3 | |
| Fan Direction | horizontal | horizontal | horizontal | ||
| Refrigerant Type | R410A | R410A | R410A | ||
| Unit Net Dimensions (L/M/H) | mm | 1115/470/700 | 1115/470/945 | 1195/470/1285 | |
| Unit Shipping Dimensions (L/M/H) | mm | 1205/525/725 | 1205/525/975 | 1285/525/1315 | |
| Net Weight | kg | 90 | 108 | 121 | |
| Shipping Weight | kg | 96 | 116 | 131 |
WARRANTY:
1 year warranty on all parts and a 2 year warranty on the compressor. With this warranty you will get NO hassle next business day replacement (if shipping service and inventory permits). As a valued customer you will get technical support through the lifetime ownership of your product. Our Heat Pump warranty cover failures that occur during normal operational conditions or manufactures defects. It does not cover failure due to inappropriate operation such as incorrect installation or physical damage.
