SANC02 43SSAQB 43 Gallon Storage Tank
SANC02 43SSAQB 43 Gallon Storage Tank is backordered and will ship as soon as it is back in stock.

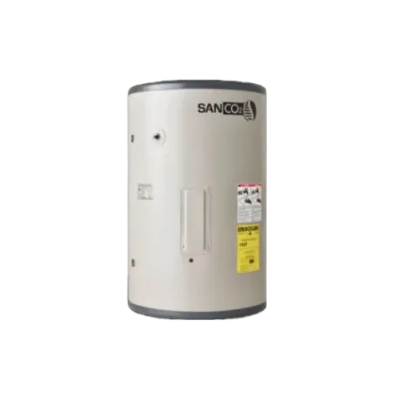

SANCO₂ ECO-43SSAQB – 43-Gallon Stainless Steel Storage Tank
The ECO-43SSAQB is a 43-gallon stainless steel storage tank designed for use with SANCO₂ GS5-45HPC and GS5-45HPC-D heat pumps. Its 316/444 stainless steel construction and R12 insulation support corrosion resistance and reduced stored-water heat loss.
This description covers the storage tank component. Heat pump efficiency, recovery, and first-hour ratings describe the complete matched system rather than the tank alone.
Construction & Specifications
| Specification | Details |
|---|---|
| Model | ECO-43SSAQB |
| Nominal Water Storage Volume | 43 gallons |
| Tank Material | Blend of 316/444 stainless steel |
| Exterior Jacket | Steel with baked-on powder coating |
| Insulation | Minimum 1⅞-inch polystyrene insulation, rated R12. |
| Empty Tank Weight | 88 lb |
| Standby Loss at 67°F Ambient | 73 Btu/h |
| Installation Location | Indoor; exterior installation only where ambient temperature remains above 34°F, as specified in the submittal. |
| Tank Clearance | 2 inches around the tank |
| Safety Certification | ETL and ETLc, as listed in the submittal |
Connections & Controls
| Connection / Feature | Details |
|---|---|
| Building Cold Water Inlet | ¾-inch female NPT |
| Building Hot Water Outlet | ¾-inch female NPT |
| Heat Pump Water Connections | ¾-inch female NPT |
| Tank-to-Heat-Pump Piping | ½-inch copper or PEX supply and return piping; reducing nipples are field supplied and installed. |
| Tank Temperature Sensor | Sensor installed in a well for compatible GS5 heat pump control. |
| Additional Thermowells | Two additional thermowells support compatible utility shed/load control arrangements using CTA-2045 / JA-13. |
| Pressure & Temperature Relief | Supplied with an ASME-certified relief valve, set at 150 psig and 210°F. |
| Mixing Valve | Factory-supplied, field-installed mixing valve with ¾-inch female NPT connections. The submittal specifies setting delivered water below 120°F. |
Residential Tank Warranty
For eligible residential domestic hot water installations, the manufacturer’s policy provides a 15-year limited tank warranty: ten years at full replacement value, followed by five years of prorated coverage.
Coverage is subject to purchase eligibility, application, installation requirements, exclusions, and all manufacturer policy conditions. Combined space-heating and domestic hot water applications have different terms. Review the policy before purchase.
