Sanco2  |  SKU: 91101-45190

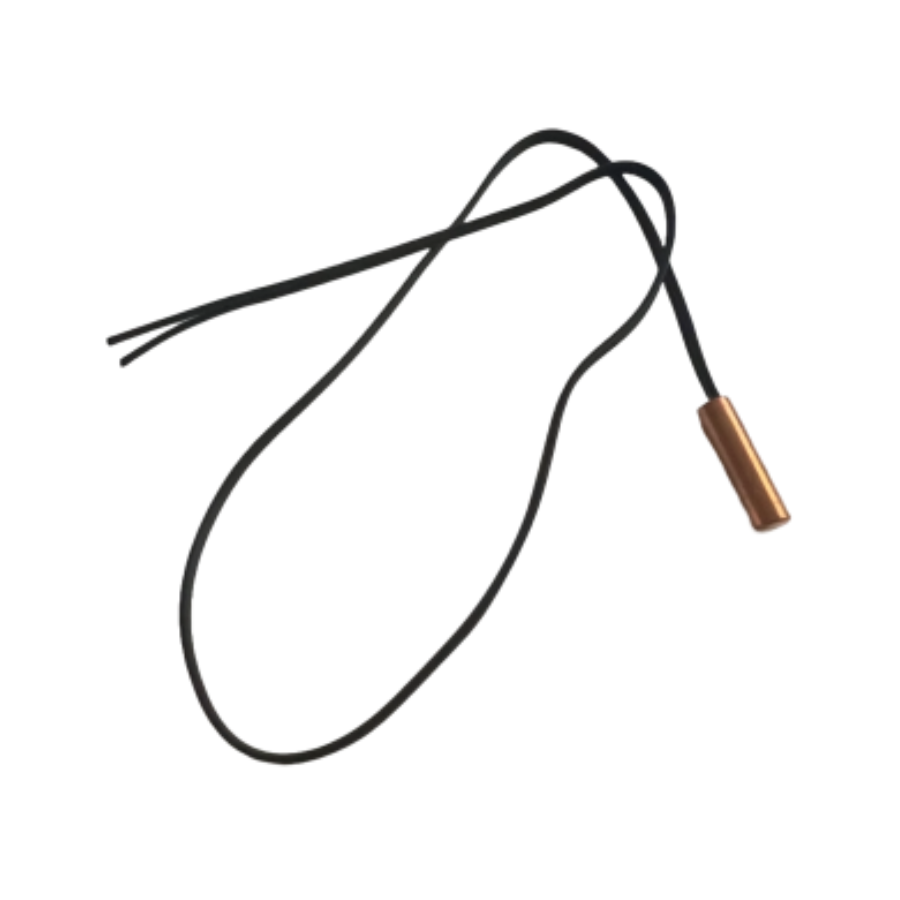

SANC02 Tank Sensor 91101-45190

Regular price $80.00
Shipping calculated at checkout.

SANCO₂ Tank Temperature Sensor – 91101-45190

The 91101-45190 Tank Temperature Sensor is a thermistor designed for GS4-45HPC, GS4-45HPC-D, GS5-45HPC, and GS5-45HPC-D heat pumps. Its copper sensing barrel fits into a dry thermal well to monitor storage tank water temperature.

One individual tank temperature sensor is required for each heat pump. Multiple heat pumps must not share a single sensor, because doing so alters the temperature signal and can cause operating issues.

Please Note: This item is not normally stocked and must be ordered in advance. Estimated lead time is 3–4 weeks. Contact us to confirm current availability and lead time.

Specifications

Specification Details
Part Number 91101-45190
Sensor Type Microchip thermistor
Compatible Heat Pumps GS4-45HPC, GS4-45HPC-D, GS5-45HPC, and GS5-45HPC-D
Specified Accuracy ±3%
Sensing Barrel Material Copper
Sensor Bulb Dimensions ¼-inch diameter × 1-inch length
Lead Construction Two 18 AWG leads, resin bonded to the sensing barrel
Lead Length 18¾ inches
Heat Pump Signal 5 VDC
Polarity Not polarity sensitive

Temperature / Resistance Reference

Temperature Resistance
50°F 20,500 Ω
68°F 12,500 Ω
86°F 8,100 Ω
104°F 5,300 Ω
122°F 3,600 Ω
140°F 2,500 Ω
150°F 2,070 Ω

Installation Considerations

Insert the sensor into a dry thermal well. The sensor submittal states that heat-transfer paste is not required. Strip the flying leads as needed for connection to the heat pump’s thermistor wiring.

Follow the applicable heat pump installation manual and the approved system control arrangement. Confirm sensor quantity and placement for the specific heat pump, tank, and controller configuration.
