Lawler 73000-10 802 Standard High-Low Mixing Valves
Lawler 73000-10 802 Standard High-Low Mixing Valves - Rough Bronze / 90°F – 120°F Standard is backordered and will ship as soon as it is back in stock.
Lawler 802 Model 73000-10 High-Low Thermostatic Mixing Valve
The Lawler 802 Model 73000-10 High-Low Thermostatic Mixing Valve is designed for commercial and institutional applications requiring tempered-water control across a wide range of flow rates.
With rated flow up to 80 GPM at 45 PSI, the 802 combines high-capacity mixing capability with a single-body valve design intended to simplify installation, maintenance, and service.
Key Features
- High-Low thermostatic mixing valve for master-controller applications.
- Rated flow up to 80 GPM at 45 PSI.
- Minimum flow of 2 GPM, or 1/2 GPM with recirculation.
- Three-way protection design intended to help manage overheating conditions associated with thermostat failure or hot- and cold-water supply interruption.
- Liquid-filled thermostat.
- Stainless-steel piston and liner.
- Single-body valve design intended to simplify installation and maintenance compared with multi-valve arrangements.
- Certified to ASSE 1017 and CSA B125.3.
Applications
- Group shower facilities.
- Schools.
- Hospitals.
- Hotels.
- Correctional facilities.
- Nursing homes.
- Other commercial and institutional plumbing systems.
Specifications
| Series | 800 |
|---|---|
| Valve | 802 |
| Configuration | Standard |
| Application | Master Controller |
| Certifications | ASSE 1017, CSA B125.3, Lead Free |
| Connection Type | NPT |
| Inlet Connection Size | 1" |
| Outlet Connection Size | 1-1/4" |
| Minimum Flow | 2 GPM |
| Minimum Flow with Recirculation | 1/2 GPM |
| Rated Flow at 10 PSI | 39 GPM |
| Rated Flow at 45 PSI | 80 GPM |
| Temperature Ranges |
110°F – 140°F 70°F – 100°F 90°F – 120°F |
| Weight | 21 lbs |
| Part Number | 73000-10 |

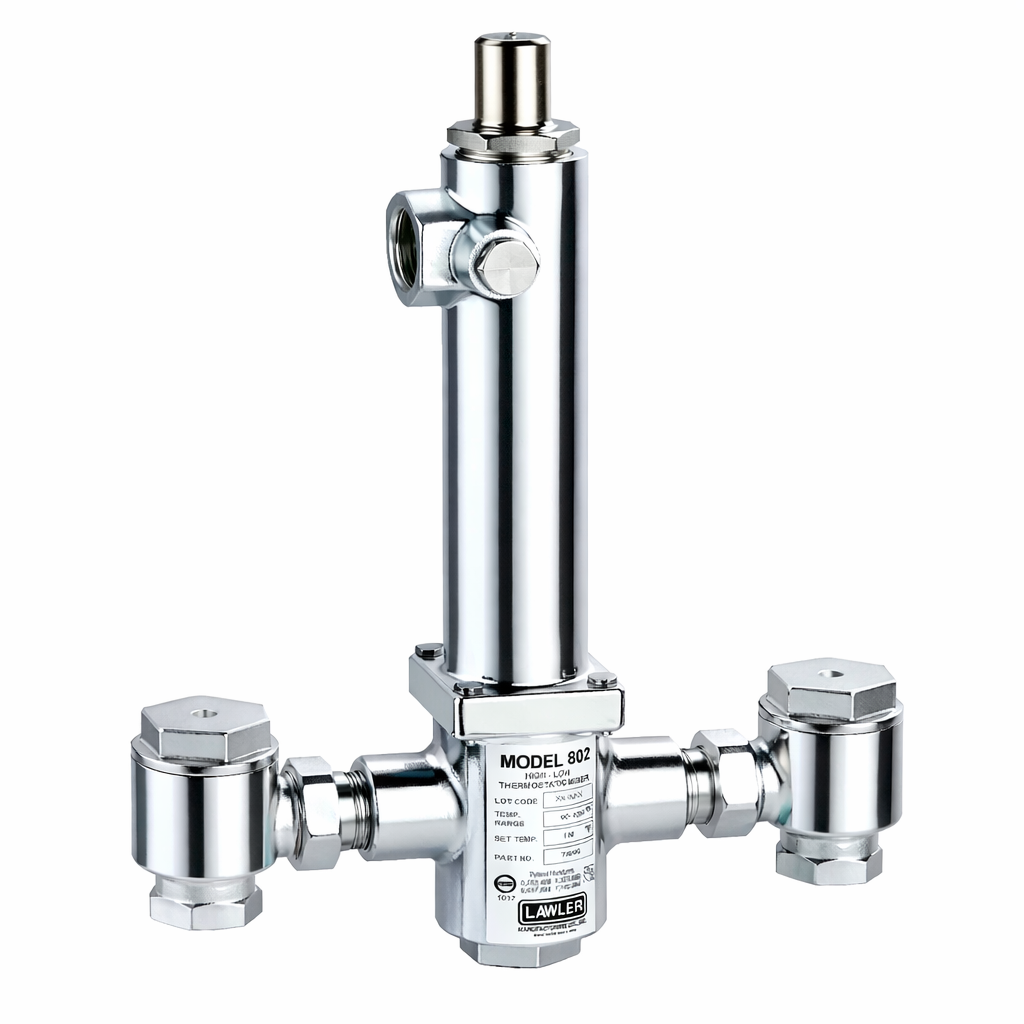

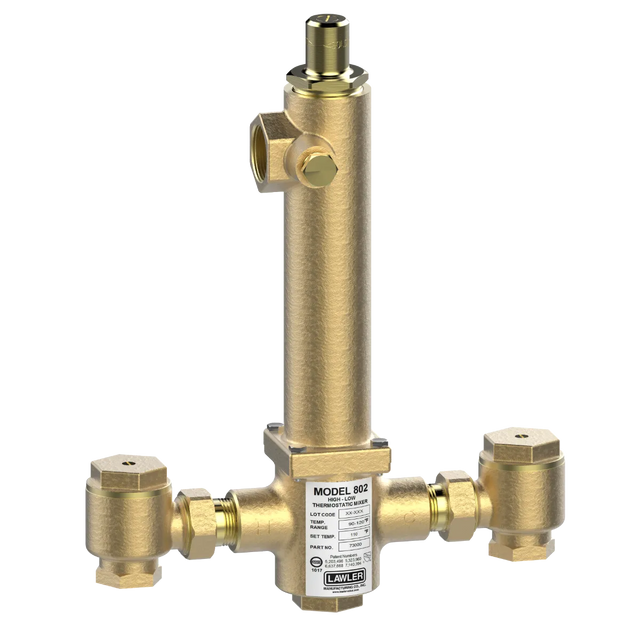

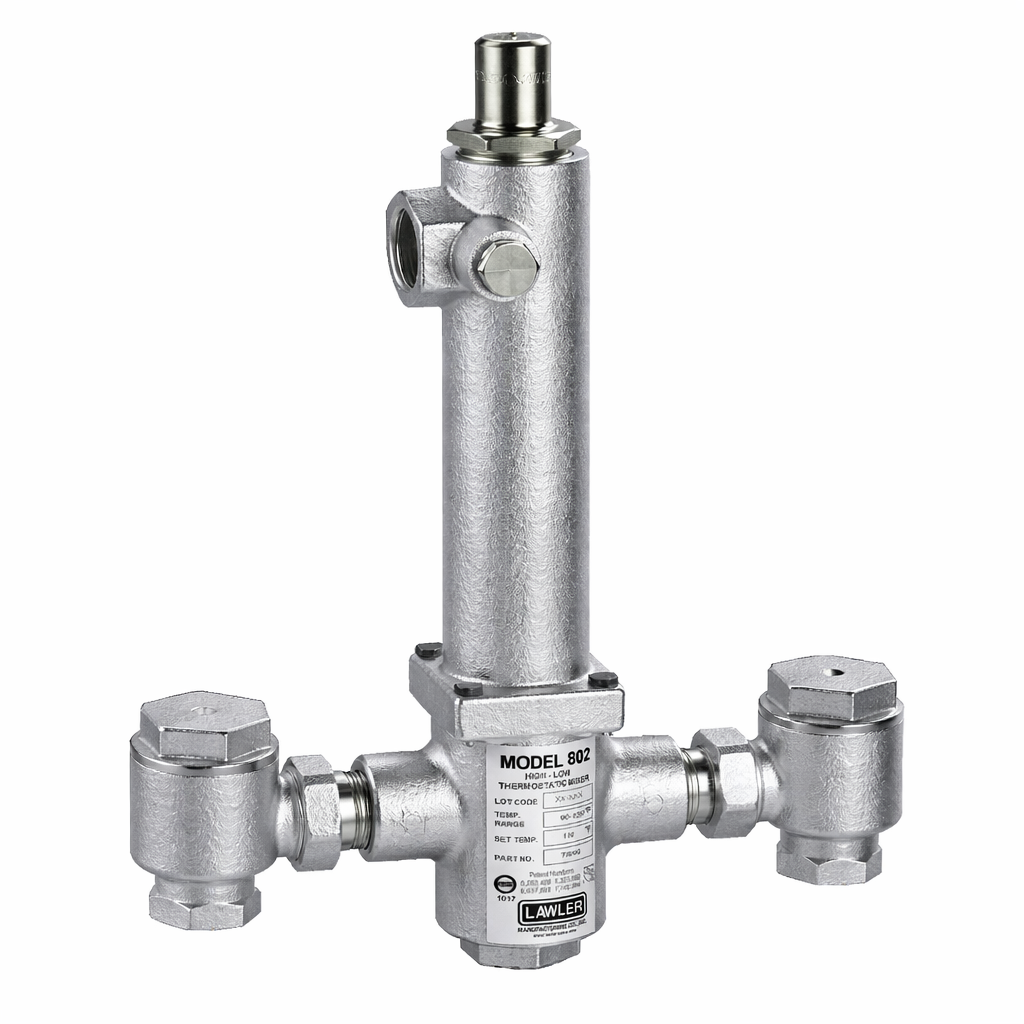

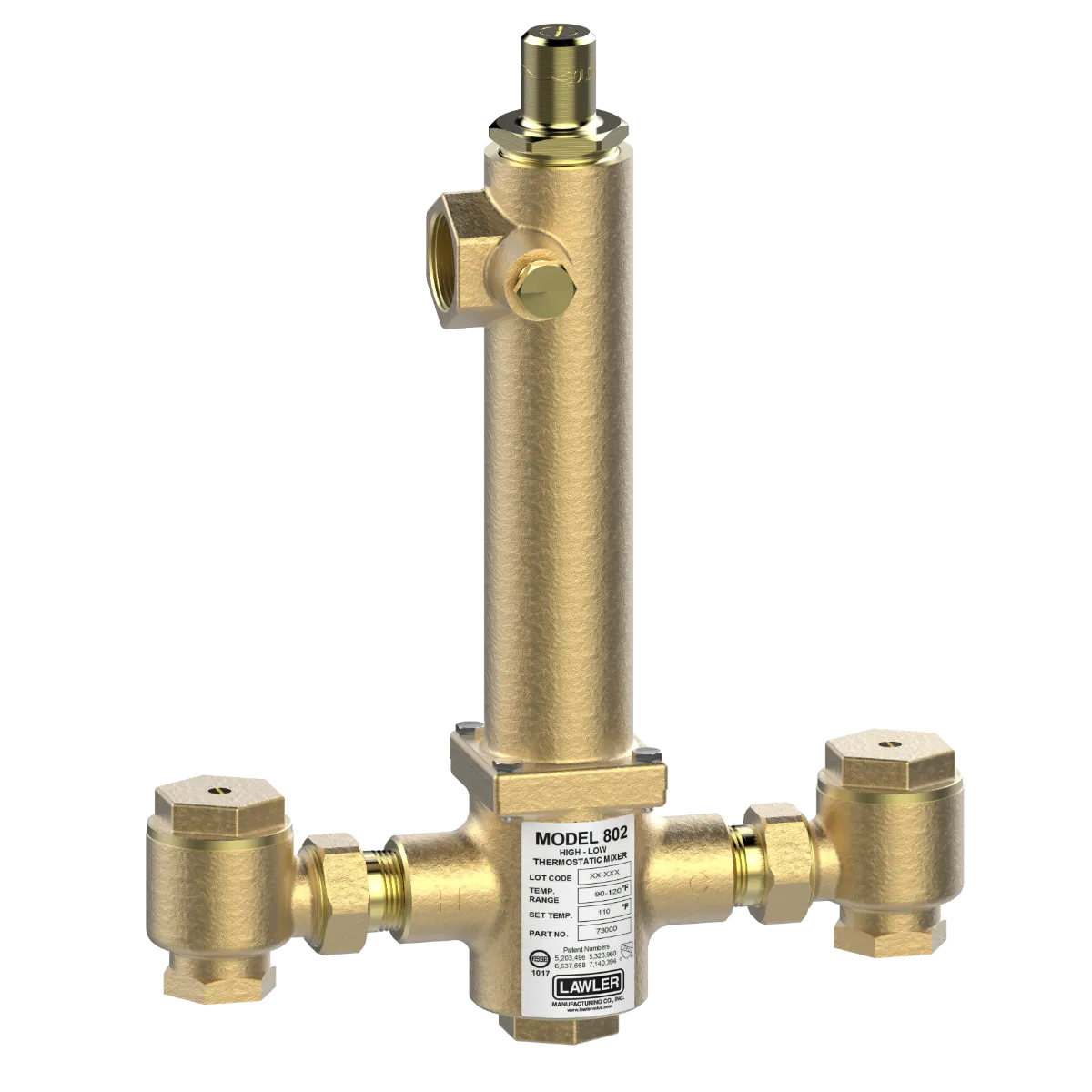

| Available Finishes | Rough Bronze, Rough Chrome, Polished Chrome |
