Lawler 73005-10-P 804 Standard High-Low Mixing Valves Polished Chrome
Lawler 73005-10-P 804 Standard High-Low Mixing Valves Polished Chrome - Polished Chrome / 90°F – 120°F Standard is backordered and will ship as soon as it is back in stock.

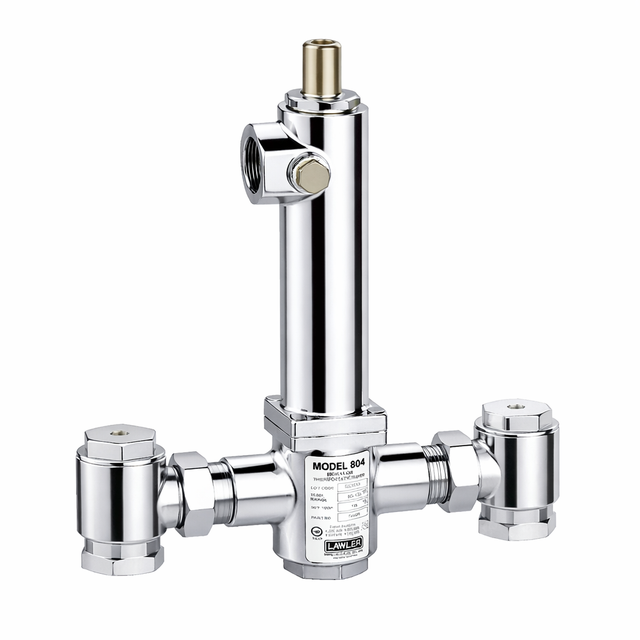

Lawler Model 804 High-Low Thermostatic Mixing Valve 73005-10-P
The Lawler Model 804 High-Low Thermostatic Mixing Valve is designed for high-capacity tempered water control in commercial and institutional plumbing systems.
Intended for applications such as schools, hospitals, hotels, correctional facilities, nursing homes, and group showers, the Model 804 uses a liquid-filled thermostat with a stainless steel piston and liner to provide thermostatic water temperature control across a wide flow range.
Key Features
- High-low thermostatic mixing valve for high-capacity applications.
- Designed for master-controller applications.
- Provides flow from 4 to 150 GPM at 45 PSI.
- Minimum flow of 1/2 GPM when properly installed in a recirculated system.
- Liquid-filled thermostatic element.
- Stainless steel piston and liner.
- One-piece, single-body design intended to simplify installation and maintenance compared with multi-valve arrangements.
- Designed to help limit exposure to excessively hot mixed water under specified thermostat, hot-water, or cold-water failure conditions.
- ASSE 1017 and CSA B125.3 certified.
Technical Specifications
| Series | 800 |
|---|---|
| Valve | 804 |
| Configuration | Standard |
| Application | Master Controller |
| Certifications | ASSE 1017, CSA B125.3, Lead Free |
| Connection Type | NPT |
| Inlet Connection Size | 1-1/2" |
| Outlet Connection Size | 2" |
| Minimum Flow | 4 GPM |
| Minimum Flow with Recirculation | 1/2 GPM |
| Rated Flow at 10 PSI | 72 GPM |
| Rated Flow at 45 PSI | 150 GPM |
| Temperature Ranges | 110°F–140°F, 70°F–100°F, 90°F–120°F |
| Weight | 44 lbs |
| Part Number | 73005-10-P |
| Manufacturer | Lawler |
Lawler 73005-10-P 804 Standard High-Low Mixing Valves Polished Chrome
