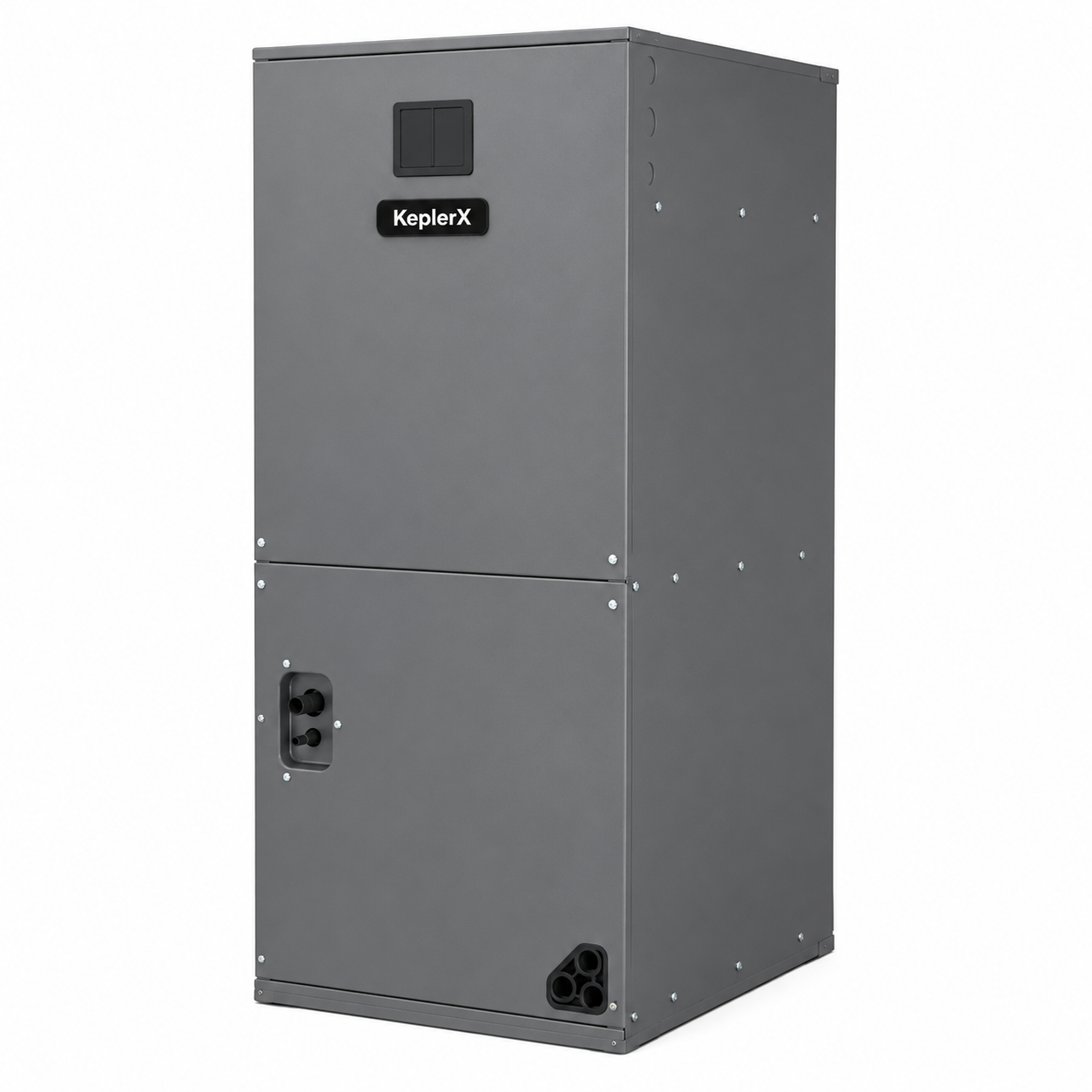

KeplerX 460V 3Phase R32 Air Handler

Model: K15HVC60W4H
Capacity: 5.0 Tons
Certification: AHRI & ETL Listed

The KeplerX K15HVC60W4H is a 5 Ton Indoor Air Handler designed for use with the 460V/3Phase KeplerX R32 Condensing Unit. This cooling-only system combines a high-efficiency ECM fan motor, hydrophilic aluminum fin coil, and inner-grooved copper tubing to deliver consistent performance and long-lasting reliability for commercial and light industrial HVAC applications.

⚙️ Performance Specifications

Specification	K15HVC60W4H
Cooling Capacity (BTU/h)	55,000
Power Supply	277V / 1Ph / 60Hz
Indoor External Static Pressure	145 Pa
Throttle Type	Orifice

This high-efficiency indoor unit provides reliable air distribution with steady cooling output for matched KeplerX outdoor systems.

🌬️ Indoor Coil

Specification	K15HVC60W4H
Number of Row	5 (row) × 2 (piece)
Tube Pitch (a × b)	0.83" × 0.53"
Fin Spacing	1/17 in
Fin Material	Hydrophilic Aluminum Fin
Tube Outside Diameter	Ø7 mm
Tube Type	Inner Grooved
Coil Dimensions (L×H×W)	19.84" × 21.5" × 2.63"
Number of Circuits	12

The hydrophilic aluminum fin design promotes efficient heat exchange and condensate drainage, ensuring stable cooling performance and reduced maintenance.

⚡ Indoor Fan Motor

Specification	K15HVC60W4H
Brand	Broad-Ocean / GMCC
Type	ECM
Input	473 W
Output	560 W
Full Load Amps (FLA)	3.3 A
Speed	895 / 920 / 965 / 1010 / 1065 RPM

The ECM motor ensures efficient, quiet operation and optimized airflow control, reducing power consumption while maintaining high static pressure capability.

💨 Blower & Airflow

Specification	K15HVC60W4H
Blower Diameter × Width	11" × 11"
Indoor Air Flow	1600 CFM
Indoor Sound Pressure Level	46–57 dB(A)

Engineered with precision-balanced blowers and multi-speed control for quiet, efficient air delivery.

📏 Dimensions & Weights

Specification	K15HVC60W4H
Unit Dimensions (W×D×H)	22" × 24-1/2" × 53-1/8" (560×623×1350 mm)
Packing Dimensions (W×D×H)	25-1/5" × 27-3/4" × 54-9/10" (640×705×1395 mm)
Net / Gross Weight	172 / 185 lbs (78 / 84 kg)

Compact and service-friendly, this air handler is easy to install and maintain in tight mechanical spaces.

❄️ Refrigerant Piping

Specification	K15HVC60W4H
Refrigerant Type	R32
Liquid Line	3/8"
Gas Line	7/8"

Compatible with KeplerX R32 condensing units for optimal system performance and low environmental impact.

🚛 Shipping & Logistics

Container Type	Units per Container
STD 20GP / 40GP / 40HQ	27 / 54 / 54

💡 Key Advantages

5.0 Ton cooling capacity for 460V/3Ph KeplerX R32 systems
ECM motor for high efficiency and quiet operation
Hydrophilic aluminum fin coil for enhanced heat transfer
Compact, durable cabinet for easy installation and service
Certified by AHRI & ETL for performance and safety
