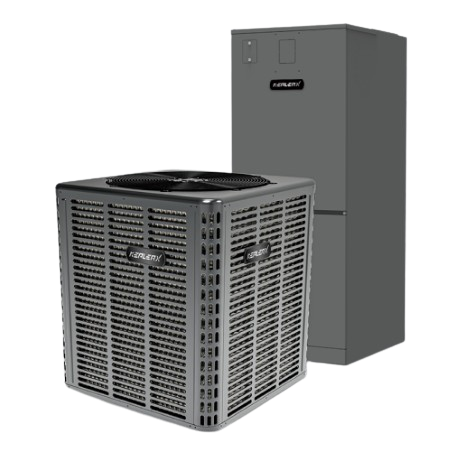

KeplerX 14.3 SEER2 R410A Heat Pump & Air Handler Package

KeplerX 14.3 SEER2 Heat Pump Top Discharge R410A Dry Unit Series

The KeplerX 14.3 SEER2 Top Discharge Heat Pump Series is designed for high-efficiency performance, reliability, and simplified installation. These R410A “dry” outdoor heat pump units range from 1.5 to 5 tons, making them ideal for residential and light commercial applications. Each model is AHRI and ETL certified and engineered for long-term durability and quiet operation.

🌟 Key Features Heat Pump

• High Efficiency: Up to 14.3 SEER2 cooling efficiency and 7.5 HSPF2 heating efficiency for optimal energy savings.

• Scroll Compressor by LG: Reliable, quiet operation with thermal protection and internal overload safeguard.

• Durable Construction: Hydrophilic aluminum fins and inner-grooved copper tubing maximize heat transfer and corrosion resistance.

• Smart Fan System: GREEN-INTELLIGENCE or Panasonic fan motors ensure consistent airflow with quiet performance (as low as 60 dB).

• Wide Operating Range: Cooling from 64°F to 118°F and heating from 17°F to 80°F ambient.

• Environmentally Friendly: Uses R410A refrigerant with efficient charge management and standard piping connections.

• Compact & Service-Friendly: Top-discharge design allows for space-saving installation and easy access for maintenance.

🌟 Key Features Air Handler

• Universal Design: Compatible with both air conditioning and heat pump condensers.

• High Efficiency: SEER2 ratings up to 14.3 when paired with matching outdoor units.

• Quiet Operation: Indoor sound pressure levels as low as 46 dB(A) for enhanced comfort.

• Durable Coil Construction: Hydrophilic aluminum fins and inner-grooved copper tubing optimize heat transfer and resist corrosion.

• Advanced Motor Options: PSC or ECM motors (depending on model) deliver consistent airflow and reduced energy use.

• Multiple Airflow Capacities: Up to 1,580 CFM for the largest models.

• Compact Design: Space-saving vertical configuration with easy service access.

• Reliable Performance: Factory-tested for pressure integrity, air balance, and safety compliance.

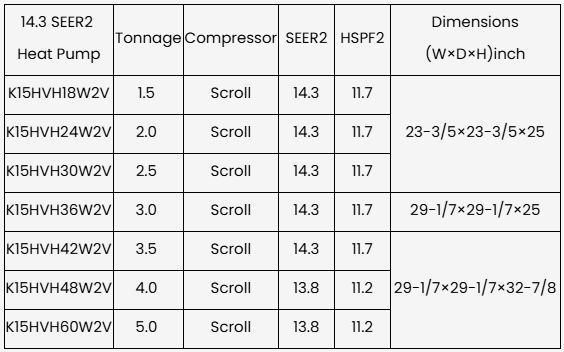

⚙️ Model Lineup & Performance Heat Pump

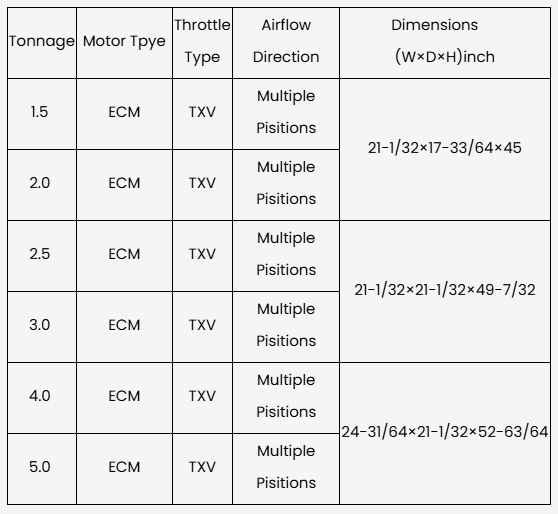

⚙️ Model Lineup & Performance Air Handler

🔧 Technical Highlights Heat Pump

• Refrigerant: R410A

• Refrigerant Piping: Liquid 3/8", Gas 3/4" (≤3.5 ton) or 7/8" (≥4 ton)

• Max. Line Length: 148 ft | Max. Elevation Difference: 66 ft

• Design Pressure: 2.7–2.8 MPa | Max Pressure: 4.5 MPa

• Airflow Range: 2,000 – 4,000 CFM

• Noise Level: 60 – 65 dB(A)

• Net Weight: 142 – 232 lbs (depending on model)

🔩 Technical Highlights Air Handler

• Power Supply: 208–230V / 1Ph / 60Hz

• Static Pressure: 125 Pa

• Coil Construction: Hydrophilic aluminum fin, inner-grooved copper tubes (Ø7 mm)

• Fan Motor: Kangbao (PSC) or Genteq/Broad-Ocean (ECM)

• Blower Wheel: Dual 11" × 11" design

• Refrigerant Piping:

  • Liquid Line: 3/8"

  • Gas Line: 3/4" (≤3.5 tons) / 7/8" (≥4 tons)

• Shipping Qty (20’/40’/40HQ):

  • 36 / 72 / 144 (1.5–3.5 ton)

  • 27 / 54 / 54 (4–5 ton)

🏅 Certifications

• AHRI Certified

• ETL Listed

• Complies with DOE 2023 Efficiency Standards

🔒 Warranty & Peace of Mind
