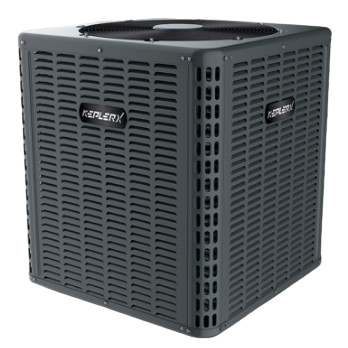

KeplerX 14.3 SEER2 Top Discharge R410A Air Conditioner Series

KeplerX 14.3 SEER2 Top Discharge R410A Air Conditioner Series

The KeplerX Top Discharge Condensing Units are high-efficiency R410A “dry” outdoor air conditioners designed for reliable cooling performance in residential and light commercial applications. Available in 1.5- to 5-ton capacities, these AHRI and ETL certified systems deliver up to 14.3 SEER2 efficiency with scroll compressors by LG for quiet, dependable operation.

🌟 Key Features

• Cooling-Only Design: Efficient top discharge condensing units (1.5–5.0 tons) using environmentally friendly R410A refrigerant.

• High Efficiency: SEER2 ratings up to 14.3 and EER2 up to 11.7 for reduced energy consumption.

• Durable Construction: Hydrophilic aluminum fins with inner-grooved copper tubing enhance heat transfer and corrosion resistance.

• Quiet Operation: Outdoor sound levels as low as 60 dB(A) and smooth-running LG scroll compressors.

• Reliable Components: GREEN-INTELLIGENCE fan motors, internal thermal protection, and high-quality LG compressors.

• Flexible Installation: Supports refrigerant line lengths up to 148 ft with a 66 ft maximum elevation difference.

• Design Pressure: Rated for 2.7–2.8 MPa with a maximum operating pressure of 4.5 MPa.

• Operating Range: Cooling operation from 64°F to 118°F ambient temperature.

• Compact and Serviceable: Space-saving top-discharge design with easy access panels for maintenance.

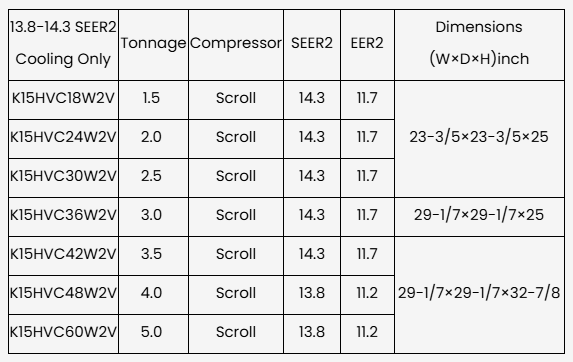

⚙️ Available Models & Cooling Capacities

🔧 Refrigerant Piping

• Liquid Line: 3/8"

• Gas Line: 3/4" (up to 3.5 tons) / 7/8" (4–5 tons)

• Refrigerant Type: R410A

🏅 Certifications

• AHRI Certified

• ETL Listed
