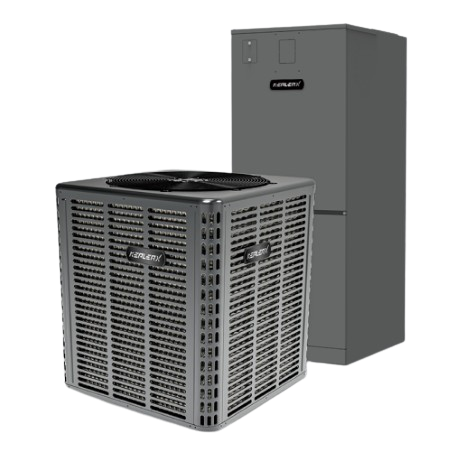

KeplerX 14.3 SEER2 R410A Air Conditioner & Air Handler Package

KeplerX 14.3 SEER2 Air Conditioner Top Discharge R410A Dry Unit Series

The KeplerX 14.3 SEER2 Top Discharge A/C Condenser Series is built for efficient, reliable cooling performance and simplified installation. These R410A “dry” outdoor condensing units range from 1.5 to 5 tons, making them ideal for residential and light commercial applications. Each model is AHRI and ETL certified, engineered for long-term durability, and designed for quiet operation.

🌟 Key Features – Cooling Condenser

High Efficiency:
Delivers up to 14.3 SEER2 cooling efficiency for reliable comfort and energy savings.

Scroll Compressor by LG:
Dependable, quiet performance with built-in thermal protection and internal overload safeguards.

Durable Construction:
Hydrophilic aluminum fins and inner-grooved copper tubing maximize heat transfer and resist corrosion.

Smart Fan System:
GREEN-INTELLIGENCE or Panasonic fan motors ensure consistent airflow and quiet operation (as low as 60 dB).

Wide Operating Range:
Performs efficiently in ambient cooling conditions from 64°F to 118°F.

Environmentally Friendly:
Uses R410A refrigerant with efficient charge management and standard piping connections.

Compact & Service-Friendly:
Top-discharge design saves space and allows easy service access for quick maintenance.

🌟 Key Features – Air Handler

Universal Design:
Compatible with KeplerX cooling condensers for seamless installation and matched performance.

High Efficiency:
Achieves up to 14.3 SEER2 when paired with the appropriate outdoor condensing unit.

Quiet Operation:
Indoor sound levels as low as 46 dB(A) enhance comfort in any setting.

Durable Coil Construction:
Hydrophilic aluminum fins and inner-grooved copper tubing ensure excellent heat transfer and long life.

Advanced Motor Options:
Available with PSC or ECM motors for flexible performance and reduced energy use.

Multiple Airflow Capacities:
Up to 1,580 CFM on larger models for powerful, balanced cooling.

Compact Design:
Space-saving vertical configuration with easy service access and installation.

Reliable Performance:
Each unit is factory-tested for pressure integrity, air balance, and safety compliance.

⚙️ Model Lineup & Performance – Cooling Condenser

⚙️ Model Lineup & Performance – Air Handler

🔧 Technical Highlights – Cooling Condenser

• Refrigerant: R410A

• Refrigerant Piping: Liquid 3/8", Gas 3/4" (≤3.5 ton) or 7/8" (≥4 ton)

• Max. Line Length: 148 ft | Max. Elevation Difference: 66 ft

• Design Pressure: 2.7–2.8 MPa | Max Pressure: 4.5 MPa

• Airflow Range: 2,000 – 4,000 CFM

• Noise Level: 60 – 65 dB(A)

• Net Weight: 142 – 232 lbs (depending on model)

🔩 Technical Highlights – Air Handler

• Power Supply: 208–230V / 1Ph / 60Hz

• Static Pressure: 125 Pa

• Coil Construction: Hydrophilic aluminum fin, inner-grooved copper tubes (Ø7 mm)

• Fan Motor: Kangbao (PSC) or Genteq/Broad-Ocean (ECM)

• Blower Wheel: Dual 11" × 11" design

• Refrigerant Piping:

  • Liquid Line: 3/8"

  • Gas Line: 3/4" (≤3.5 tons) / 7/8" (≥4 tons)

• Shipping Qty (20’/40’/40HQ):

  • 36 / 72 / 144 (1.5–3.5 ton)

  • 27 / 54 / 54 (4–5 ton)

🏅 Certifications

• AHRI Certified

• ETL Listed

• Complies with DOE 2023 Efficiency Standards

🔒 Warranty & Peace of Mind

Every KeplerX Cooling-Only System is backed by a 10-year limited parts warranty (with registration) and a 5-year standard warranty for unregistered systems. This coverage ensures dependable comfort and long-term protection for homeowners and professionals alike.
