KeplerX R32 Free Match Ducted Indoor Unit Series
Ceiling Concealed Ducted Units for Free Match Multi-Zone Systems

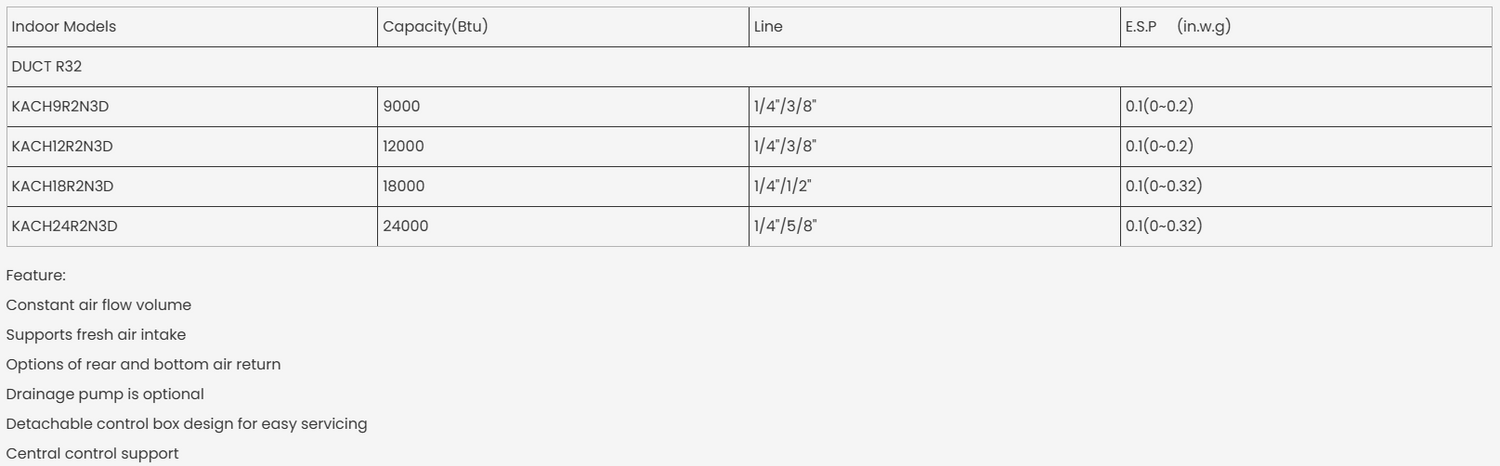

Models: KACH9R2N3D • KACH12R2N3D • KACH18R2N3D • KACH24R2N3D
The KeplerX R32 Free Match Ducted Indoor Unit Series provides powerful, discreet comfort with flexible installation options for residential and light commercial applications. Designed to pair seamlessly with KeplerX Free Match outdoor systems, these ceiling-concealed ducted units deliver quiet, efficient airflow using eco-friendly R32 refrigerant and premium Tongde or Wolong fan motors.
⚙️ Performance Highlights
-
Cooling Capacity: 9,000 – 24,000 Btu/h
-
Heating Capacity: 10,000 – 24,600 Btu/h
-
Power Supply: 208/230V, 1Ph, 60Hz
-
Voltage Range: 187 – 253V
-
System Type: Free Match Ducted IDU, AHRI & ETL Certified
-
Refrigerant: R32 – low GWP, eco-friendly design
🌬️ Airflow & Fan System
-
Fan Brand: Tongde (9K–12K) / Wolong (18K–24K)
-
Fan Quantity: 1 per unit
Fan Speed (Hi/Mi/Lo):
-
9K–12K: 1125 / 1035 / 930 r/min
-
18K: 1120 / 1020 / 920 r/min
-
24K: 1130 / 1030 / 950 r/min
Static Pressure:
-
9K–12K: 25 Pa (adjustable 0–50 Pa)
-
18K–24K: 25 Pa (adjustable 0–80 Pa)
Airflow Rate (CFM):
-
9K–12K: 333 / 286 / 236
-
18K: 488 / 412 / 344
-
24K: 747 / 647 / 529
🔇 Sound Performance
Indoor Sound Pressure Level (dB(A)):
-
9K–12K: 32 / 31 / 29
-
18K: 39 / 36 / 33
-
24K: 42 / 40 / 37
Quiet and efficient operation ensures optimal comfort for both residential and commercial environments.
📏 Construction & Dimensions
| Model | Dimensions (W×D×H) mm | Packing (W×D×H) mm | Net/Gross Weight (kg) | Dimensions (in) | Weight (lb) |
|---|---|---|---|---|---|
| 9K–12K | 700×450×198 | 865×535×255 | 12.5 / 15.0 | 27.56×17.72×7.8 | 27.6 / 33.1 |
| 18K | 700×700×245 | 930×830×300 | 21.5 / 25.5 | 27.56×27.56×9.65 | 47.4 / 56.2 |
| 24K | 1000×700×245 | 1230×830×300 | 27.0 / 32.0 | 39.37×27.56×9.65 | 59.5 / 70.5 |
Construction: Heavy-duty galvanized steel cabinet with internal insulation for noise reduction and thermal efficiency.
Design: Compact, low-profile body ideal for concealed ceiling installations.
🔧 Refrigerant & Piping
-
Refrigerant Type: R32
-
Liquid Line: 6.35 mm (¼")
-
Gas Line:
-
9K–12K: 9.52 mm (⅜")
-
18K: 12.7 mm (½")
-
24K: 15.88 mm (⅝")
-
-
Connection Type: Flare-type fittings for secure, leak-free installation
🌡️ Design Advantages
-
Compatible with KeplerX R32 Free Match outdoor units
-
Ceiling-concealed installation for a clean, quiet appearance
-
Adjustable static pressure for flexible duct design
-
Reliable Tongde and Wolong fan motors for optimal performance
-
Low sound levels for enhanced comfort
-
Compact and lightweight for easy installation and service
🏢 Ideal Applications
-
Residential homes and apartments
-
Commercial offices and meeting rooms
-
Retail and hospitality environments
-
Multi-zone heating and cooling systems
-
Any space requiring hidden, efficient air distribution
