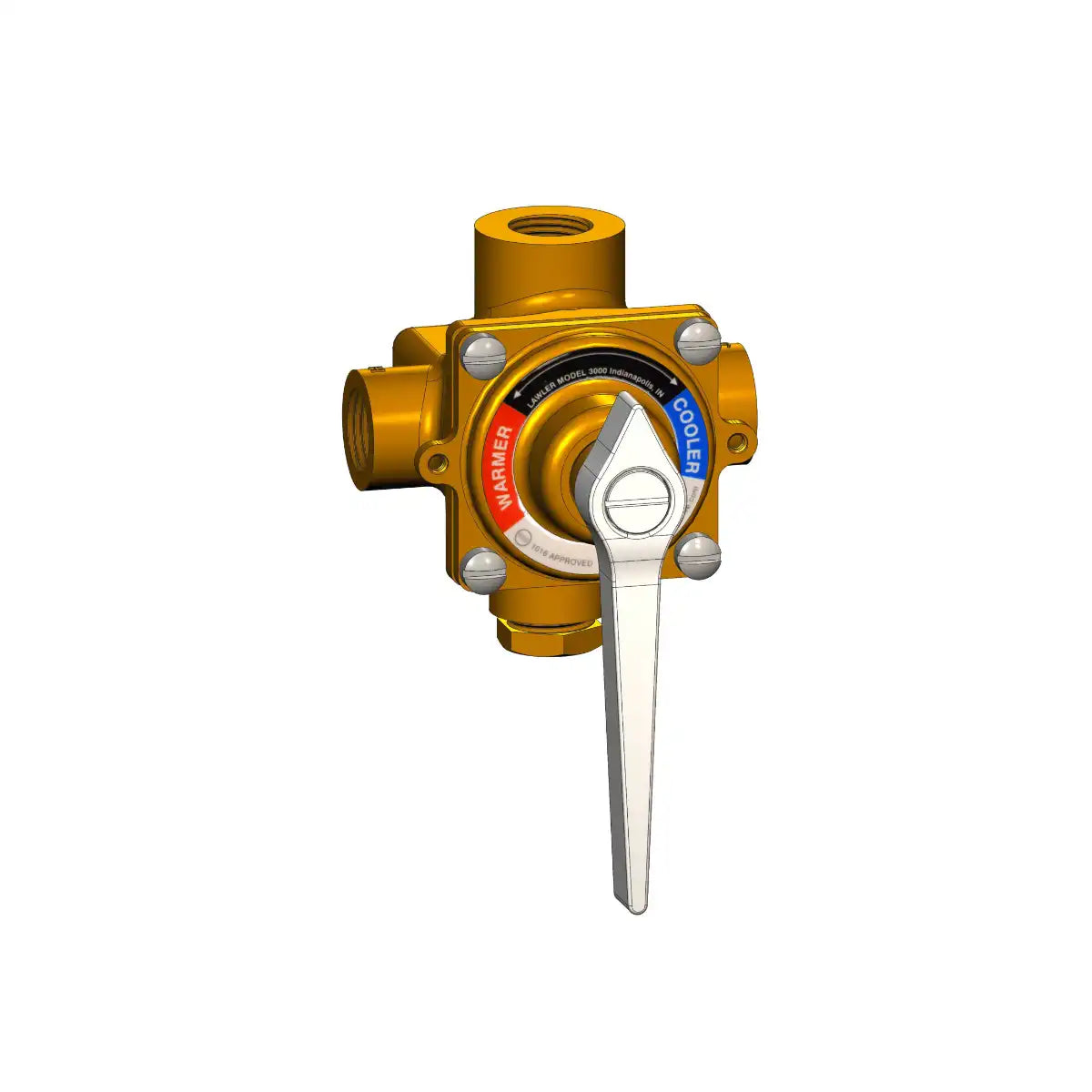

Lawler Series 3000 3/4" Single Stage Thermostatic Control Valves 72047-15
Most Items Ship Same Day
(Warranty, Return and Refunds)
Genuine Lawler 3000 3/4" Single Stage Thermostatic Control Valves 72047-15.
This Lawler 3000 3/4" Single Stage Thermostatic Control Valves 72047-15 is manufactured by Lawler.
The Lawler Series 3000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to higher temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature. The Series 3000® provides anti-scalding and anti-chilling protection through its thermostatically operated valve. The Lawler Series 3000® offers maximum choice, while also providing maximum comfort, for a variety of applications.
Specifications:
| Series: 3000 |
| Model: 3000-50 |
| Configuration: Standard |
| Application: Shower |
| Certification/s: ASME A112, ASSE 1016, CSA B125 |
| Connection Type: NPT |
| Inlet Connection Size: 3/4" |
| Outlet Connection Size: 3/4" |
| Min Flow: 1 GPM, 1/2 GPM, 4GPM |
| Min Flow with Recirculation: N/A |
| Rated Flow at 10 PSI: 1 GPM, 1-3/4 GPM, 4-1/4 GPM |
| Rated Flow at 45 PSI: 10 GPM, 2-1/2 GPM, 5 GPM |
| Temperature Range: Full Cold to 115°F |
| Part Number: Rough Bronze 72047-15 |
Documents and guides:
Disclaimer: Must be installed by a licensed contractor or warranty is void.
