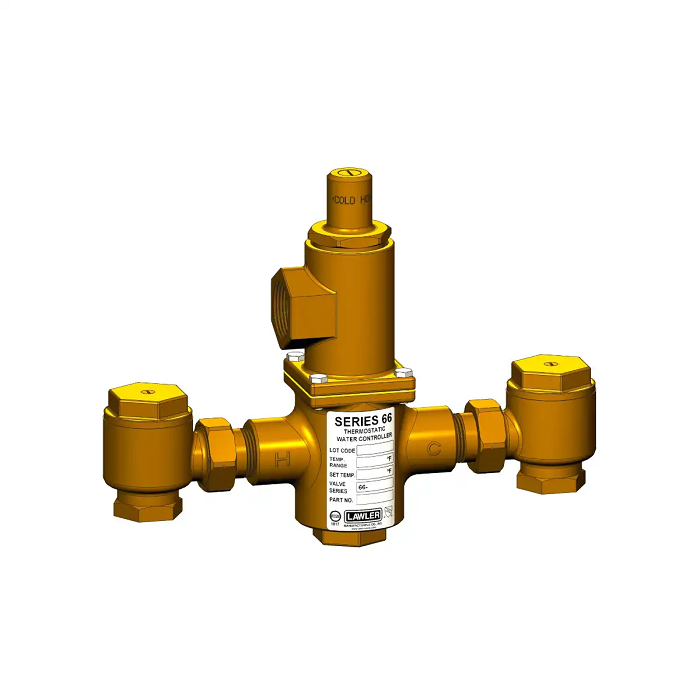

Lawler 71762-16 66-80 Thermostatic Mixing Valves

Lawler 71762-16 66-80 Thermostatic Mixing Valves

  • $1,753.00
  • Save $-159


  Most Items Ship Same Day   (Warranty, Return and Refunds)


Lawler 66® Master Mixing Valve (71762-16) – High-Capacity Water Temperature Control

The Lawler 66® Master Mixing Valve (71762-16) is engineered for facilities that demand precise, high-volume water temperature control. Capable of mixing large quantities of hot and cold water, this valve ensures dependable delivery while providing Lawler’s exclusive Three-Way Protection™ against runaway temperatures, thermal shock, and scalding—even in the event of thermostat, hot water, or cold water failure.

With a flow capacity of up to 200 GPM, the Model 66® is built for institutional and commercial applications where consistent, safe tempered water is essential.


🔑 Key Features & Benefits

  • High-Capacity Flow – Handles flows up to 200 GPM, making it ideal for large systems.

  • Three-Way Protection™ – Safeguards against thermal shock, scalding, and runaway temperatures in case of component or supply failure.

  • Temperature Precision – Maintains outlet water temperature within ±3°F for maximum safety and comfort.

  • Exceeds ASSE 1017 Standards – Provides performance and safety above industry requirements.

  • Durable Design – Constructed with rugged, high-quality materials for long-term reliability.

  • Trusted Performance – Designed for demanding commercial, industrial, and institutional water systems.


🏢 Ideal Applications

The Lawler Model 66® is an excellent choice for high-demand environments, including:

  • Hospitals & healthcare facilities

  • Schools & universities

  • Hotels & resorts

  • Industrial plants

  • Correctional facilities

  • Large commercial buildings


⚡ Why Choose the Lawler 66®?

As Lawler’s flagship master controller, the Model 66® delivers unmatched performance, precision, and safety. With its high-flow capacity, three-way scald protection, and proven reliability, the 66® is the go-to solution for large-scale plumbing systems that require safe, tempered water delivery at all times.


📞 Order the Lawler 66® Today

Ensure consistent, safe water temperature control in your facility with the Lawler 71762-16 Model 66® Master Mixing Valve. Contact us today for pricing, technical support, and availability.



Specifications:

Series: 66
Model: 66-80
Configuration: Standard
Application: Master Controller
Certification/s: ASSE 1017, CSA B125.3, Lead Free
Connection Type: NPT
Inlet Connection Size: 1"
Outlet Connection Size: 1-1/4"
Min Flow: 12 GPM
Min Flow with Recirculation: 1/2 GPM"
Rated Flow at 10 PSI: 39 GPM"
Rated Flow at 45 PSI: 80 GPM"
Temperature Range: 100°F – 150°F, 50°F – 100°F, 85°F – 135°F
Weight: 19 lbs
Part Number: 71762-16 Rough Bronze, 71762-46 Rough Chrome, 71762-46-P Polished Chrome



Documents and guides:

Read more...
shop pay installments buy now pay later
(Open hours: 9:00 AM - 5:00 PM)

Disclaimer: Must be installed by a licensed contractor or warranty is void.
