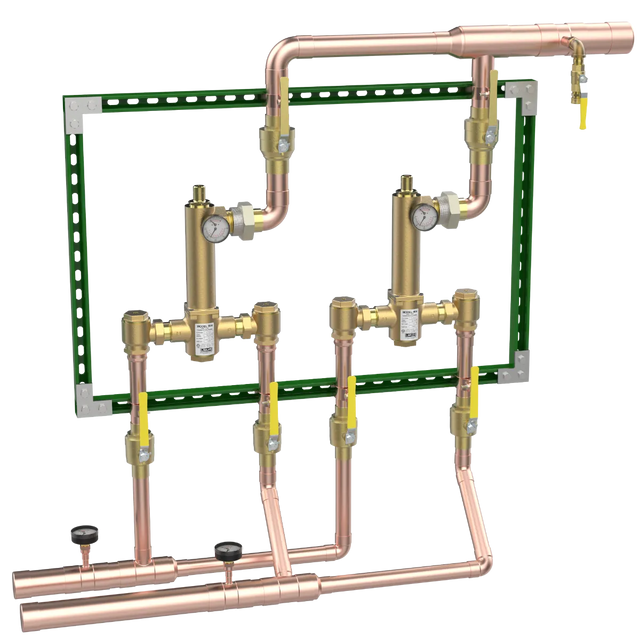

Lawler 86613 804 Parallel Installation
Lawler 86613 804 Parallel Installation is backordered and will ship as soon as it is back in stock.
Lawler’s patented Series 800 high-low master controller technology offers a unique solution when designing for high-capacity systems. This pre-piped, factory tested parallel system can meet your need for increased capacity or for a redundant system in applications where the domestic hot water system cannot be interrupted. Lawler’s Pre-Piped Double Parallel System is a part of Lawler’s Power of One™ pre-piped, pre-packaged, pre-tested systems, intended to give you one point of design and one point of accountability.
Specifications:
| Series: 800 |
| Valve: 804 |
| Configuration: Parallel Installation |
| Application: Master Controller |
| Certification/s: ASSE 1017, CSA B125.3, Lead Free |
| Connection Type: Sweat |
| Inlet Connection Size: 2-1/2" |
| Outlet Connection Size: 3" |
| Min Flow: 8 GPM |
| Min Flow with Recirculation: 1/2 GPM |
| Rated Flow at 10 PSI: 144 GPM |
| Rated Flow at 45 PSI: 300 GPM |
| Temperature Range: 110°F – 140°F, 70°F – 100°F, 90°F – 120°F |
| Part Number: 86613-00 |
