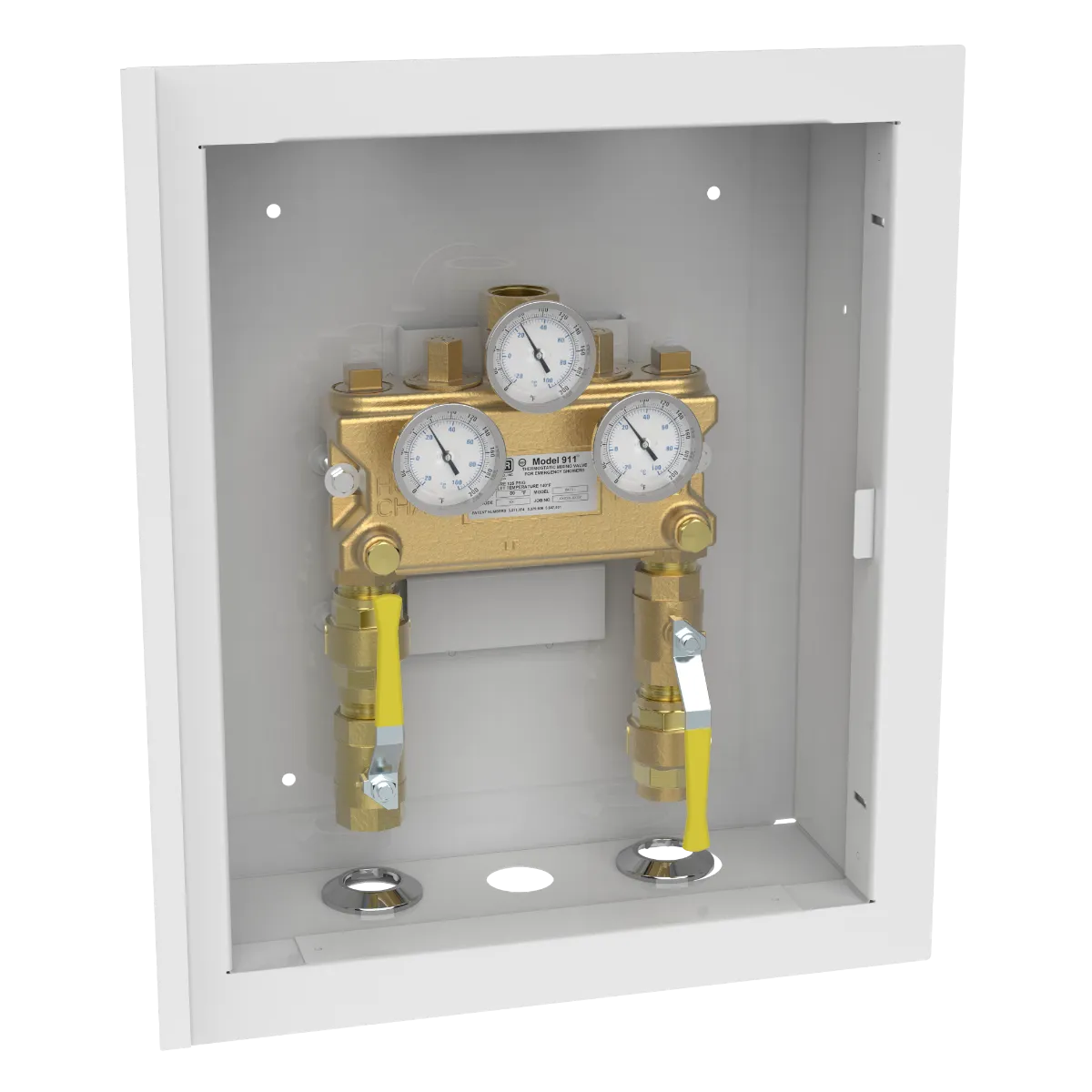

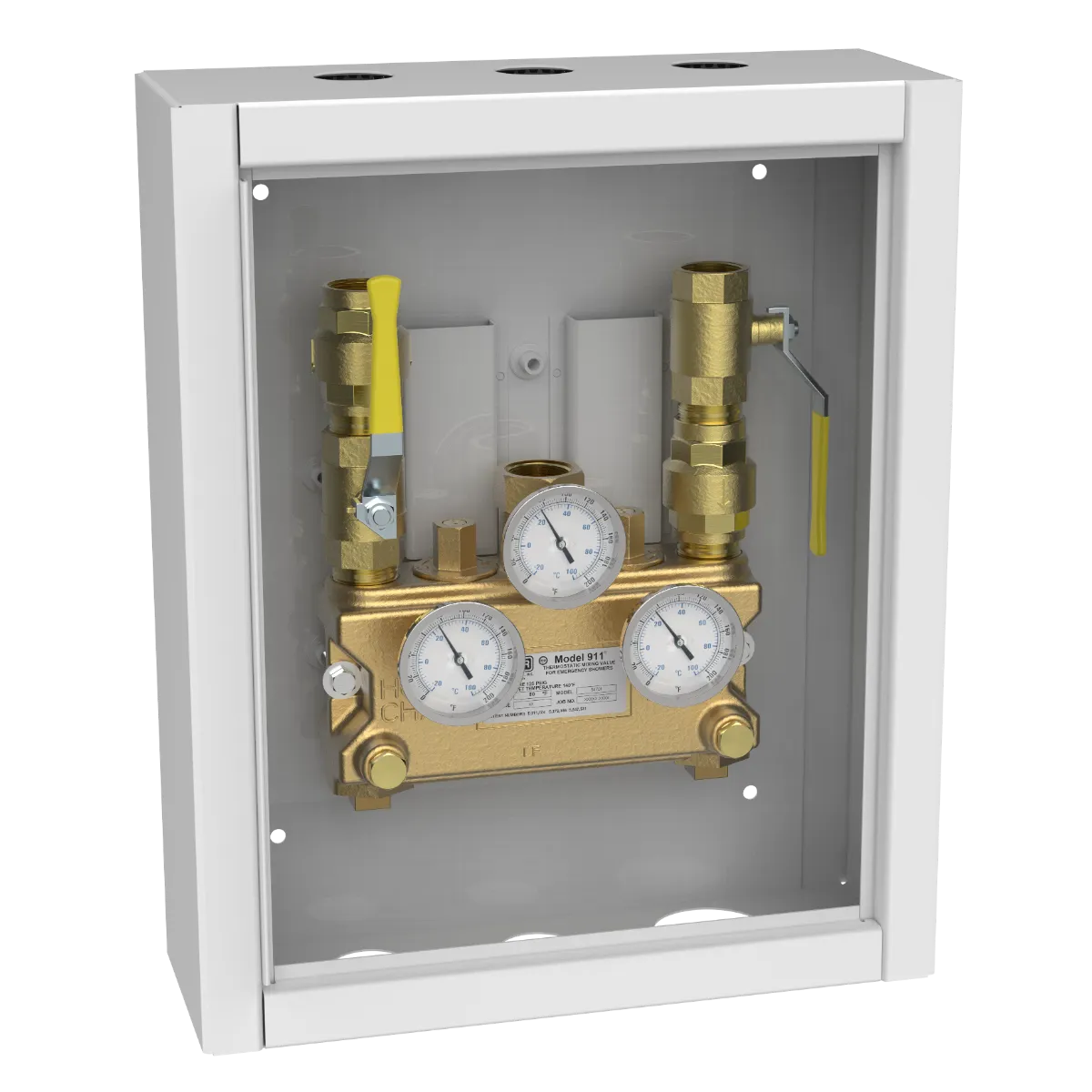

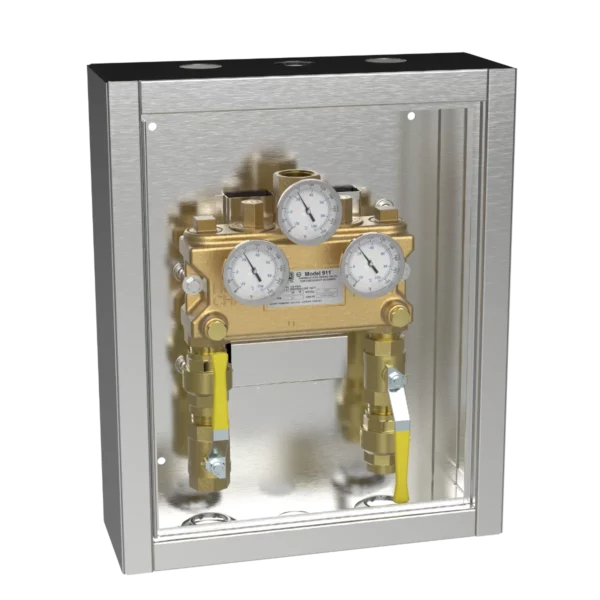

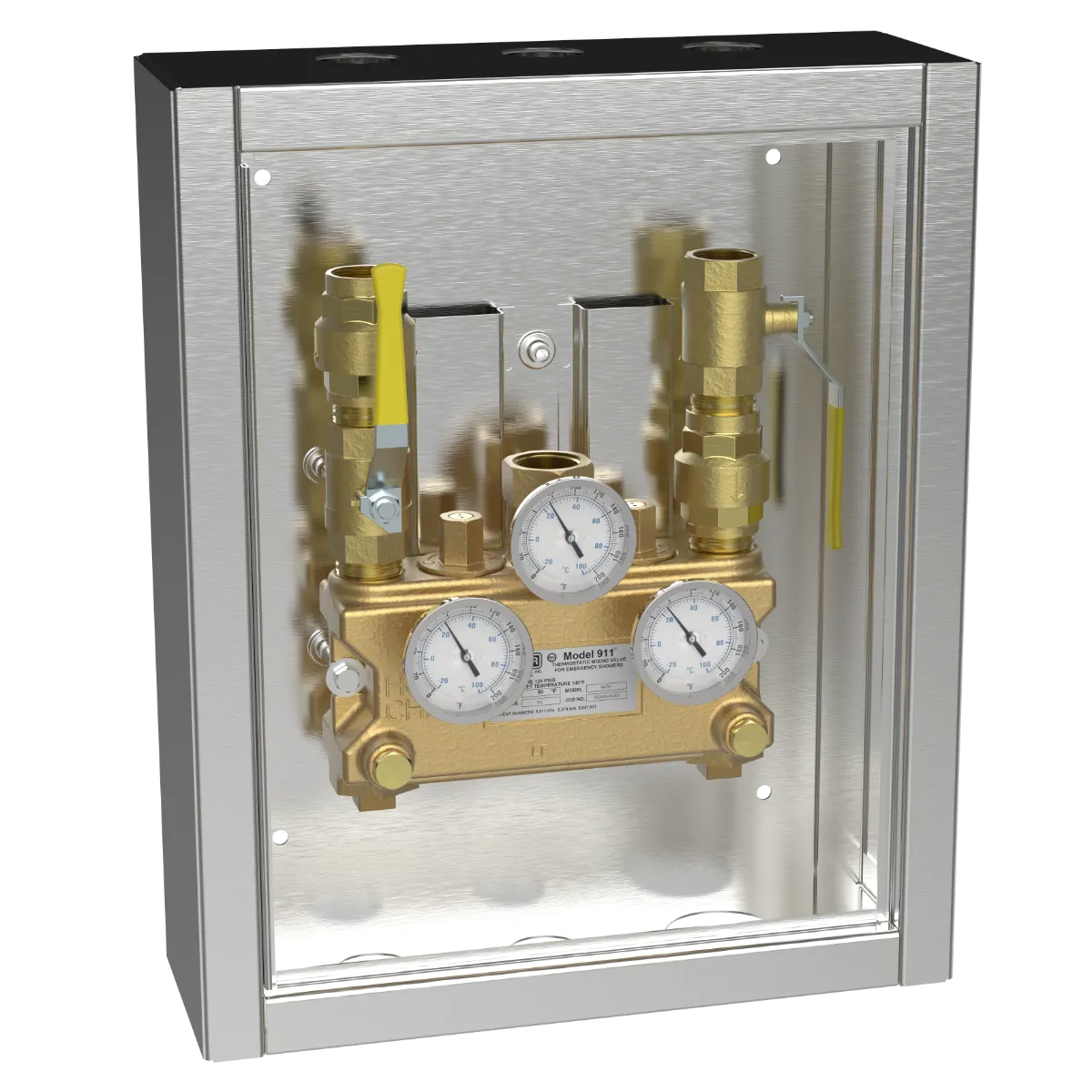

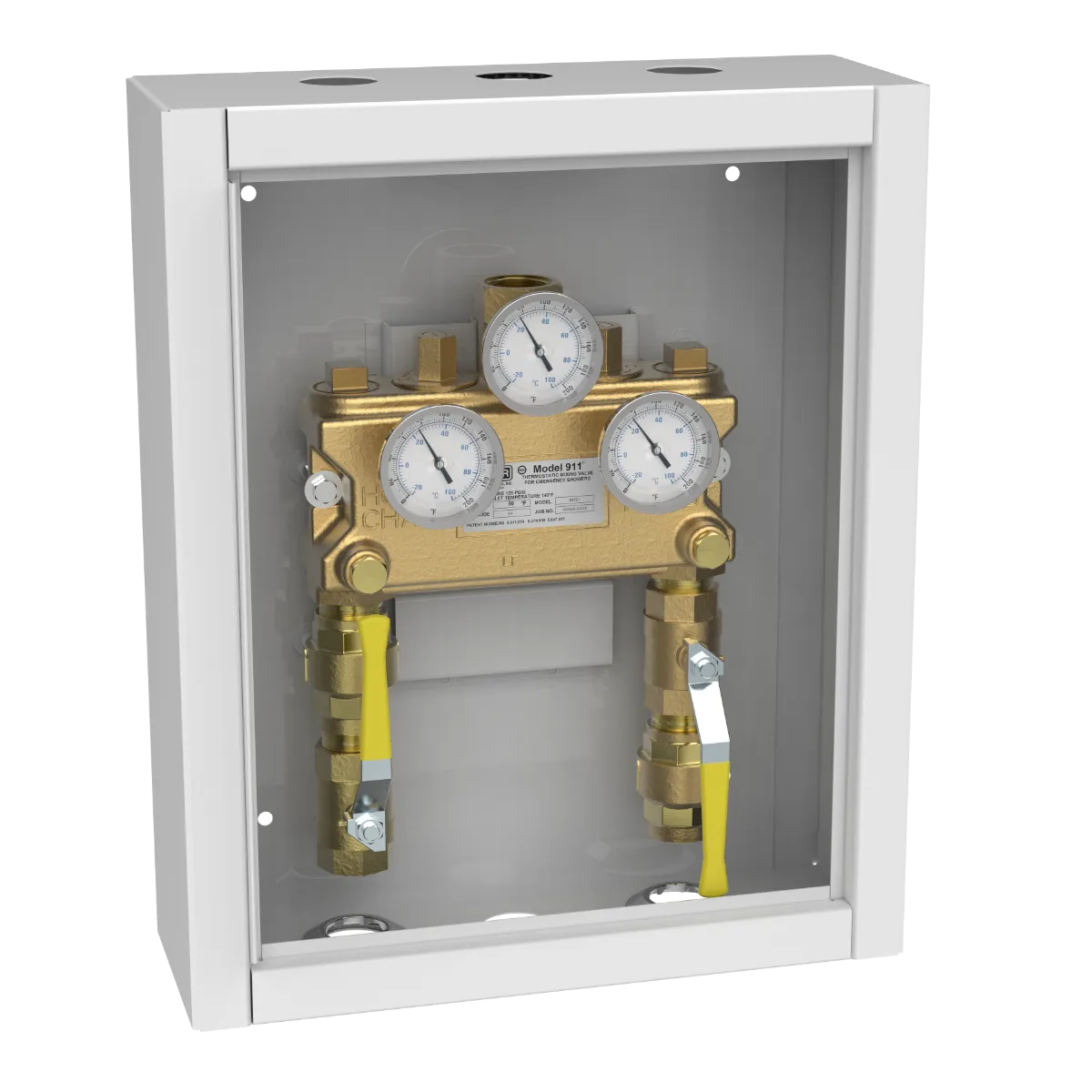

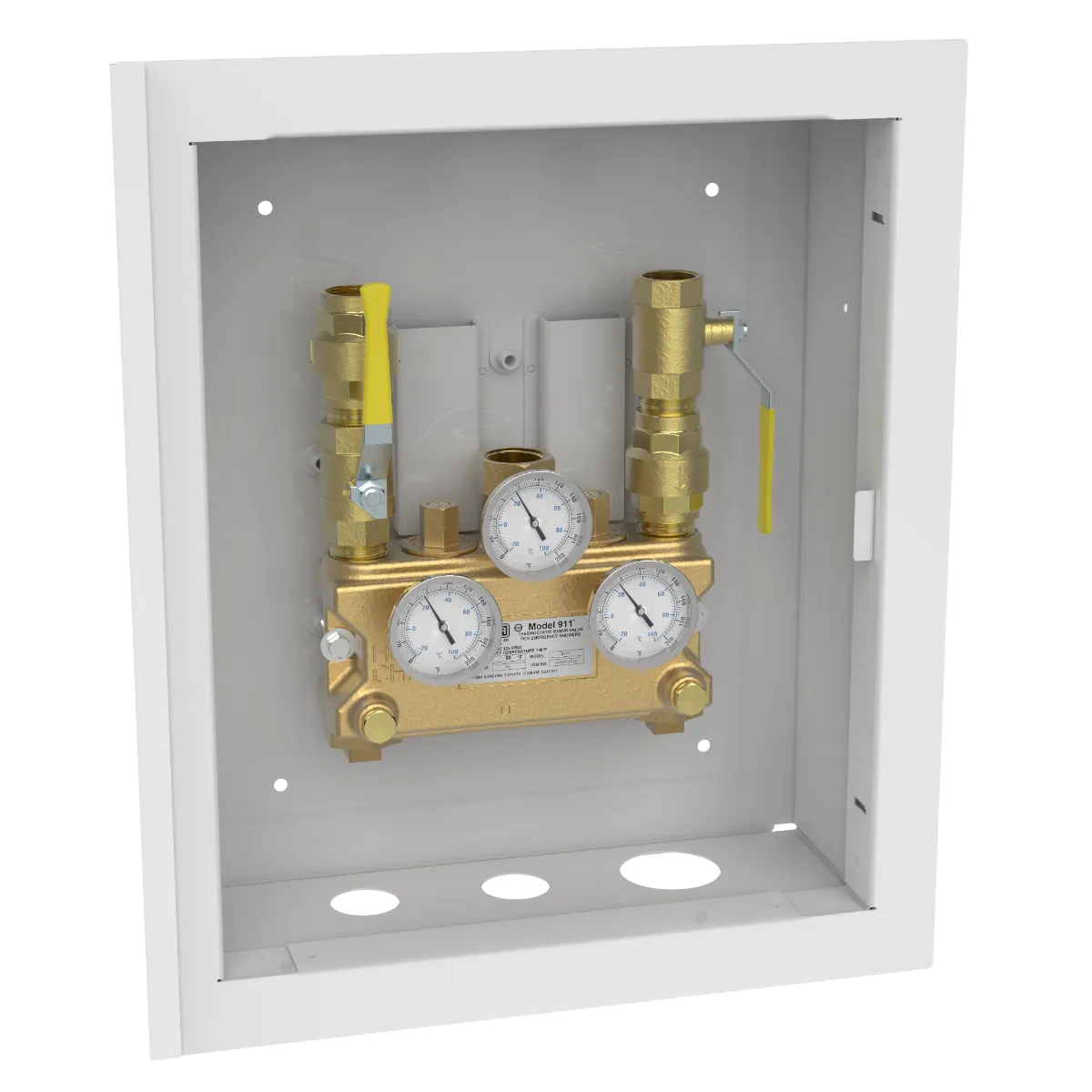

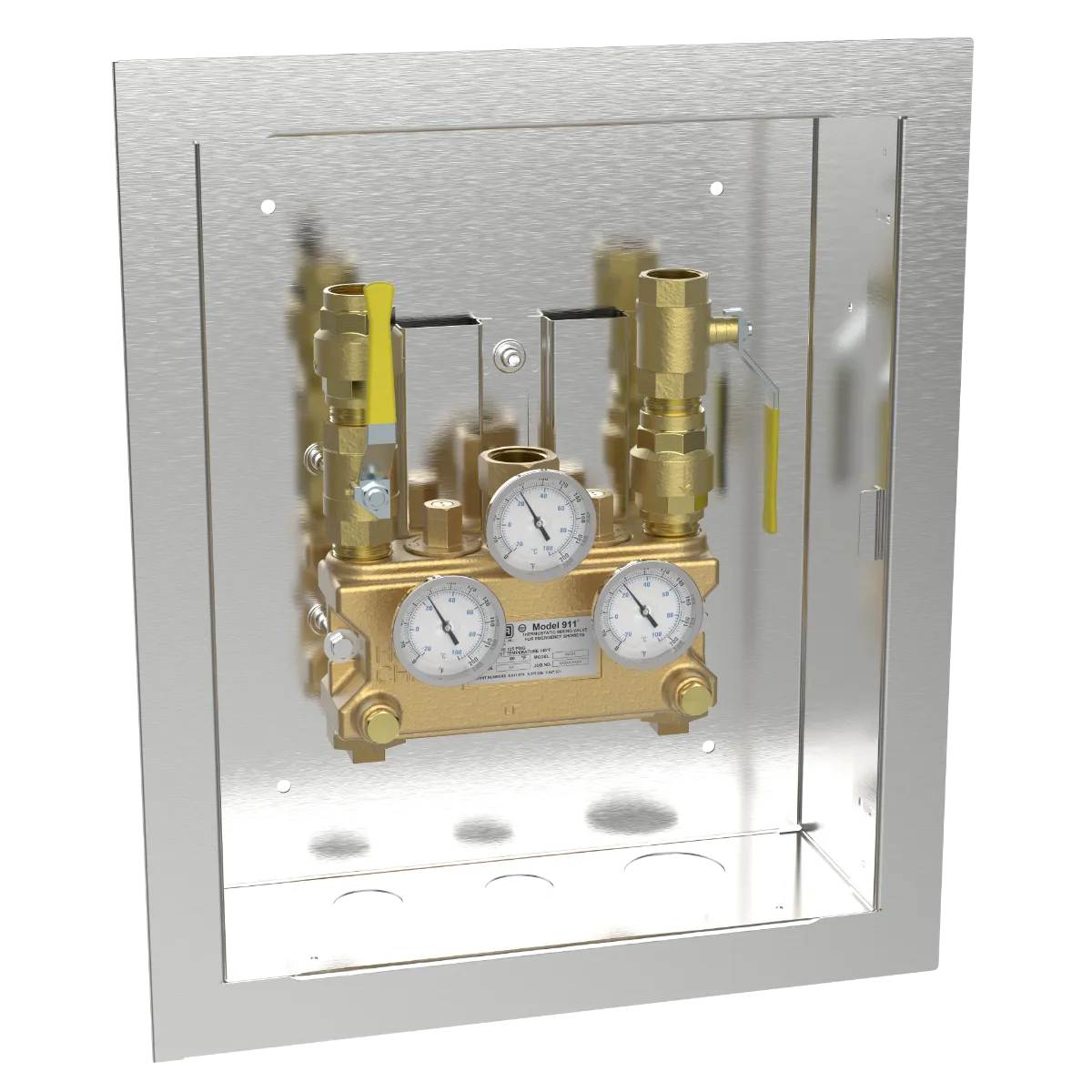

Lawler 911 Thermometer with Inlet Piping Cabinet 84701
Most Items Ship Same Day
(Warranty, Return and Refunds)
911E Emergency Shower/Eyewash Valves are specifically engineered to provide tempered water to emergency showers and eyewashes. Tempered water promotes safe and effective usage of a drench shower in an emergency situation. Lawler’s 911E Valve contains one thermostatic elements in order to provide tempered water in the event of a thermostatic failure.
Key Design Features:
Patented thermostatic element
Positive hot water shut-off
Integral cold water bypass
The Hi-Low GPM range of 2 to 25 gpm @ 30 psi is sufficient for a single eyewash or single drench shower, and meets ANSI Z358.1-2014 voluntary standards. The 911E valve can be installed into existing emergency shower application and is easily tested and repaired. The 911 is available with thermometers, shut-offs, cabinet assemblies, and a choice of rough bronze or white chrome finish. When safety and reliability are required, specify the Lawler 911 Series.
Specifications:
| Series: 911 |
| Model: 911E |
| Configuration: Thermometer with Inlet Piping |
| Application: Emergency |
| Certification/s: ASSE 1071, Lead Free |
| Connection Type: NPT |
| Inlet Connection Size: 1-1/4" |
| Outlet Connection Size: 1-1/4" |
| Min Flow: 2 GPM |
| Min Flow with Recirculation: N/A |
| Rated Flow at 10 PSI: 35 GPM" |
| Rated Flow at 45 PSI: 72 GPM" |
| Temperature Range: 70°F – 90°F |
| Finish: Rough Chrome, Rough Bronze |
| Cabinet Mounting: Exposed, Recessed, Semi-Recessed |
| Cabinet Finish: Baked White Enamel, Stainless Steel |
| Part Number: 84701 |
