Rusco 2 Inch L-Series Sediment Trapper Replacement Filter Elements
Rusco 2 Inch L-Series Sediment Trapper Replacement Filter Elements - Polyester / 24 Mesh (700 Micron) is backordered and will ship as soon as it is back in stock.
Rusco 2" L-Series Sediment Trapper Replacement Filter Elements
Maintain filtration performance in a compatible Rusco 2" L-Series Sediment Trapper with genuine Rusco replacement filter elements designed specifically for the L-Style Sediment Trapper configuration.

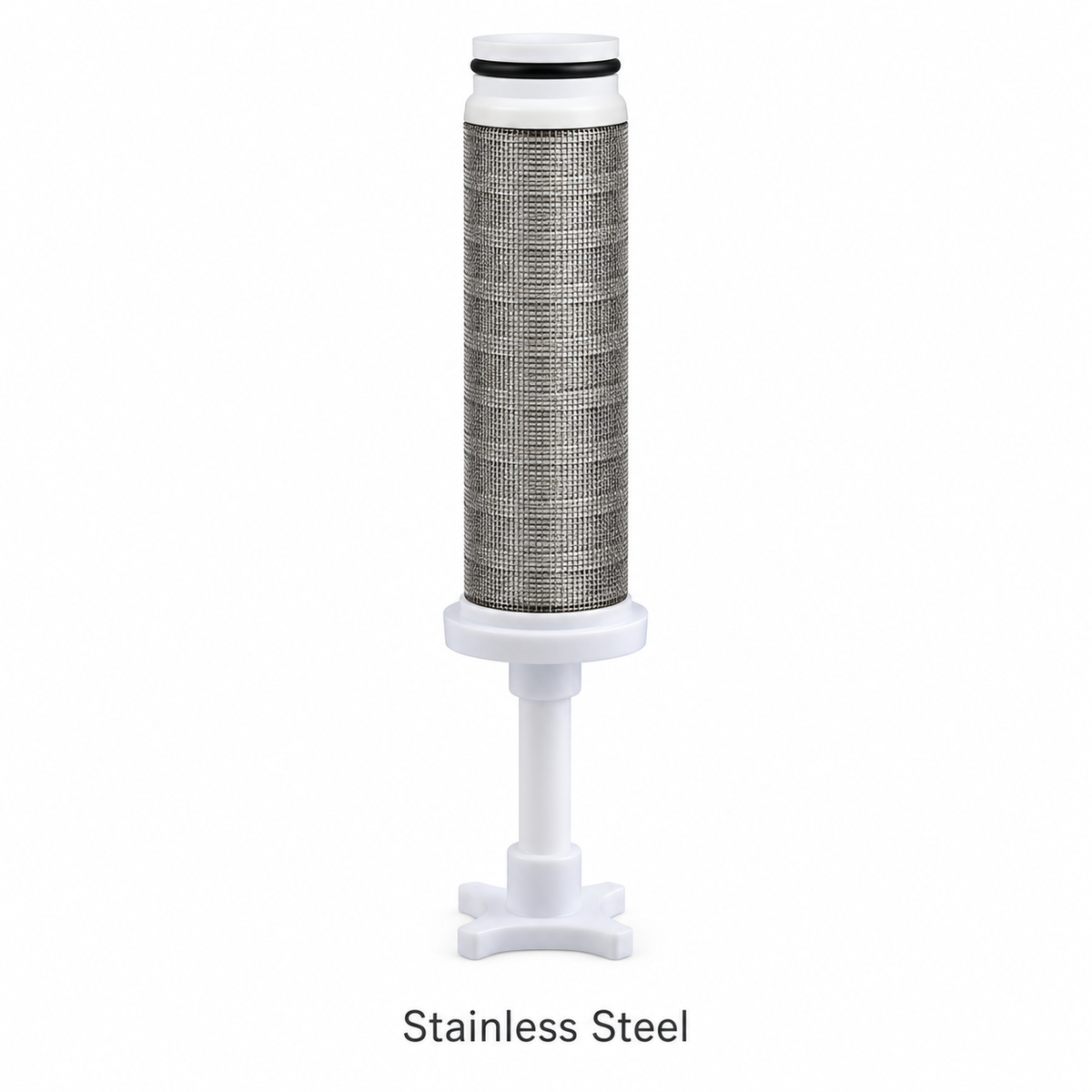

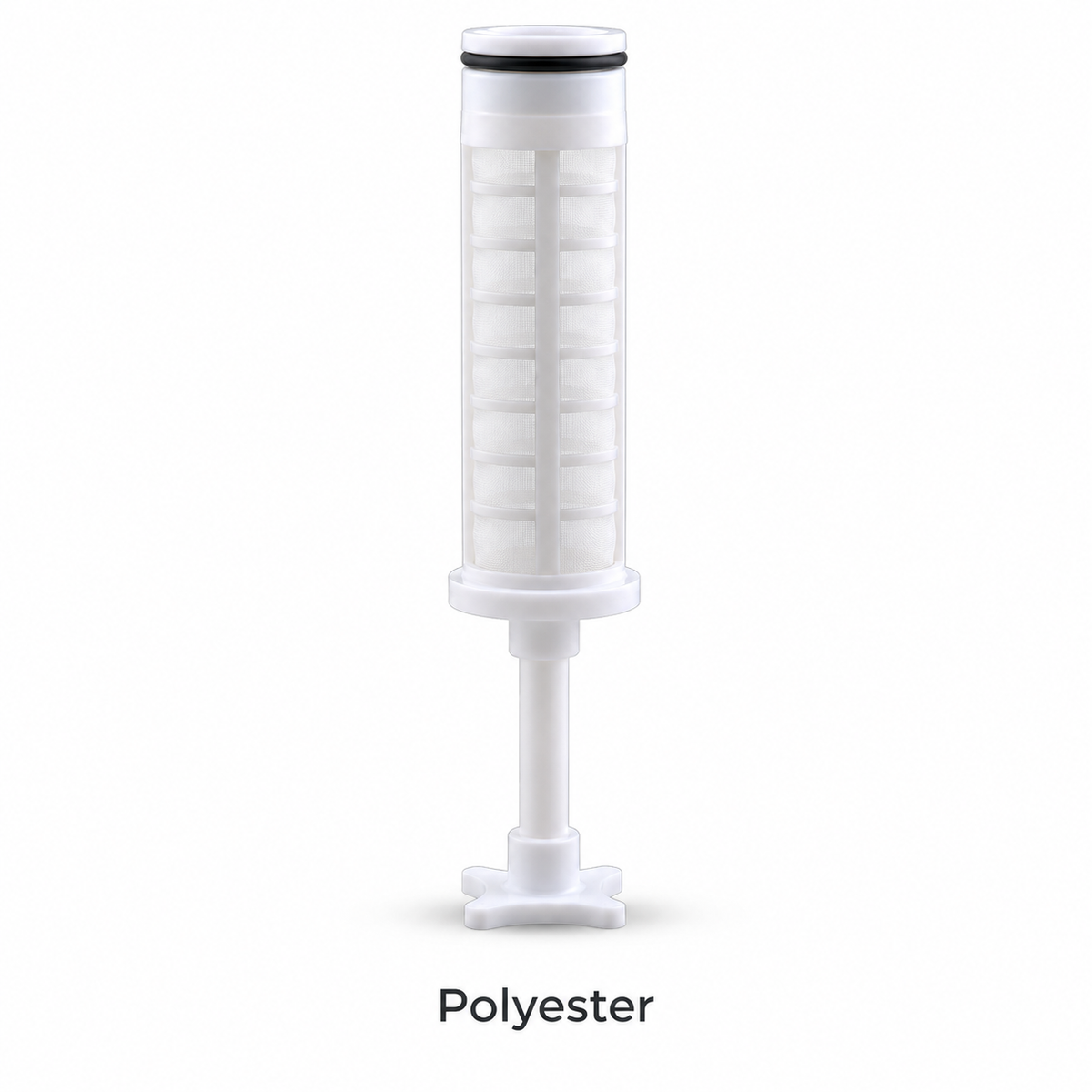

Replacement elements are available with polyester mesh or stainless steel mesh. Both media types are removable, washable, and reusable, allowing the element to be cleaned and returned to service.
The Sediment Trapper element uses an extended design that reaches into the lower collection area of the filter, providing space for captured sediment to settle below the filtration surface.
Multiple mesh ratings allow the filtration level to be matched to the sediment conditions of the water system. Lower mesh numbers provide larger openings for coarser sediment, while higher mesh numbers provide progressively finer filtration.
Key Features
| Feature | Verified Data |
|---|---|
| Manufacturer | Rusco |
| Product Type | Replacement Sediment Trapper Filter Element |
| Compatible Filter Size | 2" |
| Compatible Body Style | L-Series / L-Style |
| Filter Configuration | Sediment Trapper |
| Media Options | Polyester / Stainless Steel |
| Reusable | Yes — removable, washable and reusable |
| Polyester Mesh Options | 24, 30, 40, 60, 100, 140, 250, 500, 1000 |
| Stainless Steel Mesh Options | 30, 60, 100, 140, 200, 250, 500, 1000 |
Polyester L-Series Sediment Trapper SKUs
| Rusco SKU | Mesh | Approx. Micron | Opening |
|---|---|---|---|
| LFS2-24ST | 24 | 711 µm | .028" |
| LFS2-30ST | 30 | 533 µm | .021" |
| LFS2-40ST | 40 | 381 µm | .015" |
| LFS2-60ST | 60 | 254 µm | .010" |
| LFS2-100ST | 100 | 152 µm | .006" |
| LFS2-140ST | 140 | 104 µm | .004" |
| LFS2-250ST | 250 | 61 µm | .0024" |
| LFS2-500ST | 500 | 30 µm | .0012" |
| LFS2-1000ST | 1000 | 15 µm | .0006" |
Stainless Steel L-Series Sediment Trapper SKUs
| Rusco SKU | Mesh | Approx. Micron | Opening |
|---|---|---|---|
| LFS2-30STSS | 30 | 533 µm | .021" |
| LFS2-60STSS | 60 | 254 µm | .010" |
| LFS2-100STSS | 100 | 152 µm | .006" |
| LFS2-140STSS | 140 | 104 µm | .004" |
| LFS2-200STSS | 200 | 74 µm | .0029" |
| LFS2-250STSS | 250 | 61 µm | .0024" |
| LFS2-500STSS | 500 | 30 µm | .0012" |
| LFS2-1000STSS | 1000 | 15 µm | .0006" |
Product Highlights
- Designed for 2" Rusco L-Series Sediment Trapper filters
- Correct LFS2 replacement-element family
- Polyester and stainless steel media options
- Washable and reusable filter elements
- Multiple mesh sizes for coarse through fine sediment filtration
- Extended Sediment Trapper element design
- Replacement element allows servicing without replacing the complete filter assembly
Rusco Technical Documents
Rusco 2 Inch L-Series Sediment Trapper Replacement Filter Elements
