Rusco 1-1/2" L-Style Sediment Trapper Filter

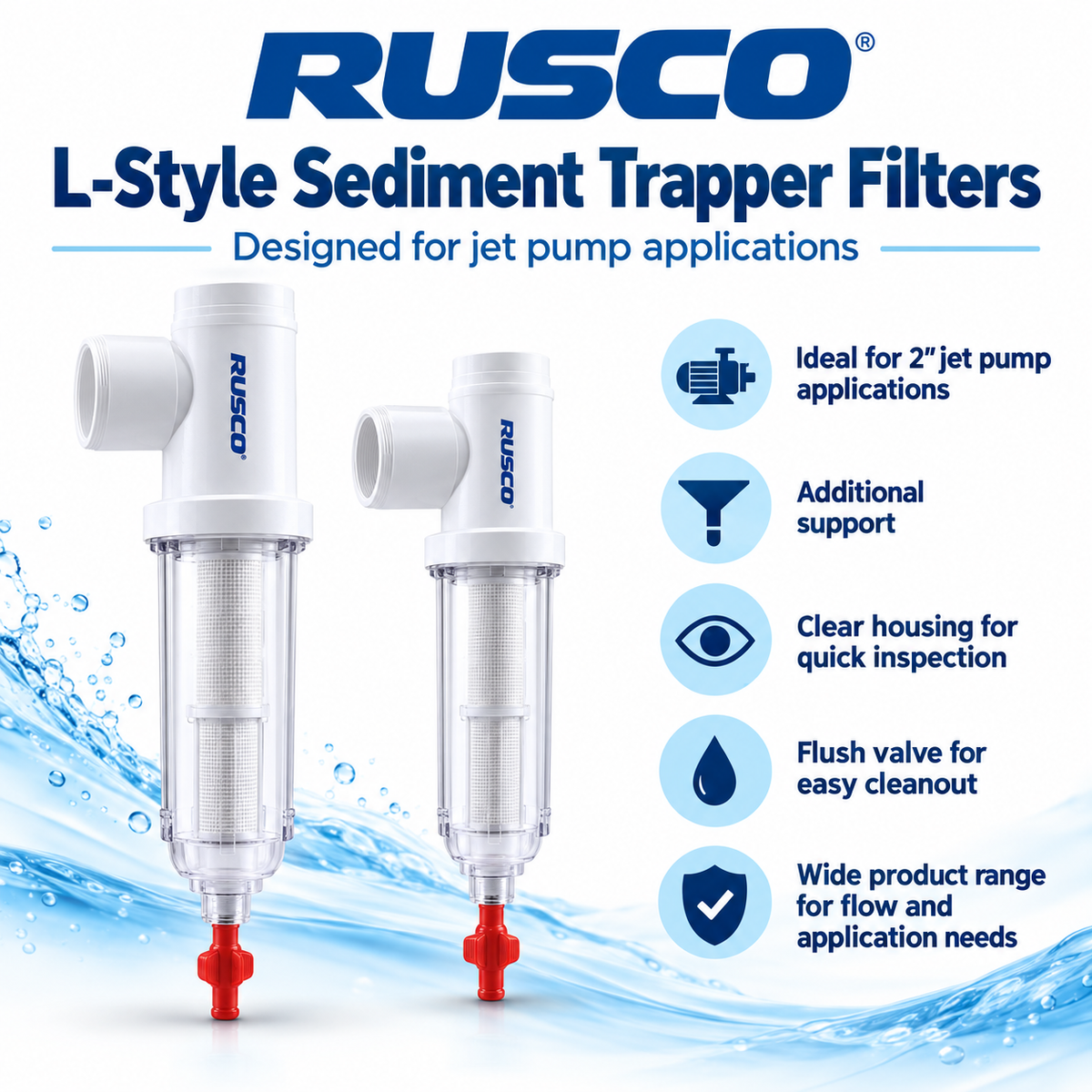

The Rusco 1-1/2" L-Style Sediment Trapper combines reusable sediment filtration with Rusco's specialized L-Style body configuration for jet pump applications.
Unlike the straight-through T-Style configuration, the L-Style body has the inlet on the side and the outlet on the top. This configuration is designed to accommodate plumbing arrangements commonly used with jet pump systems.
The Sediment Trapper element is designed to capture sand, sediment, scale, rust, and other suspended debris while providing additional sediment-holding capacity. Collected sediment can be flushed through the bottom valve for routine maintenance, and the reusable filter element can be cleaned and returned to service.
The 1-1/2" L-Style Sediment Trapper uses 1-1/2" slip connections and measures approximately 14-7/8" L × 4-1/2" W. Rusco lists flow ranges of 5–20 GPM for low-pressure (LP) applications and 15–40 GPM for high-pressure (HP) applications.
Standard L-Style Sediment Trapper models are available with polyester mesh or stainless steel mesh. Rusco also lists separate Chemical-Resistant stainless steel L-Style models.
Key Features
| Feature | Verified Data |
|---|---|
| Manufacturer | Rusco |
| Product Family | Sediment Trapper |
| Body Style | L-Style |
| Intended Application | Jet pump applications |
| Flow Path | Side inlet / Top outlet |
| Connection Size | 1-1/2" |
| Connection Type | Slip |
| Low-Pressure Flow Range | 5–20 GPM |
| High-Pressure Flow Range | 15–40 GPM |
| Product Dimensions | 14-7/8" L × 4-1/2" W |
| Standard Media Options | Polyester Mesh / Stainless Steel Mesh |
| Chemical-Resistant Option | Available with Stainless Steel Mesh |
| Reusable Element | Yes |
Standard Polyester L-Style Sediment Trapper SKUs
| SKU | Mesh | Approx. Micron |
|---|---|---|
| L 1.5 - 24 ST-F | 24 | 711 |
| L 1.5 - 30 ST-F | 30 | 533 |
| L 1.5 - 40 ST-F | 40 | 381 |
| L 1.5 - 60 ST-F | 60 | 254 |
| L 1.5 - 100 ST-F | 100 | 152 |
| L 1.5 - 140 ST-F | 140 | 104 |
| L 1.5 - 250 ST-F | 250 | 61 |
| L 1.5 - 500 ST-F | 500 | 30 |
| L 1.5 - 1000 ST-F | 1000 | 15 |

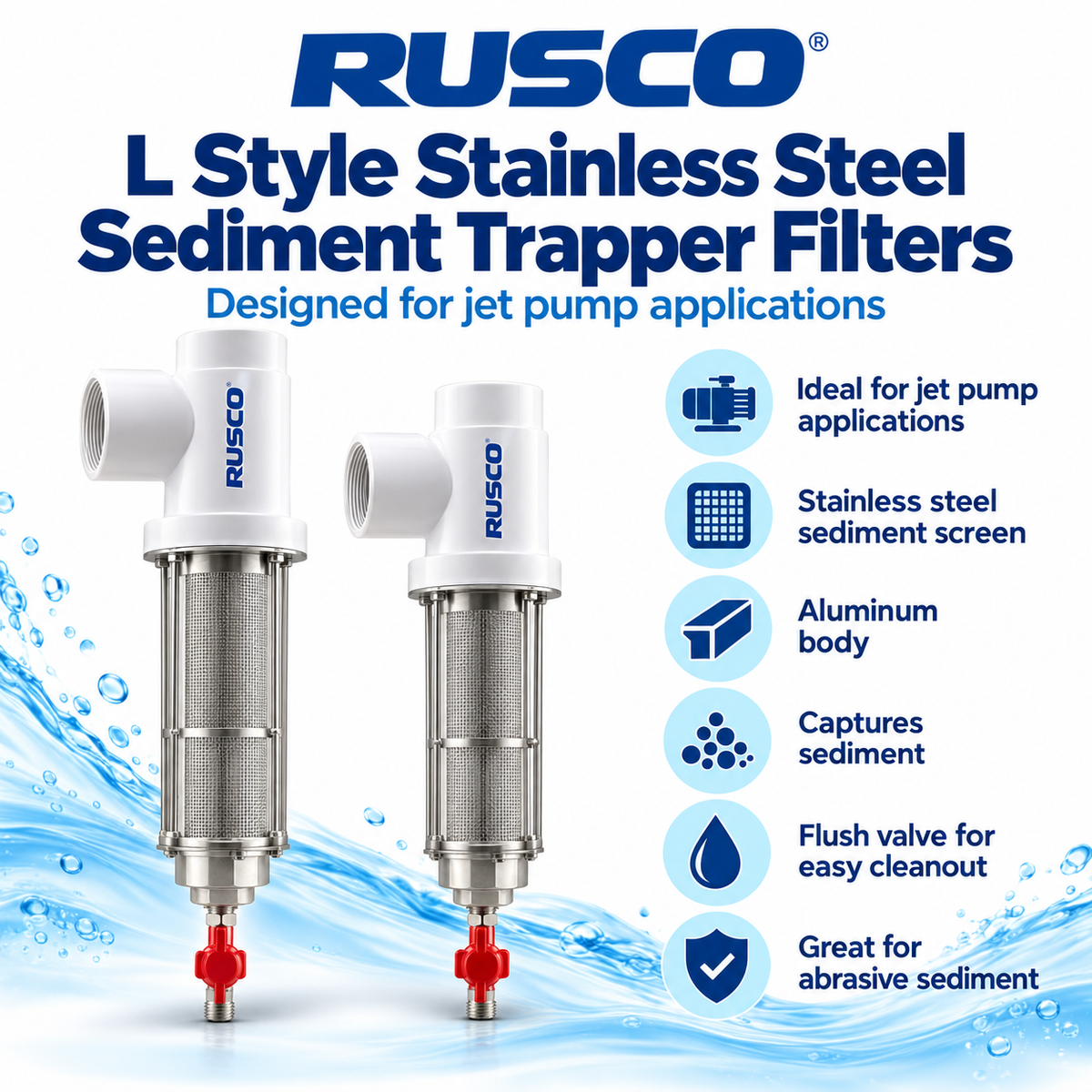

Standard Stainless Steel L-Style Sediment Trapper SKUs
| SKU | Mesh | Approx. Micron |
|---|---|---|
| L 1-1/2-30STSS-F | 30 | 533 |
| L 1-1/2-60STSS-F | 60 | 254 |
| L 1-1/2-100STSS-F | 100 | 152 |
| L 1-1/2-140STSS-F | 140 | 104 |
| L 1-1/2-200STSS-F | 200 | 74 |
| L 1-1/2-250STSS-F | 250 | 61 |
| L 1-1/2-500STSS-F | 500 | 30 |
| L 1-1/2-1000STSS-F | 1000 | 15 |
Chemical-Resistant Stainless Steel L-Style SKUs

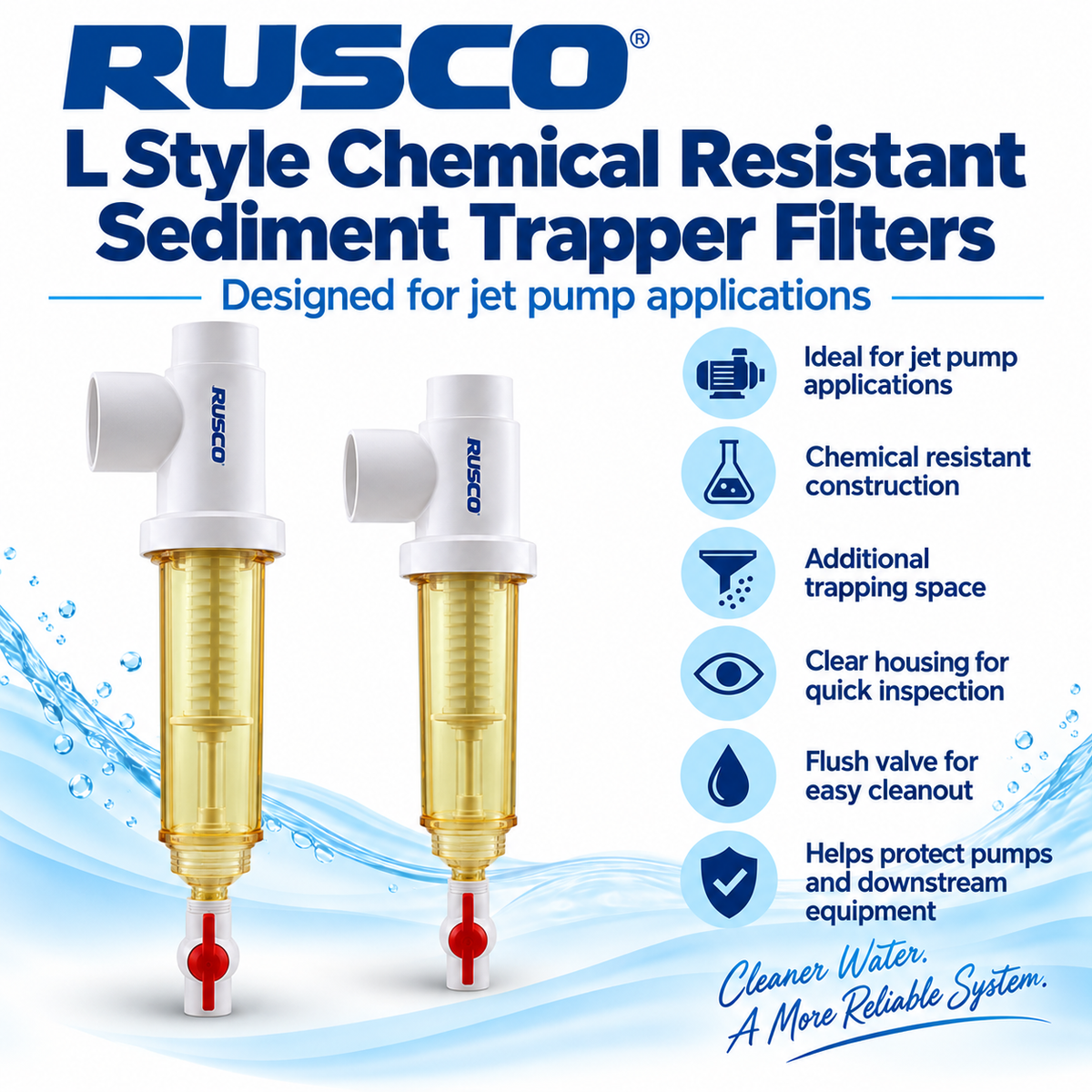

Rusco's Chemical-Resistant L-Style Sediment Trapper models combine stainless steel mesh filtration with a chemical-resistant filter cover.
| SKU | Mesh | Approx. Micron |
|---|---|---|
| L1.5-30STSS-CR-F | 30 | 533 |
| L1.5-60STSS-CR-F | 60 | 254 |
| L1.5-100STSS-CR-F | 100 | 152 |
| L1.5-140STSS-CR-F | 140 | 104 |
| L1.5-200STSS-CR-F | 200 | 74 |
| L1.5-250STSS-CR-F | 250 | 61 |
| L1.5-500STSS-CR-F | 500 | 30 |
| L1.5-1000STSS-CR-F | 1000 | 15 |
Product Highlights
| Highlight | Benefit |
|---|---|
| L-Style Configuration | Side inlet and top outlet for jet pump applications |
| Sediment Trapper Design | Provides additional sediment collection capacity |
| Reusable Element | Washable design reduces disposable filter replacement |
| Multiple Mesh Sizes | Allows filtration to be matched to sediment conditions |
| Stainless Steel Option | Available for more abrasive sediment applications |
| Chemical-Resistant Option | Available with stainless steel mesh and a chemical-resistant cover |
Typical Applications
- Jet pump water systems
- Residential well-water filtration
- Irrigation and agricultural systems
- Equipment and valve protection
- Sediment pre-filtration
- Chemically demanding applications using CR stainless models
