AV ScaleRX - ScaleRx IPS Redline Scale Prevention System (2" - 6" NPT & Flanged)

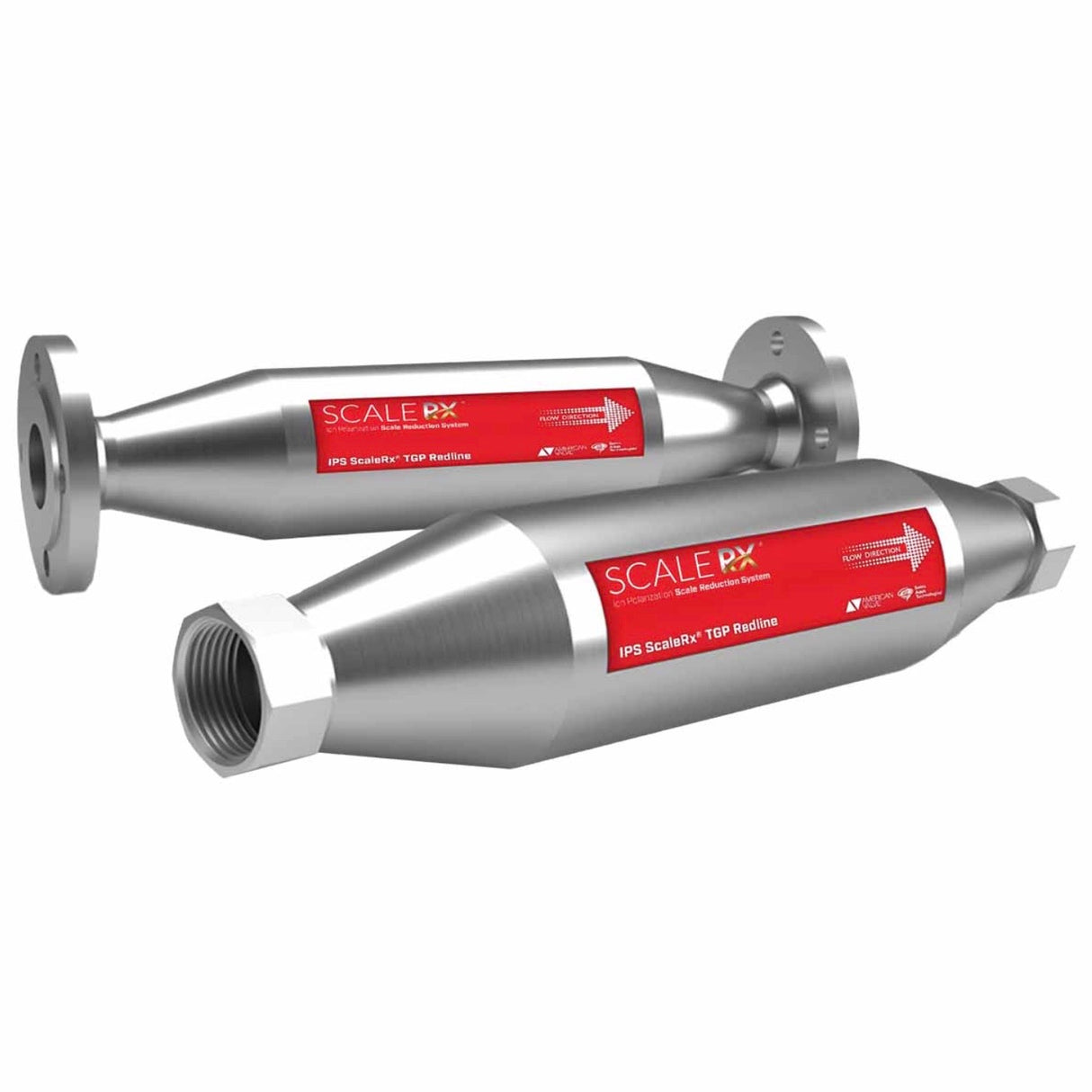

ScaleRx® IPS Redline Scale Prevention System – 2″ to 6″ NPT & Flanged

Advanced Limescale Protection for Commercial and Industrial Water Heating Systems

The ScaleRx® IPS Redline Series is engineered to protect water heating systems from damaging limescale buildup using patented TGP® (Turbulent Galvanic Polarization) technology. Designed for tank and tankless water heaters, this non‑powered solution prevents up to 76% of limescale deposits, improving energy efficiency, extending equipment life, and lowering operating costs in areas with moderate to severe hard water.

🔩 Available Models:

• 2″ NPT

• 2″ Flanged

• 2½″ Flanged

• 3″ Flanged

• 4″ Flanged

• 6″ Flanged

🛠️ Key Features:

• Protects water heaters, pipes, and fixtures by preventing limescale buildup

• Eliminates up to 76% of limescale on heating elements

• Works with tank and tankless water heaters, gas or electric

• Patented TGP® Technology creates turbulence and galvanic polarization to disrupt calcite crystal formation

• Non-powered, maintenance-free design—no chemicals, filters, or cartridges required

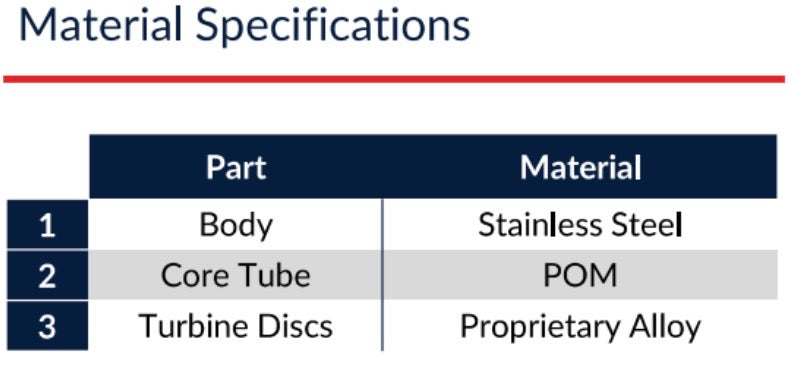

• Durable stainless steel construction withstands harsh environments

• Easy to install with NPT or flanged connections

• Minimal pressure drop—less than 1 GPM

💧 Ideal Applications:

Perfect for commercial, industrial, and institutional water heating systems, especially in regions with moderate to severe hard water. Suited for schools, hospitals, hotels, multifamily buildings, and manufacturing facilities.

✅ Why Choose ScaleRx® IPS Redline?

• Saves energy and operating costs by maintaining maximum heat transfer efficiency

• Extends water heater life by reducing scale-induced wear and corrosion

• Backed by a 12-year warranty for long-term reliability

• Compatible with any pipe type—copper, PEX, PVC, or CPVC

Warranty:

Five year limited warranty in potable water applications

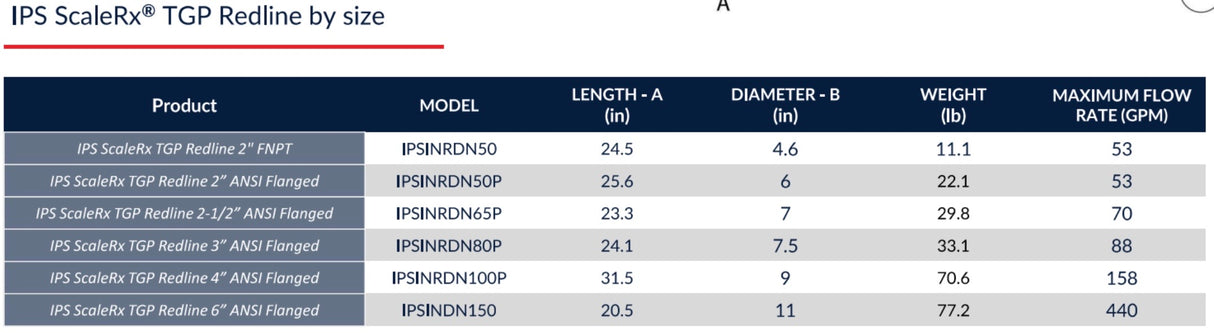

Technical Dimensions:

• Brochure
• Installation, Operation, & Maintenance Guide
