Schultz COALESCENT FILTERS FS Series (FS 0050 to FS 0925)

Coalescing Filters – FS Series (FS 0050 to FS 0925)

🔧 High-Efficiency Filtration

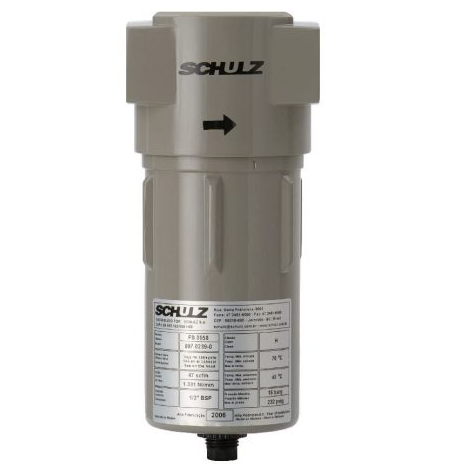

The Schulz FS Series Coalescing Filters are designed to deliver clean, dry, and contaminant-free compressed air for industrial and commercial applications. With models ranging from 1/2" up to 2-1/2" NPT connections, these filters withstand operating pressures up to 232 PSI, ensuring durability and consistent performance.

💨 Advanced Micron Protection
Each filter can be equipped with elements that remove particles down to 1 micron or 0.01 micron, along with activated carbon options for final air polishing. This ensures protection against solid particles, water, and oil aerosols—extending the life of your equipment and improving system efficiency.

⚡ Reliable Performance & Cost Savings
By eliminating contaminants before they reach your equipment, the FS Series reduces downtime, maintenance expenses, and energy losses. This results in lower operating costs while keeping your compressed air system at peak efficiency.

🌍 Versatile Applications
Perfect for point-of-use filtration or combined with air dryers, these filters are a smart choice for manufacturing, processing, and general industrial air systems.

✅ Available Models

• FS 0050 (1/2") – Compact filter, 47 CFM @ 100 PSI

• FS 0070 (3/4") – Mid-size filter, 70 CFM @ 100 PSI

• FS 0125 (1") – High-capacity filter, 125 CFM @ 100 PSI

• FS 0200 (1-1/2") – Reliable filter, 200 CFM @ 100 PSI

• FS 0340 (1-1/2") – Heavy-duty filter, 340 CFM @ 100 PSI

• FS 0470 (1-1/2") – Extra-capacity filter, 470 CFM @ 100 PSI

• FS 0615 (2") – Large-scale filter, 615 CFM @ 100 PSI

• FS 0925 (2-1/2") – Maximum capacity filter, 925 CFM @ 100 PSI

Technical Documents:

• Catalog
