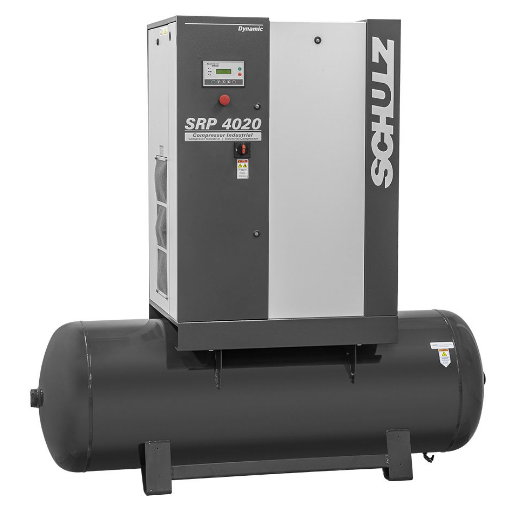

Schulz SRP-4020 R Dynamic Screw Compressor – Model 970.3903-0/V1
The Schulz SRP-4020 R Dynamic screw compressor delivers powerful, quiet, and reliable compressed air for industrial applications where performance and space efficiency are critical. This 20 HP unit operates at 208–230 V, producing 125 PSI at 74 CFM and running continuously at 120 RPM. Engineered for 24/7 operation in ambient temperatures up to 113 °F, it features a three-phase IP55 Totally Enclosed Electric motor and a high-efficiency air filter to provide clean, high-quality compressed air. The Dynamic line’s microprocessor controller monitors performance, signals system failures, and supports both local and remote operation for maximum convenience and reliability.
🛠️ Specifications
-
Model: 970.3903-0/V1
-
Type: SRP-4020 R Dynamic Screw Compressor
-
Horsepower: 20 HP
-
Voltage: 208–230 V
-
Pressure: 125 PSI
-
Airflow: 74 CFM
-
RPM: 120
-
Phase: Three-phase IP55 TEFC motor
⚙️ Features
-
Continuous 24-hour operation in ambient temperatures up to 113 °F
-
High-efficiency filter for improved compressed air quality
-
Microprocessor controller for monitoring and fault signaling
-
Local and remote operation capability
-
Quiet, compact design for spaces with limited access
Technical Documents:
Disclaimer: Must be installed by a licensed contractor or warranty is void.
