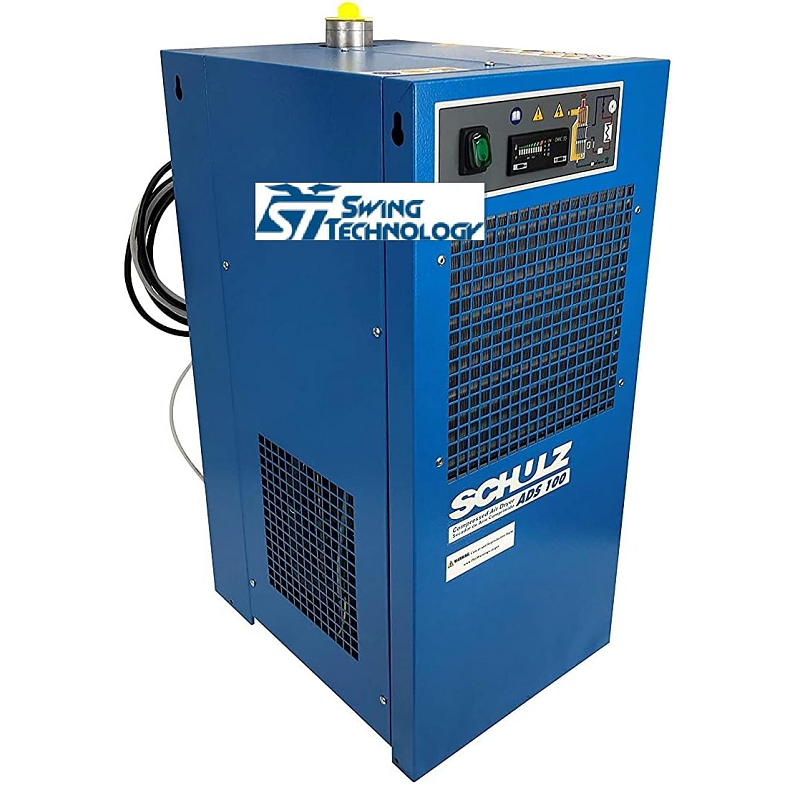

Schulz of America ADS-100 Non-Cycling Refrigerated Air Dryer

ADS Schulz Air Dryers – Easy Maintenance & Reliable Performance

The ADS Schulz line of air dryers is designed to facilitate inspection and maintenance operations. The panels are easily removable, allowing immediate access to internal components. ADS Schulz dryers feature a quick-disconnect automatic drain valve that requires no special tools for maintenance and cleaning. The dryer’s operation is monitored by an electronic controller, which digitally displays temperature and dew point, controls the drain valve through a timer, and regulates the condenser fan via a probe. Refrigerant circulation is managed by high-efficiency compressors for optimal drying performance.

📝 Important Details

• Requires a minimum 1 micron pre-filter/separator to remove heavy moisture and debris

• Always install dryers in a vertical position

• Operation and maintenance instructions included

• Dew Point: 41°F

• Nominal inlet air pressure: 100 PSI

• Maximum ambient temperature: 32°F min to 113°F max

• ISO 14001 certified

🛠️ Recommended Filters

• Pre Filter: 1 micron, Model #007 0250-0 | 1-1/4"

• After Filter: 0.01 micron, Model #007 0251-0 | 1-1/4"

⚠️ Important Notice

Refrigerated air dryers must be used together with a minimum 5 micron particulate filter, water separator, or coalescing filter. It is crucial to remove pooling liquid water from compressed air lines before the air enters the dryer to ensure proper operation and avoid damage.

🚚 Shipping & Delivery:

• Free Shipping Throughout the Continental U.S.

Performance Specifications:

Documents and guides:

• Technical Documents
