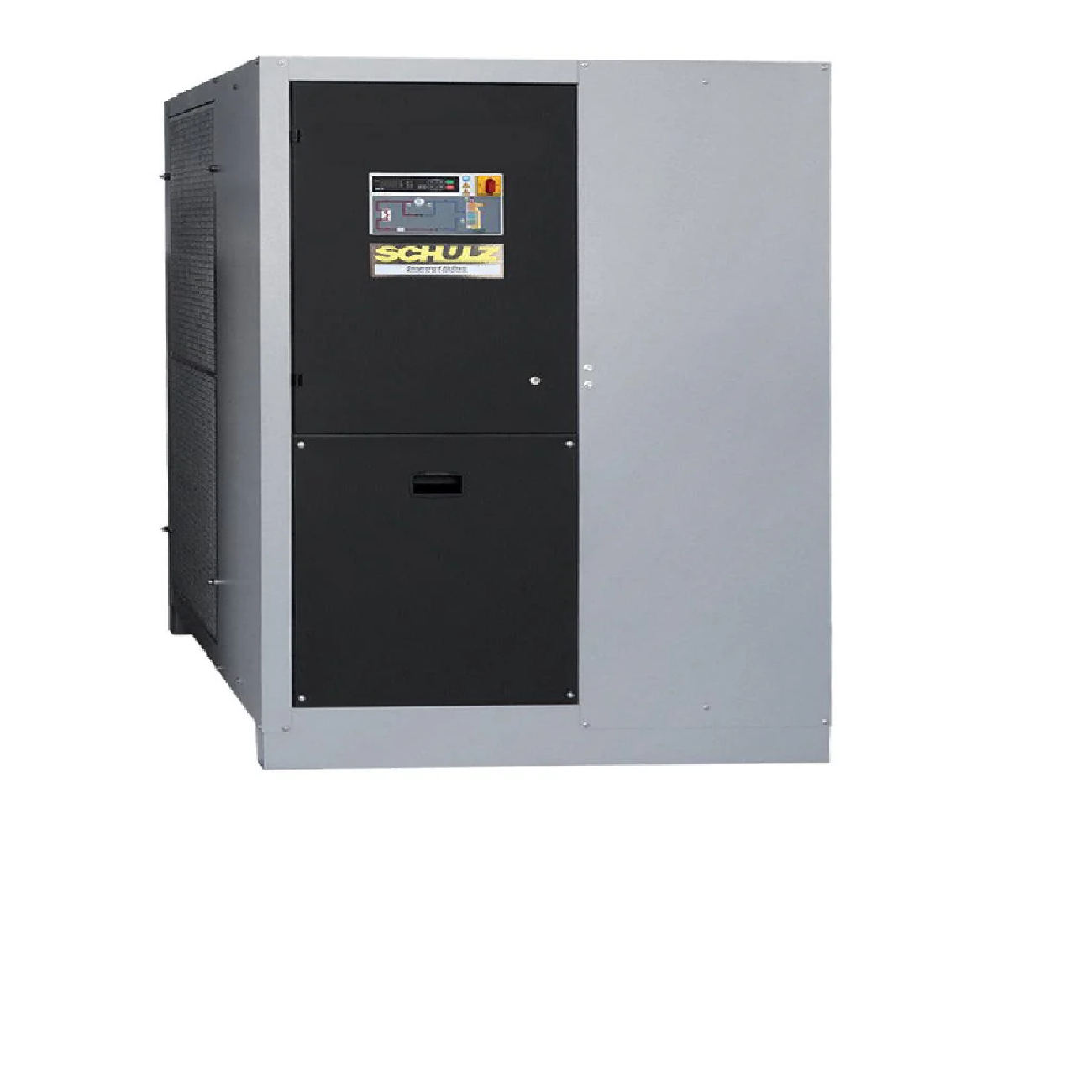

Schulz SACT3000-UR Refrigerated Air Dryer
Most Items Ship Same Day
(Warranty, Return and Refunds)
Schulz high-capacity dryers have been developed for applications requiring airflow above 500 cfm and inlet temperature up to 160 °F and room temperature up to 120 °F. The cooling system of this dryer uses aluminum to increase its performance. The digital controller, innovative hot gas by-pass valve and zero loss system ensure stable dew point under different load conditions. Removable panels facilitate easy and quick access to internal components and the scheduled management function for maintenance operations provides greater user convenience. The large sections of air flow through the dryer enable extremely low load losses which, combined with the scroll compressor, emit less noise and reduce the system’s power consumption. Select the best option for your company.
SACT HIGH- CAPACITY AIR DRYERS ALUMINIUM TECHNOLOGIES DIRECT TO ENERGY SAVING
- DMC 24 Digital Controller
- ALU-DRY aluminum heat exchanger
- High efficiency compressor
- Tropicalized air condenser
- Condenser protection filter
- High efficiency fan(s)
- Water condenser
- High discharge temperature switch
- Automatic condensing pressure control
- High and low refrigerant safety pressure switch
- Automatic hot gas bypass control
- Zero loss drain
Schulz improves its range of compressed air dryers with the development of the SACT series (Aluminum Cooling Technology), focused to reduce energy consumption.
Main feature is:
- Low pressure drops even with load variances
- Low power consumption thanks to the ALU-DRY heat exchanger, high efficiency compressors, innovative hot gas bypass valve and zero loss drain condensate system
- Constant pressure Dew Point with differing load conditions
- Functionally even at maximum working conditions (air inlet 160°F and ambient 120°F).
Pre Filter - 1 micron, Model: C/F Conn: Flg ANSI 6"
After Filter - .01-micron, Model C/F Conn: Flg ANSI 6"
SACT HIGH- CAPACITY AIR DRYERS ALUMINIUM TECHNOLOGIES DIRECT TO ENERGY SAVING
Performance Specifications:
| Item Number: SACT3000-UR |
| Flow (CFM): 3000 |
| Connection (in): Flg ANSI 6" |
| Volts: 460/3/60 |
| Refrigerant Fluid: R407C |
| Frequency (Hz): 60 |
