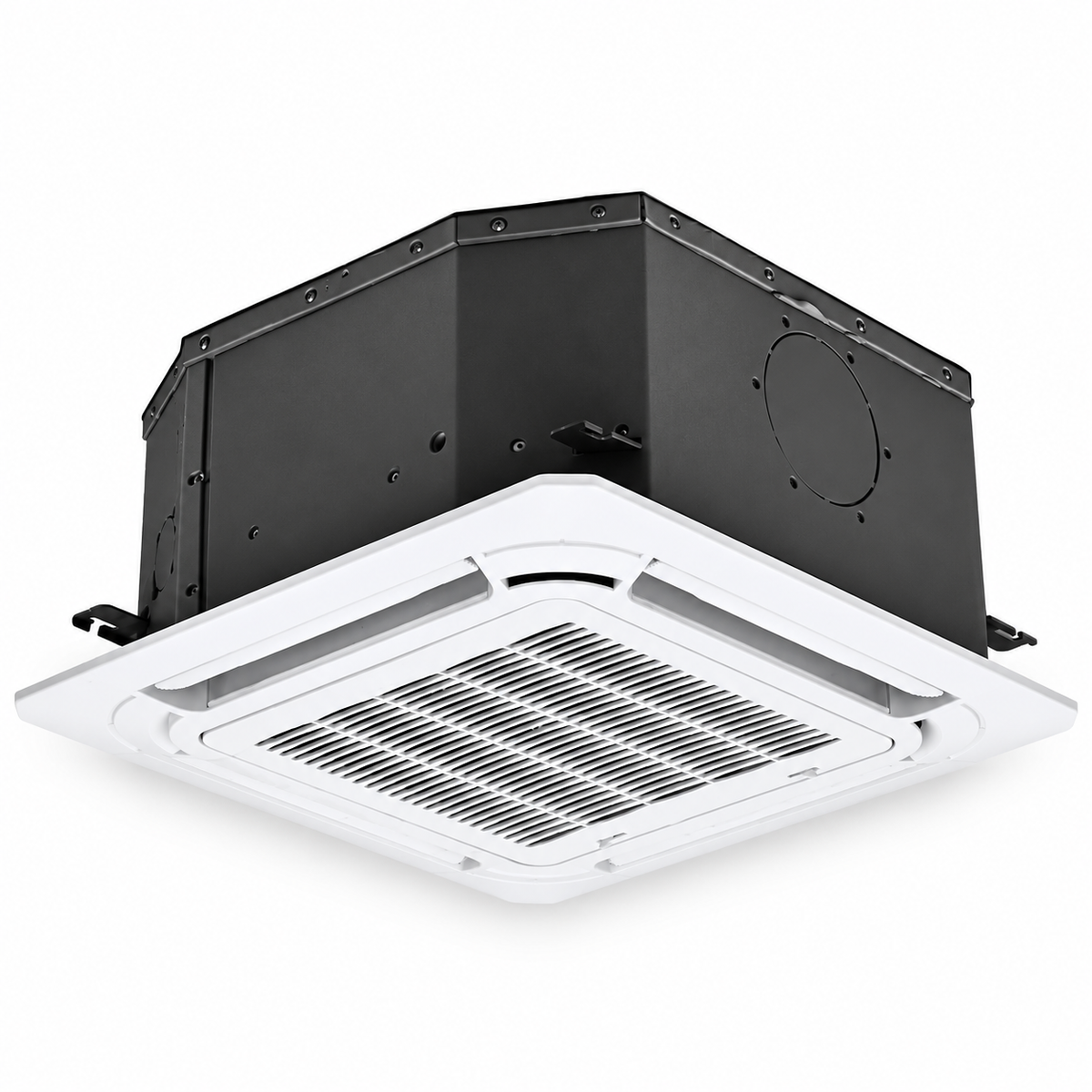

Senville AURA 4-Way Ceiling Cassette Indoor Units
Senville AURA 4-Way Ceiling Cassette Indoor Units - 9000 is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.
The Senville AURA 4-Way Ceiling Cassette Indoor Unit delivers comfortable heating and cooling from a discreet recessed ceiling installation. Its four-way airflow design distributes conditioned air throughout the room while keeping the indoor unit largely out of sight, making it a strong choice for residential and light-commercial spaces where wall-mounted equipment is not preferred.
Available in 9,000, 12,000, 18,000, and 24,000 BTU capacities, the current ICG family is designed for compatible R454B Senville AURA systems.
Senville AURA 4-Way Ceiling Cassette Key Features
| Feature | Details |
|---|---|
| Manufacturer | Senville |
| Series | AURA |
| Product Type | 4-Way Ceiling Cassette Indoor Unit |
| Capacities | 9K / 12K / 18K / 24K BTU |
| Refrigerant Generation | R454B |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Air Distribution | 4-Way / 360° Airflow |
| Installation | Recessed Ceiling |
| Louver Control | Individual / Auto-Swing |
| Heating & Cooling | Yes, with compatible outdoor unit |
| Application | Residential & Light Commercial |
| Ceiling Panel | Sold Separately |
Senville AURA 4-Way Ceiling Cassette Technical Specifications
| SKU | Capacity | Product Dimensions | Product Weight |
|---|---|---|---|
| SENA-09HF-ICG | 9,000 BTU | 22.44 × 22.44 × 9.65 in | 35.27 lb |
| SENA-12HF-ICG | 12,000 BTU | Verify with Manufacturer | Verify with Manufacturer |
| SENA-18HF-ICG | 18,000 BTU | 22.44 × 22.44 × 9.65 in | 35.27 lb |
| SENA-24HF-ICG | 24,000 BTU | 32.68 × 32.68 × 8.07 in | 47.18 lb |
Senville AURA 4-Way Ceiling Cassette System Requirements
| Requirement | Details |
|---|---|
| Refrigerant | R454B |
| Indoor Unit Type | 4-Way Ceiling Cassette |
| Power | 208/230V, Single Phase, 60Hz |
| Cassette Panel | Not Included |
| System Requirement | Compatible Senville AURA outdoor unit required |
Senville AURA 4-Way Ceiling Cassette Compatibility
Senville AURA 4-Way Ceiling Cassette Product Highlights
- Clean, recessed ceiling installation
- Four-way airflow for even room coverage
- Available from 9,000 to 24,000 BTU
- Heating and cooling when properly matched
- Quiet EC blower design
- Individual louver control
- Auto-swing airflow
- Current R454B ICG generation
- Ideal where wall-mounted indoor units are not desired
- Suitable for residential and light-commercial applications
- Decorative cassette panel sold separately
Senville AURA 4-Way Ceiling Cassette Technical Documents
