Senville AURA Mini Split Replacement Outdoor Units
Senville AURA Mini Split Replacement Outdoor Units - 6000 is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.

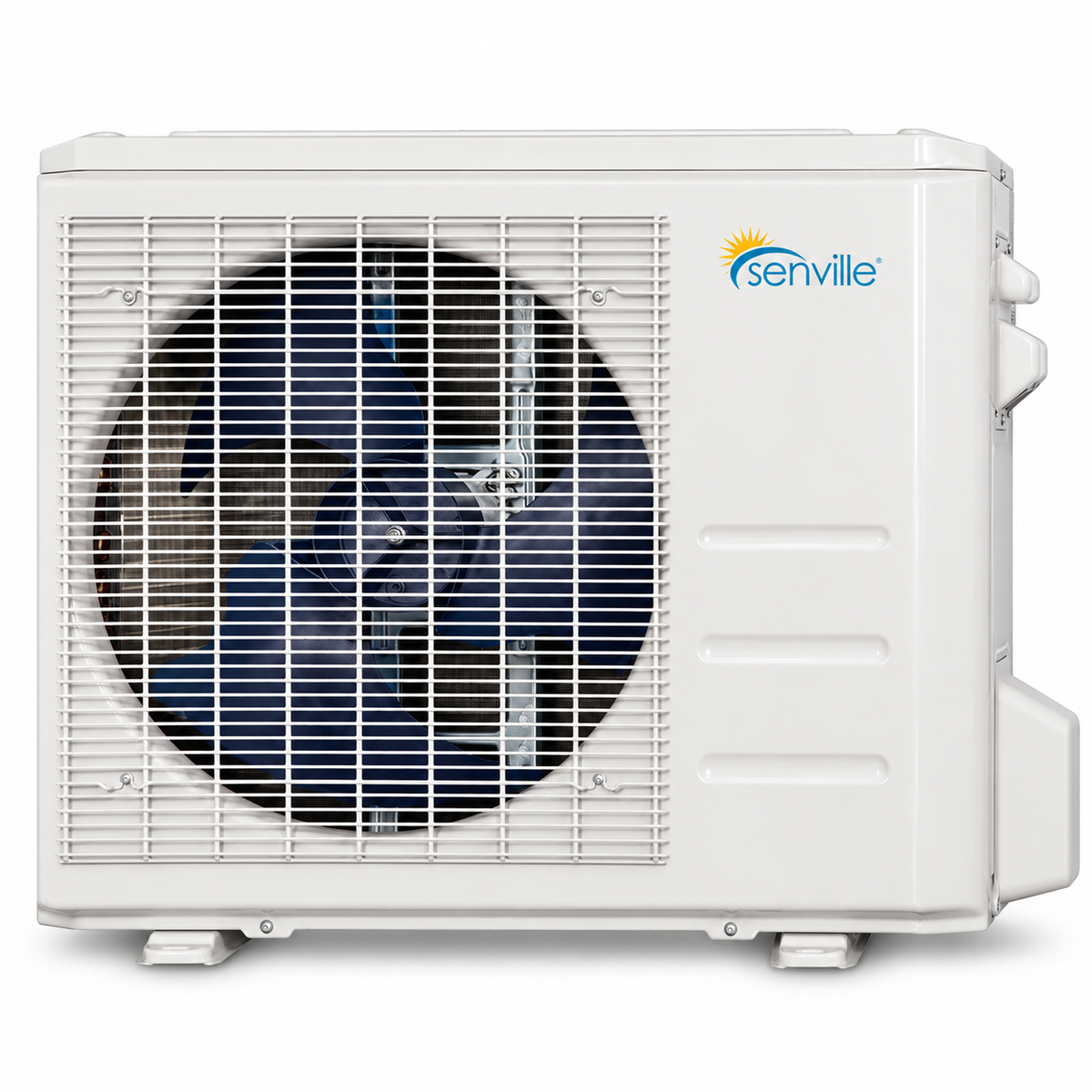

The Senville AURA Replacement Outdoor Unit is designed for compatible AURA mini split heat pump systems and is available in capacities from 6,000 to 33,000 BTU. These outdoor condensers use inverter-driven compressor technology to provide efficient heating and cooling when matched with the correct Senville AURA indoor unit.
Each model operates on 208/230V single-phase power and belongs to Senville’s current R454B AURA generation. Select the exact capacity required for your existing system and verify compatibility before ordering.
Senville AURA Replacement Outdoor Unit Key Features
| Feature | Details |
|---|---|
| Manufacturer | Senville |
| Series | AURA |
| Product Type | Replacement Outdoor Heat Pump / Condenser |
| Available Capacities | 6,000–33,000 BTU |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Refrigerant Generation | R454B |
| Compressor | Inverter-Driven |
| Heating & Cooling | Yes, when properly matched |
| Installation Location | Outdoor |
| Application | Replacement component for compatible Senville AURA systems |
Senville AURA Replacement Outdoor Unit Technical Specifications
| SKU | Capacity | Product Dimensions W × D × H |
Product Weight |
|---|---|---|---|
| SENA-06HF-OG | 6,000 BTU | 30.12 × 11.93 × 21.85 in | 62.17 lb |
| SENA-09HF-OG | 9,000 BTU | 28.74 × 11.02 × 19.49 in | 66.14 lb |
| SENA-12HF-OG | 12,000 BTU | 30.31 × 12.20 × 21.65 in | 82.67 lb |
| SENA-18HF-OG | 18,000 BTU | 33.27 × 14.29 × 27.64 in | 101.41 lb |
| SENA-24HF-OG | 24,000 BTU | 37.24 × 16.14 × 31.89 in | 130.29 lb |
| SENA-33HF-OG | 33,000 BTU | 38.60 × 16.10 × 33.10 in | 140.00 lb |
Senville AURA Replacement Outdoor Unit System Requirements
| Requirement | Details |
|---|---|
| Refrigerant | R454B |
| Power Supply | 208/230V, 1Ph, 60Hz |
| System Type | Ductless Mini Split Heat Pump |
| Configuration | Outdoor Condenser |
| Compatibility | Must be matched with an approved Senville AURA indoor unit |
Senville AURA Replacement Outdoor Unit Compatibility
Senville AURA Replacement Outdoor Unit Product Highlights
- Genuine Senville AURA replacement outdoor unit
- Six capacities from 6,000 to 33,000 BTU
- Inverter-driven compressor technology
- Provides both heating and cooling when correctly matched
- 208/230V single-phase operation
- Current R454B AURA generation
- Designed for outdoor installation
- Compatible with approved Senville AURA indoor units
- Available for residential and light-commercial mini split applications
Senville AURA Replacement Outdoor Unit Technical Documents
Senville AURA Mini Split Replacement Outdoor Units
