Description
The Senville AURA One-Way Cassette Mini Split Heat Pump family combines a recessed ceiling cassette with a matched outdoor heat pump for single-zone heating and cooling. Its narrow indoor profile directs conditioned air into the room while preserving wall space.
Choose a 9,000, 12,000 or 18,000 BTU nominal capacity, with no installation kit, a 16 ft kit or a 25 ft kit. Both indoor and outdoor equipment are included; the selected kit determines the supplied refrigerant line-set length.
These systems use R-454B refrigerant and 208/230V, single-phase, 60 Hz power. Senville lists cold-weather heating operation down to −22°F / −30°C. Heating output varies with outdoor conditions, and professional sizing and installation are required.
Key Features
| Feature | Details |
|---|---|
| Manufacturer / series | Senville / AURA |
| System type | Complete single-zone mini split heat pump |
| Indoor style | One-way ceiling cassette |
| Outdoor heat pump | Included |
| Nominal capacities | 9,000 / 12,000 / 18,000 BTU |
| Compressor technology | DC inverter |
| Refrigerant | R-454B |
| Power supply | 208/230V, single phase, 60 Hz |
| Controls | Remote and controls supplied with the system |
| Installation kit selections | None / 16 ft / 25 ft |
| Professional installation | Required |
Capacity & Efficiency
Nominal sizes identify the model family. Rated capacities and efficiency values below follow Senville's technical comparison table. Confirm the exact supplied indoor/outdoor combination and current AHRI certificate before relying on certification or rebate eligibility.
| Specification | 9,000 BTU | 12,000 BTU | 18,000 BTU |
|---|---|---|---|
| Base model | SENA-09HF-1WC | SENA-12HF-1WC | SENA-18HF-1WC |
| Rated cooling capacity | 9,000 BTU/h | 12,000 BTU/h | 16,700 BTU/h |
| Rated heating capacity | 10,900 BTU/h | 12,500 BTU/h | 20,000 BTU/h |
| SEER2 | 24.0 | 23.0 | 20.6 |
| EER2 | 14.6 | 13.0 | 12.5 |
| HSPF2 Region IV | 12.1 | 10.0 | 12.2 |
| COP | 3.71 | 3.56 | 3.01 |
| Liquid line | 1/4 in. | 1/4 in. | 1/4 in. |
| Gas line | 3/8 in. | 3/8 in. | 1/2 in. |
Product Highlights
- Recessed ceiling installation preserves wall space.
- One-way airflow delivers heating and cooling to a single zone.
- Inverter-driven outdoor equipment adjusts output as conditions change.
- Cold-weather heating operation listed down to −22°F / −30°C.
- Indoor and outdoor units are included in each complete system.
- Choose the installation-kit configuration that fits the planned piping route.
Installation Kit Options
NL means no installation kit. The 16 and 25 suffixes identify kit length in feet. Indoor and outdoor equipment remain included with the NL option.
9,000 BTU
| Installation kit | SKU |
|---|---|

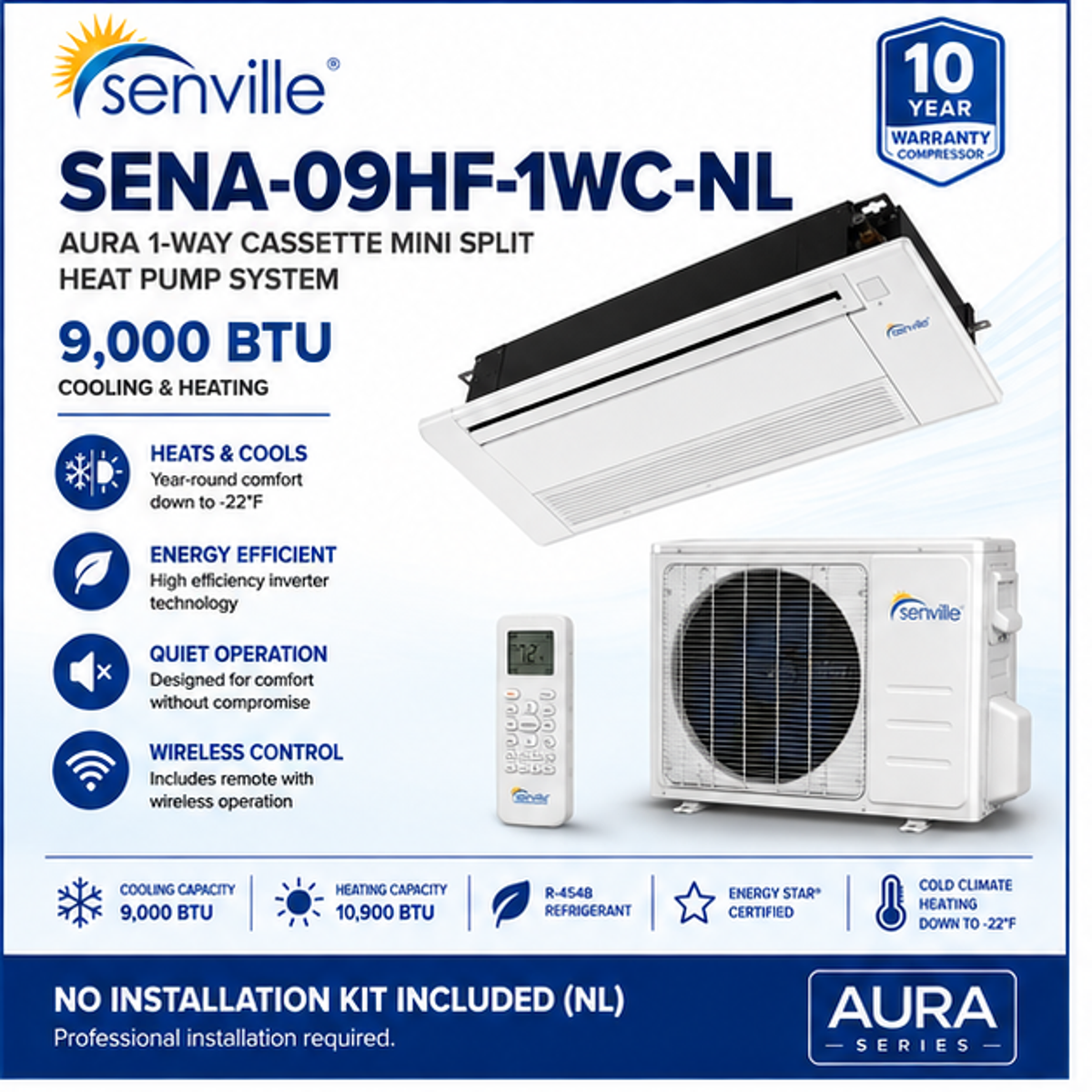

| No kit | SENA-09HF-1WC-NL |

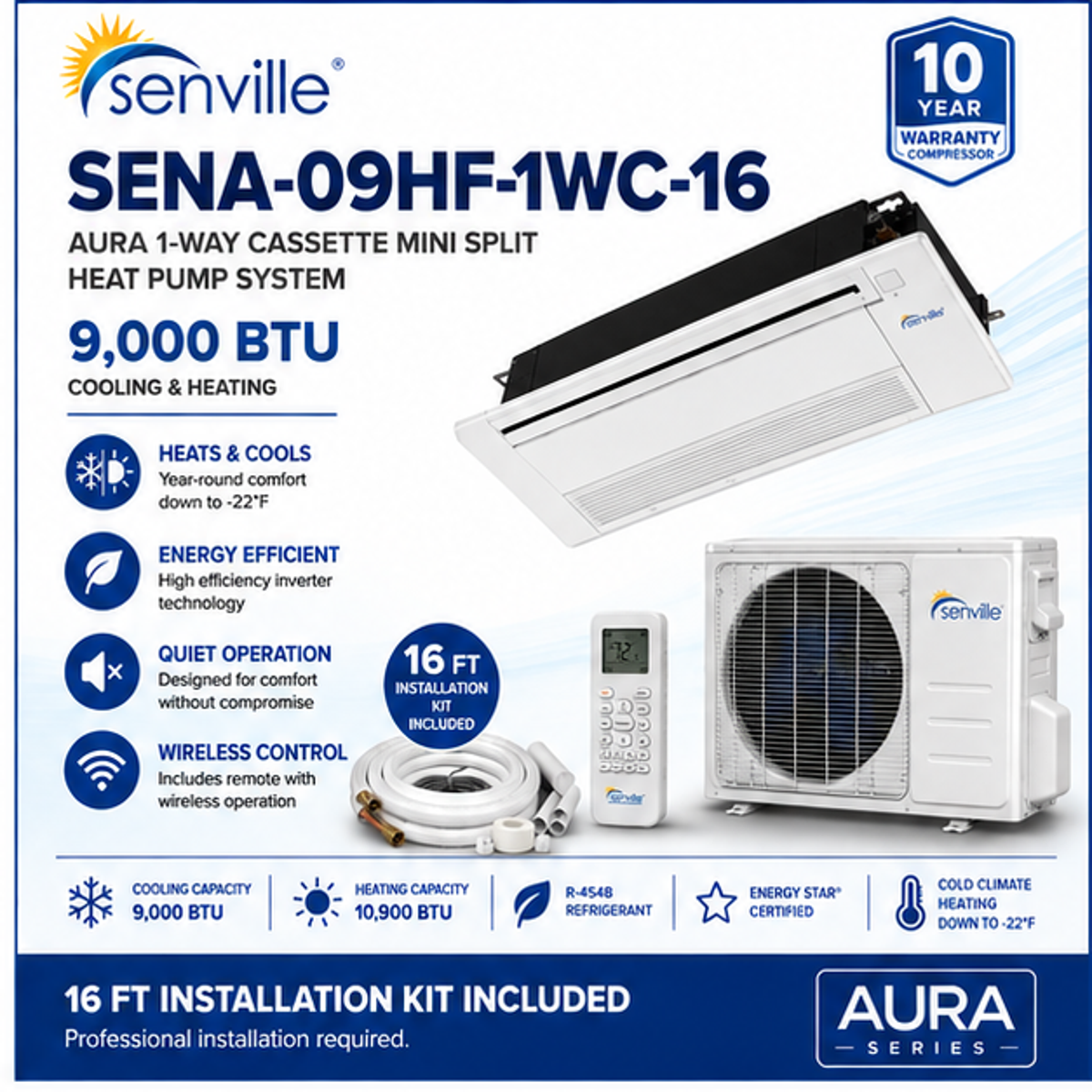

| 16 ft kit | SENA-09HF-1WC-16 |

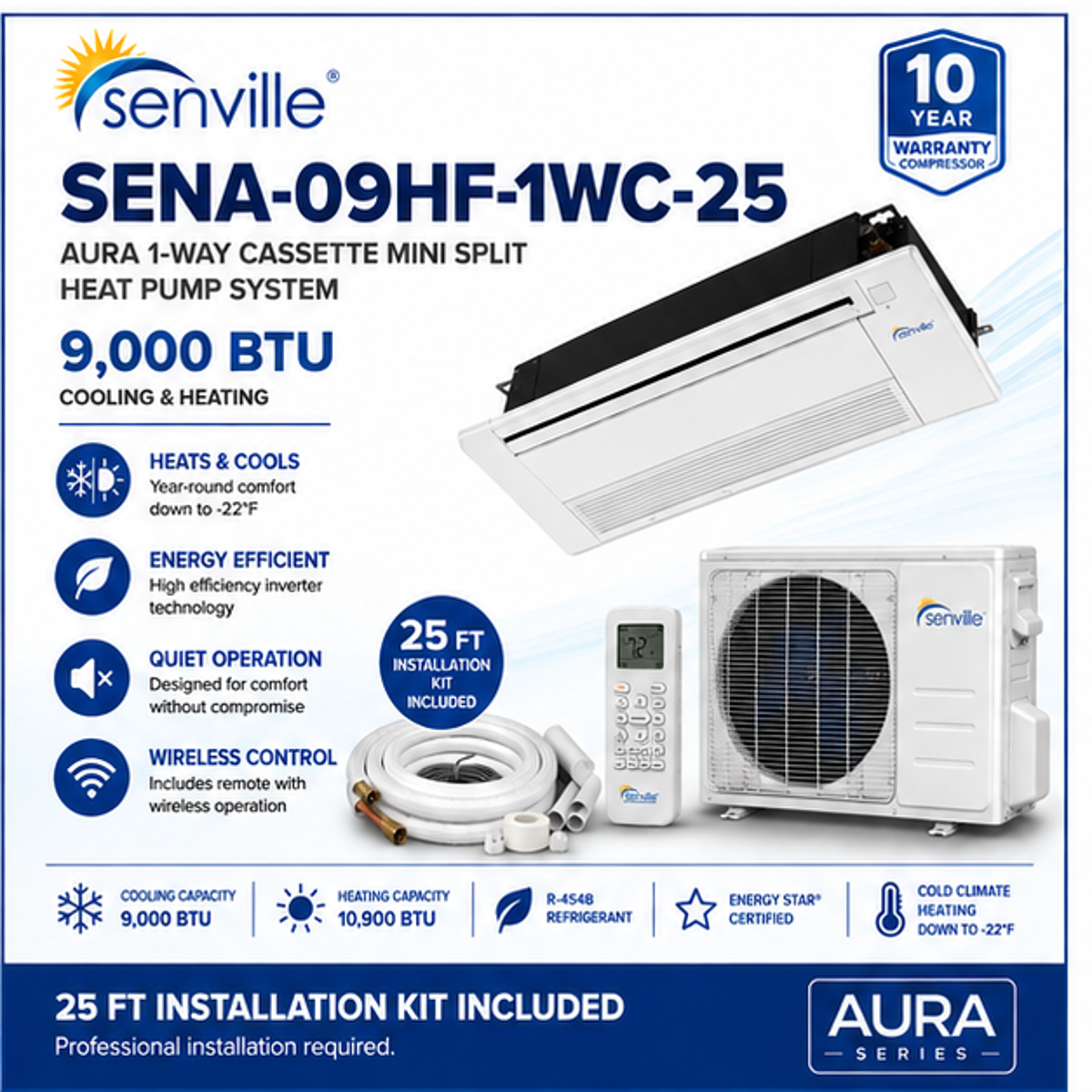

| 25 ft kit | SENA-09HF-1WC-25 |
12,000 BTU
| Installation kit | SKU |
|---|---|

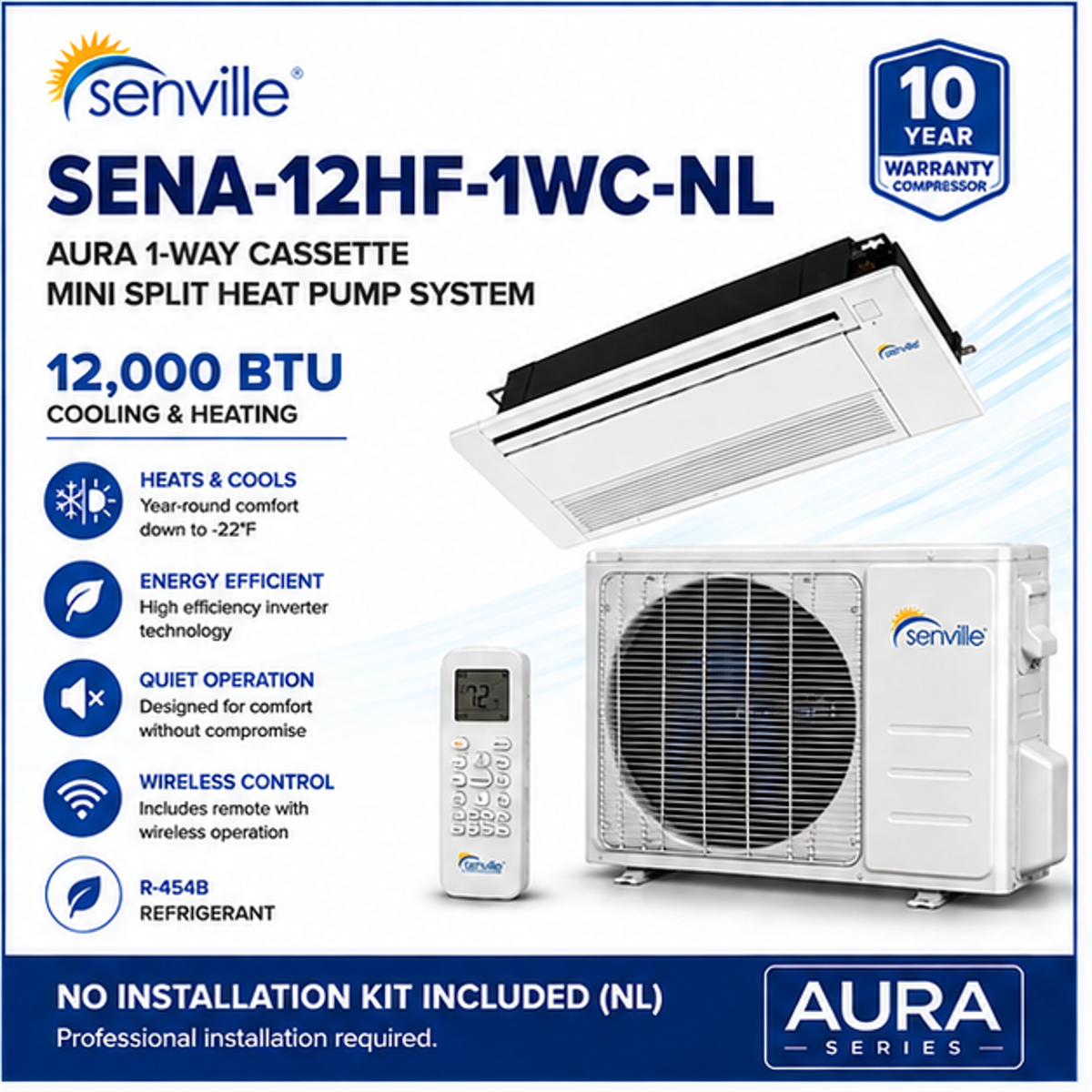

| No kit | SENA-12HF-1WC-NL |
| 16 ft kit | SENA-12HF-1WC-16 |
| 25 ft kit | SENA-12HF-1WC-25 |
18,000 BTU
| Installation kit | SKU |
|---|---|

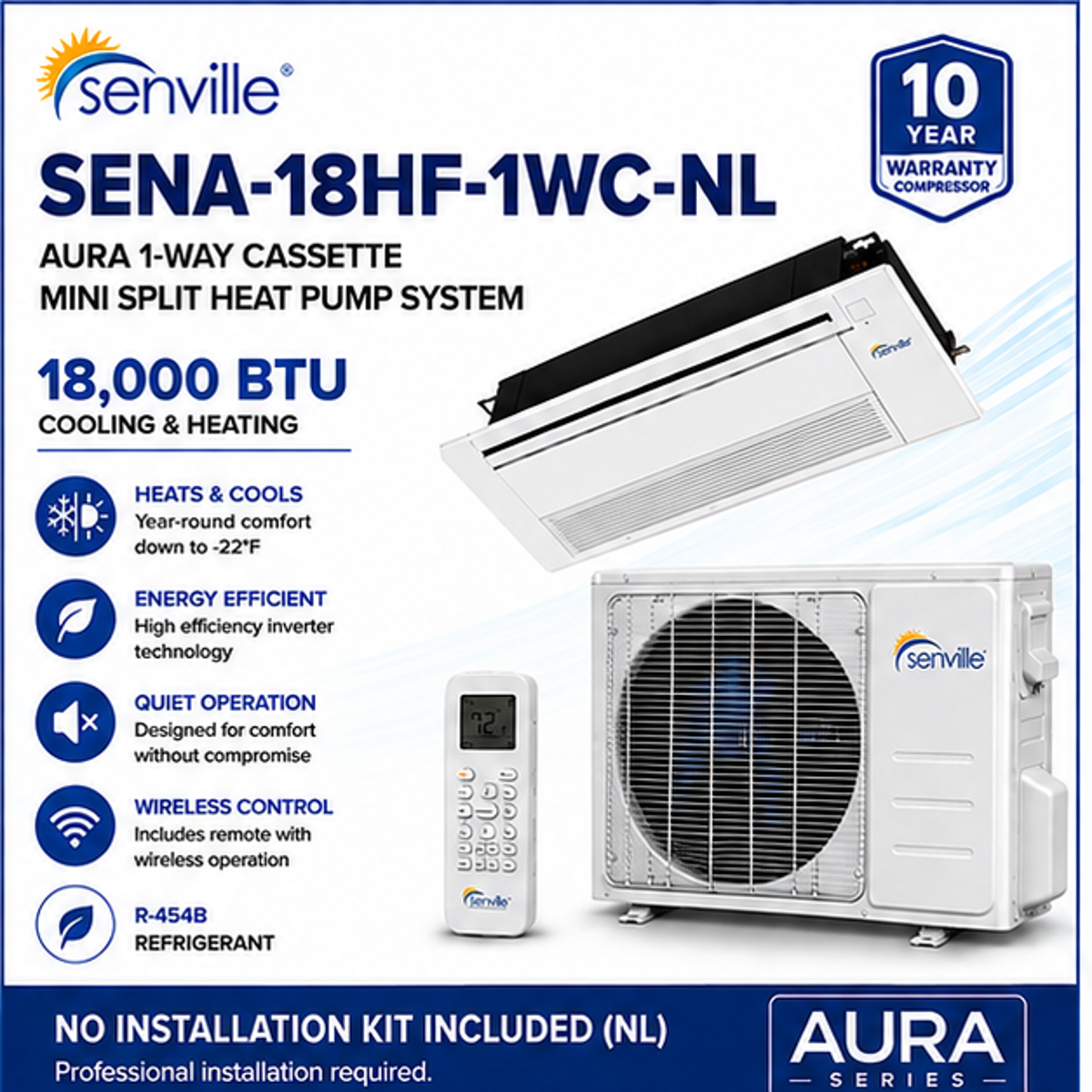

| No kit | SENA-18HF-1WC-NL |

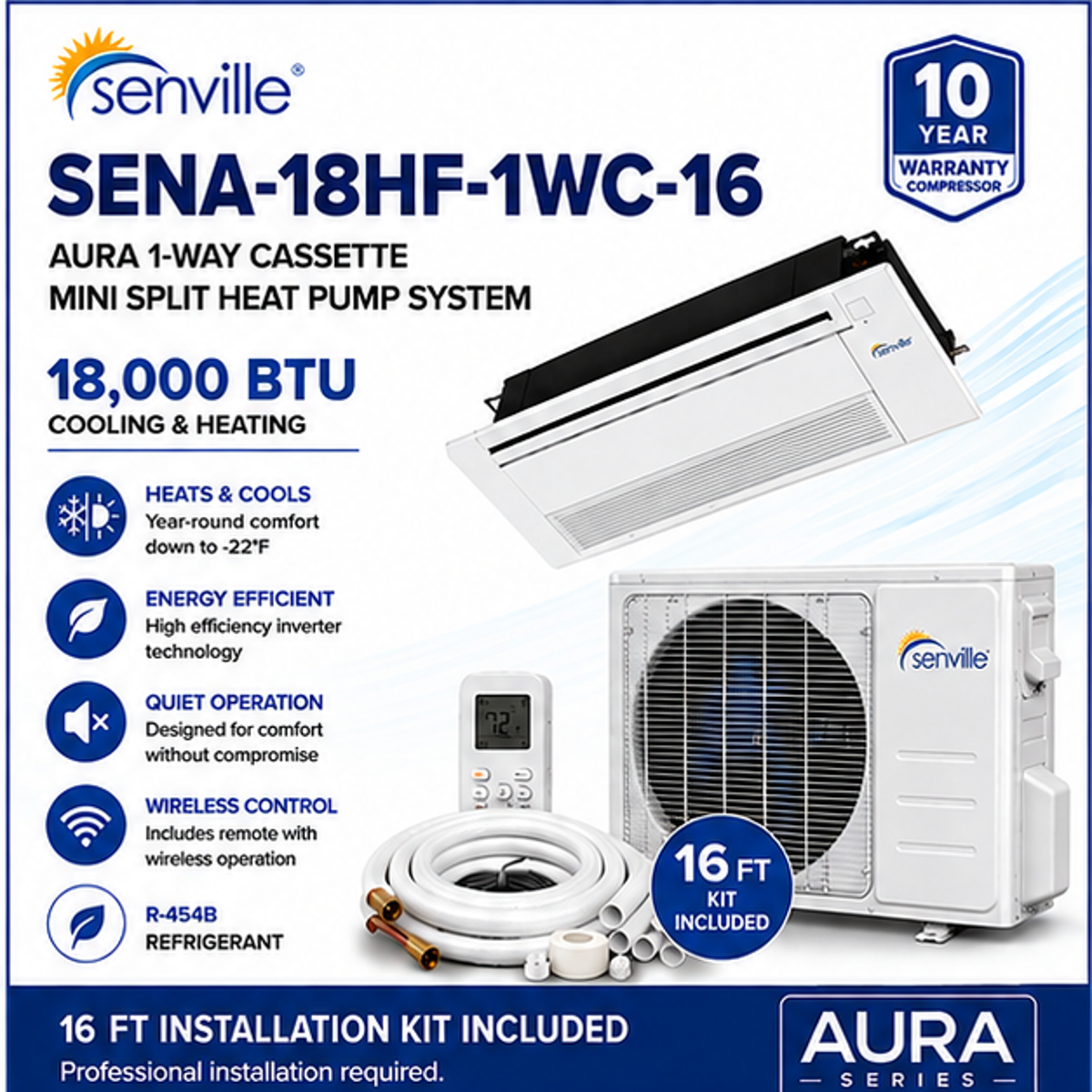

| 16 ft kit | SENA-18HF-1WC-16 |
| 25 ft kit | SENA-18HF-1WC-25 |
Product Dimensions & Weight
Dimensions are listed as width × depth × height in inches. Confirm required ceiling openings, panel dimensions, mounting clearances and the exact supplied equipment before installation.
9,000 BTU
| Specification | 9,000 BTU |
|---|---|
| Indoor unit dimensions | 50.31 × 13.19 × 8.98 in. |
| Outdoor unit dimensions | 31.69 × 12.99 × 21.81 in. |
| Indoor unit net weight | Verify with Manufacturer |
| Outdoor unit net weight | Verify with Manufacturer |
12,000 BTU
| Specification | 12,000 BTU |
|---|---|
| Indoor unit dimensions | 50.31 × 13.19 × 8.98 in. |
| Outdoor unit dimensions | 31.69 × 12.99 × 21.81 in. |
| Indoor unit net weight | Verify with Manufacturer |
| Outdoor unit net weight | Verify with Manufacturer |
18,000 BTU
| Specification | 18,000 BTU |
|---|---|
| Indoor unit dimensions | 50.31 × 13.19 × 8.98 in. |
| Outdoor unit dimensions | 35.04 × 13.46 × 26.50 in. |
| Indoor unit net weight | Verify with Manufacturer |
| Outdoor unit net weight | Verify with Manufacturer |

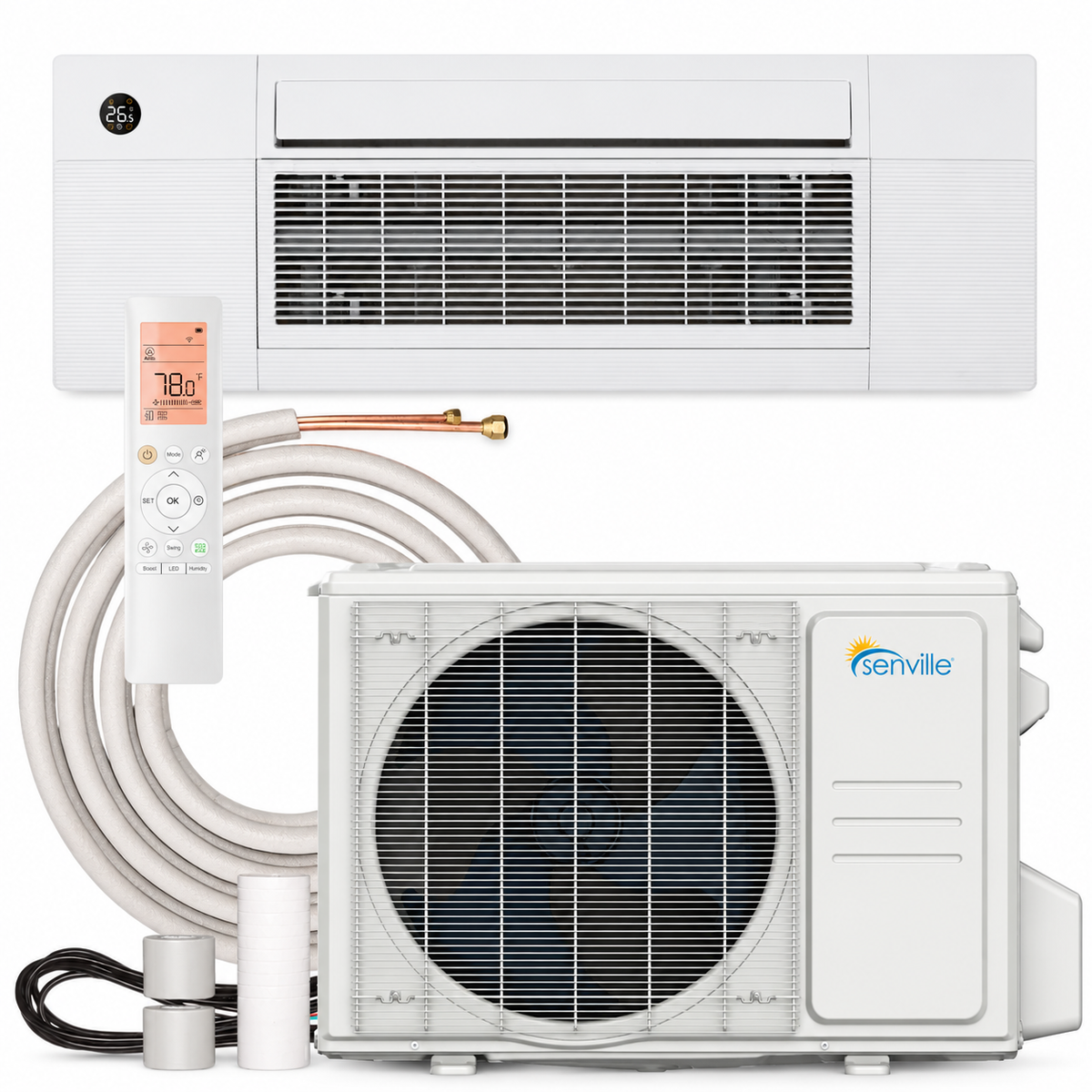

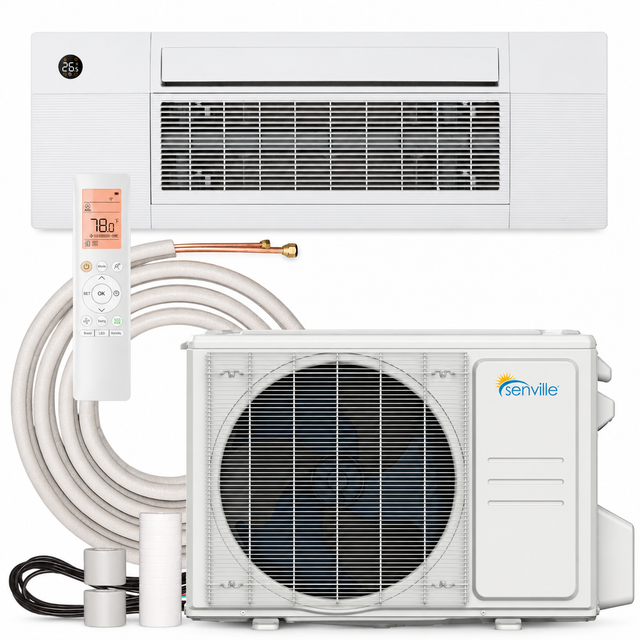

What Is Included
- One-way ceiling cassette indoor unit.
- Matched outdoor heat-pump unit.
- Remote and controls supplied with the system.
- Selected installation kit, when a kit option is purchased.
Installation & Refrigerant
Professional installation is required. Have your HVAC contractor confirm room load, ceiling access, drainage, mounting clearances, piping and electrical requirements before ordering.
Senville lists the outdoor unit as factory pre-charged with R-454B for up to 25 ft of installation length. Refrigerant adjustment must follow the exact matched system's installation instructions. Selecting no kit does not remove the outdoor unit's factory refrigerant charge.
Warranty
Senville lists a 10-year compressor warranty and a 5-year parts warranty for these AURA systems, subject to its full warranty terms. Repair labor is not covered.
Qualifying installation and applicable registration and maintenance requirements apply. Refer to the full Manufacturer Warranty for coverage, exclusions and claim details.
