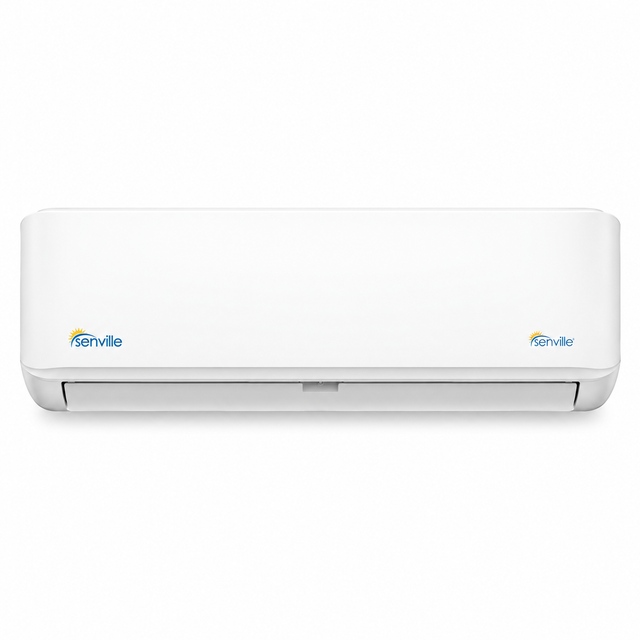

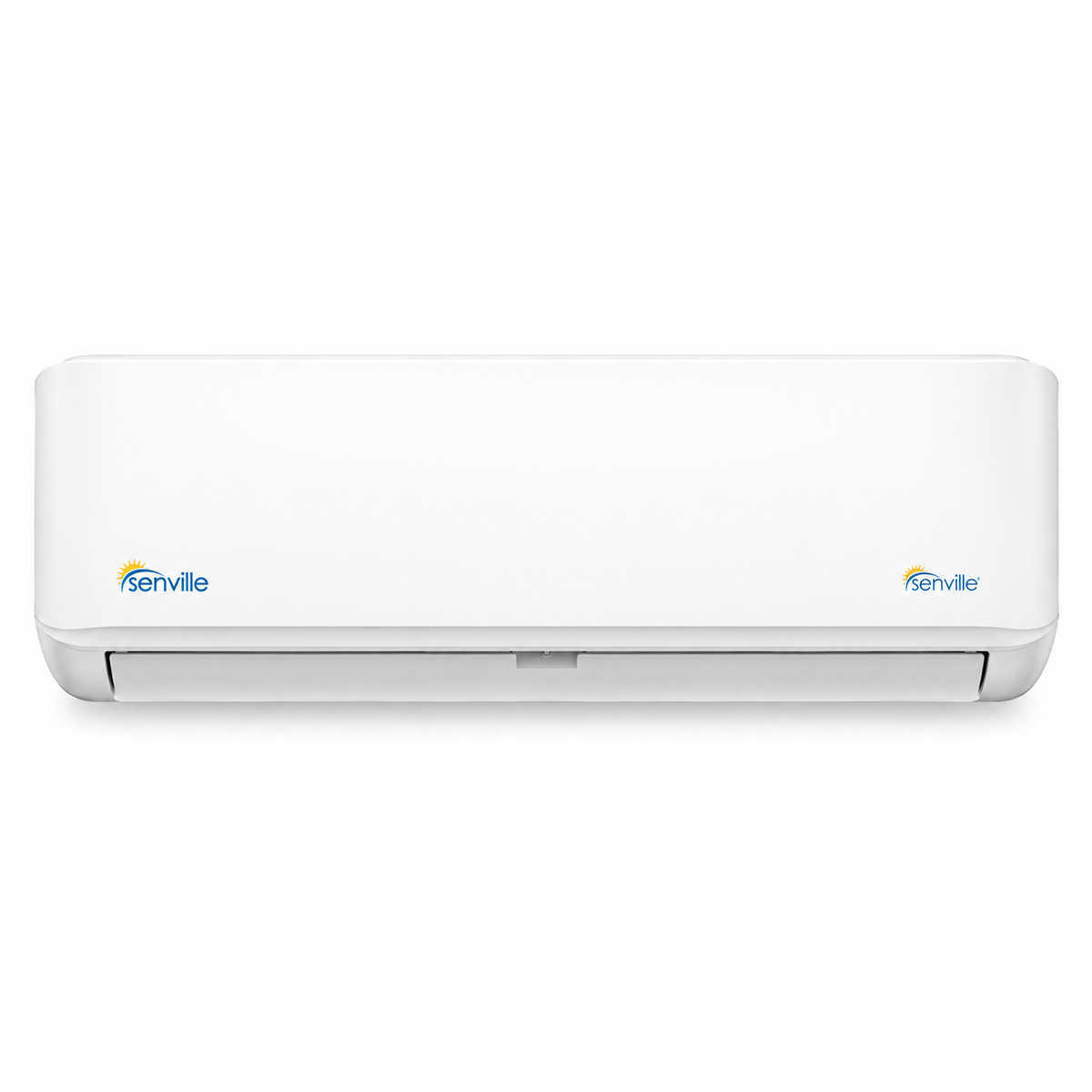

Senville LETO Mini Split Replacement Indoor Unit
Senville LETO Mini Split Replacement Indoor Unit - 9000 / 110/115V is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.
Replace or match your existing Senville LETO mini split system with a genuine Senville LETO Series Wall-Mounted Indoor Unit. These replacement indoor heads are available from 9,000 to 36,000 BTU and are designed for compatible Senville LETO outdoor units.
Each indoor unit provides quiet heating and cooling, precise temperature control, automatic air-swing, a washable reusable filter, sleep and timer functions, and a wireless remote control. Choose the exact capacity and voltage required for your system.
Senville LETO Wall-Mount Indoor Unit Key Features
| Feature | Details |
|---|---|
| Manufacturer | Senville |
| Series | LETO |
| Product Type | Wall-Mounted Replacement Indoor Unit |
| Configuration | Ductless Indoor Evaporator / Head Unit |
| Available Capacities | 9,000–36,000 BTU |
| Voltage Options | 110/115V and 208/230V, depending on model |
| Refrigerant Generation | R454B |
| Heating & Cooling | Yes, when connected to the correct compatible LETO system |
| Air Distribution | Automatic Swing Louvers |
| Filter | Washable and Reusable |
| Controls | Wireless Remote Control |
| Timer | Programmable 24-Hour Timer |
| Sleep Mode | Yes |
| Auto Restart | Yes |
| Application | Replacement indoor unit for compatible Senville LETO systems |
Senville LETO Wall-Mount Indoor Unit Technical Specifications
| SKU | Capacity | Product Dimensions W × D × H |
|---|---|---|
| SENL-09CD-ILL | 9,000 BTU | 28.43 × 7.36 × 11.42 in |
| SENL-09CD220-ILL | 9,000 BTU | 28.43 × 7.36 × 11.42 in |
| SENL-12CD-ILL | 12,000 BTU | 31.57 × 7.44 × 11.69 in |
| SENL-12CD220-ILL | 12,000 BTU | 31.57 × 7.44 × 11.69 in |
| SENL-18CD-ILL | 18,000 BTU | 37.99 × 8.46 × 12.56 in |
| SENL-24CD-ILL | 24,000 BTU | 42.52 × 8.90 × 13.19 in |
| SENL-30CD-ILL | 30,000 BTU | 49.57 × 11.10 × 14.25 in |
| SENL-36CD-ILL | 36,000 BTU | 49.57 × 11.10 × 14.25 in |
Senville LETO Wall-Mount Indoor Unit System Requirements
| Requirement | Details |
|---|---|
| Refrigerant | R454B |
| Mounting Style | Wall Mount |
| System Type | Ductless Mini Split |
| Indoor Unit Controls | Wireless Remote |
| Compatibility | Must be matched with the appropriate Senville LETO outdoor unit and system configuration. |
Senville LETO Wall-Mount Indoor Unit Compatibility
Senville LETO Wall-Mount Indoor Unit Product Highlights
- Genuine Senville LETO replacement indoor head
- Six capacity sizes from 9,000 to 36,000 BTU
- 110/115V and 208/230V configurations available
- Quiet operation for bedrooms, living spaces, offices, and similar applications
- Washable reusable air filter
- Auto-swing louvers for even air distribution
- Programmable timer and Sleep Mode
- Automatic restart following a power interruption
- Wireless remote included
- Current ILL-generation models use R454B refrigerant
Senville LETO Wall-Mount Indoor Unit Technical Documents
