Rusco CF 1-1/2" Combo Style Spin-Down Sediment Filters
Rusco CF 1-1/2" Combo Style Spin-Down Sediment Filters - Standard / Polyester / 24 Mesh (711 Micron) is backordered and will ship as soon as it is back in stock.
Rusco CF 1-1/2" Combo Style Spin-Down Sediment Filter
The Rusco CF 1-1/2" Combo Style Spin-Down Sediment Filter provides reusable sediment filtration for residential, agricultural, irrigation, commercial, and industrial water systems.
Rusco's Spin-Down design helps capture sand, grit, scale, rust, and other suspended sediment before it reaches pumps, valves, irrigation equipment, pressure tanks, and downstream treatment equipment. Collected sediment can be discharged through the bottom flush valve, while the reusable filter element can be cleaned and returned to service.
The defining feature of the CF Combo Style is its unique body with three plumbing openings. This provides greater installation flexibility than Rusco's standard straight-through T-Style configuration.
The 1-1/2" Combo Style supports a 10–50 GPM flow range, uses 1-1/2" slip connections, and measures approximately 16-5/8" L × 5-1/4" W.
This family is available with polyester mesh or stainless steel mesh. Separate Chemical-Resistant versions are also available with either polyester or stainless steel elements and a chemical-resistant filter cover.
Key Features
| Feature | Verified Data |
|---|---|
| Manufacturer | Rusco |
| Series | CF Combo Style |
| Product Type | Spin-Down Sediment Filter |
| Connection Size | 1-1/2" |
| Connection Type | Slip |
| Flow Range | 10–50 GPM |
| Product Dimensions | 16-5/8" L × 5-1/4" W |
| Body Configuration | Combo Style with three plumbing openings |
| Standard Media Options | Polyester Mesh / Stainless Steel Mesh |
| Chemical-Resistant Models | Available with Polyester or Stainless Steel elements |
| Reusable Element | Yes |
| Maintenance | Bottom flush valve allows collected sediment to be discharged |

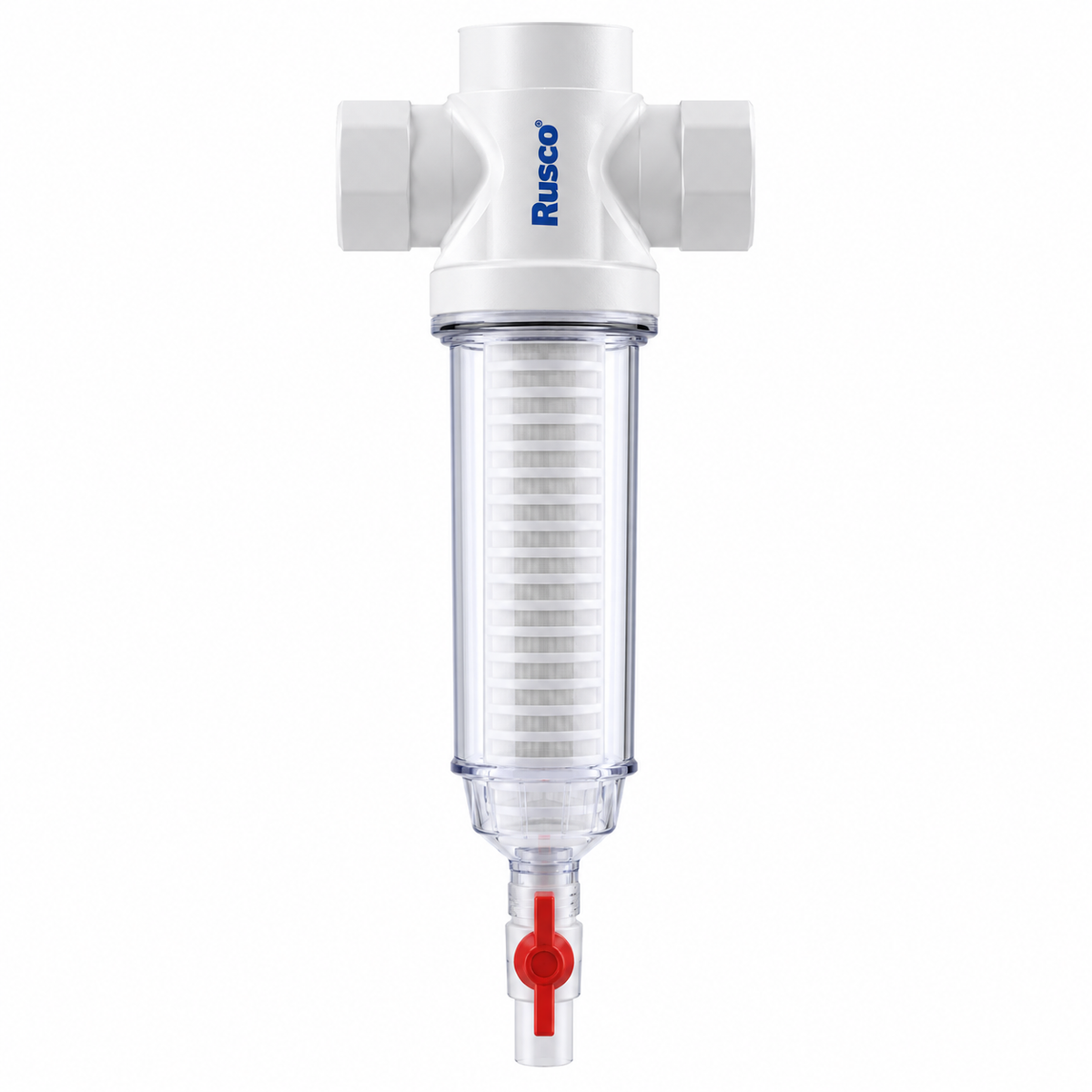

Standard Polyester Combo Style
| SKU | Mesh | Approx. Micron |
|---|---|---|
| CF 1-1/2-24-F | 24 | 711 |
| CF 1-1/2-30-F | 30 | 533 |
| CF 1-1/2-40-F | 40 | 381 |
| CF 1-1/2-60-F | 60 | 254 |
| CF 1-1/2-100-F | 100 | 152 |
| CF 1-1/2-140-F | 140 | 104 |
| CF 1-1/2-250-F | 250 | 61 |
| CF 1-1/2-500-F | 500 | 30 |
| CF 1-1/2-1000-F | 1000 | 15 |

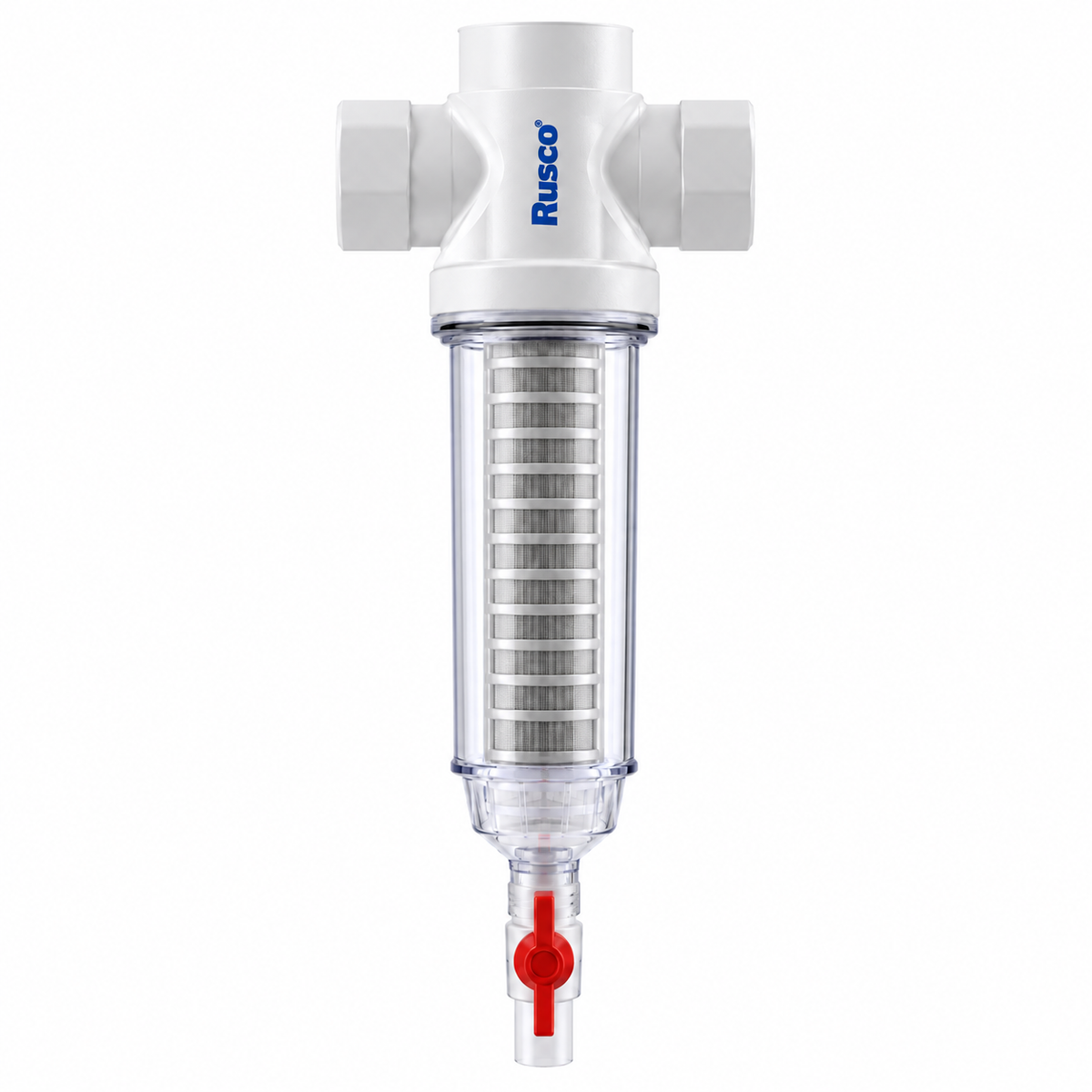

Standard Stainless Steel Combo Style
| SKU | Mesh | Approx. Micron |
|---|---|---|
| CF 1-1/2-30SS-F | 30 | 533 |
| CF 1-1/2-60SS-F | 60 | 254 |
| CF 1-1/2-100SS-F | 100 | 152 |
| CF 1-1/2-140SS-F | 140 | 104 |
| CF 1-1/2-200SS-F | 200 | 74 |
| CF 1-1/2-250SS-F | 250 | 61 |
| CF 1-1/2-500SS-F | 500 | 30 |
| CF 1-1/2-1000SS-F | 1000 | 15 |

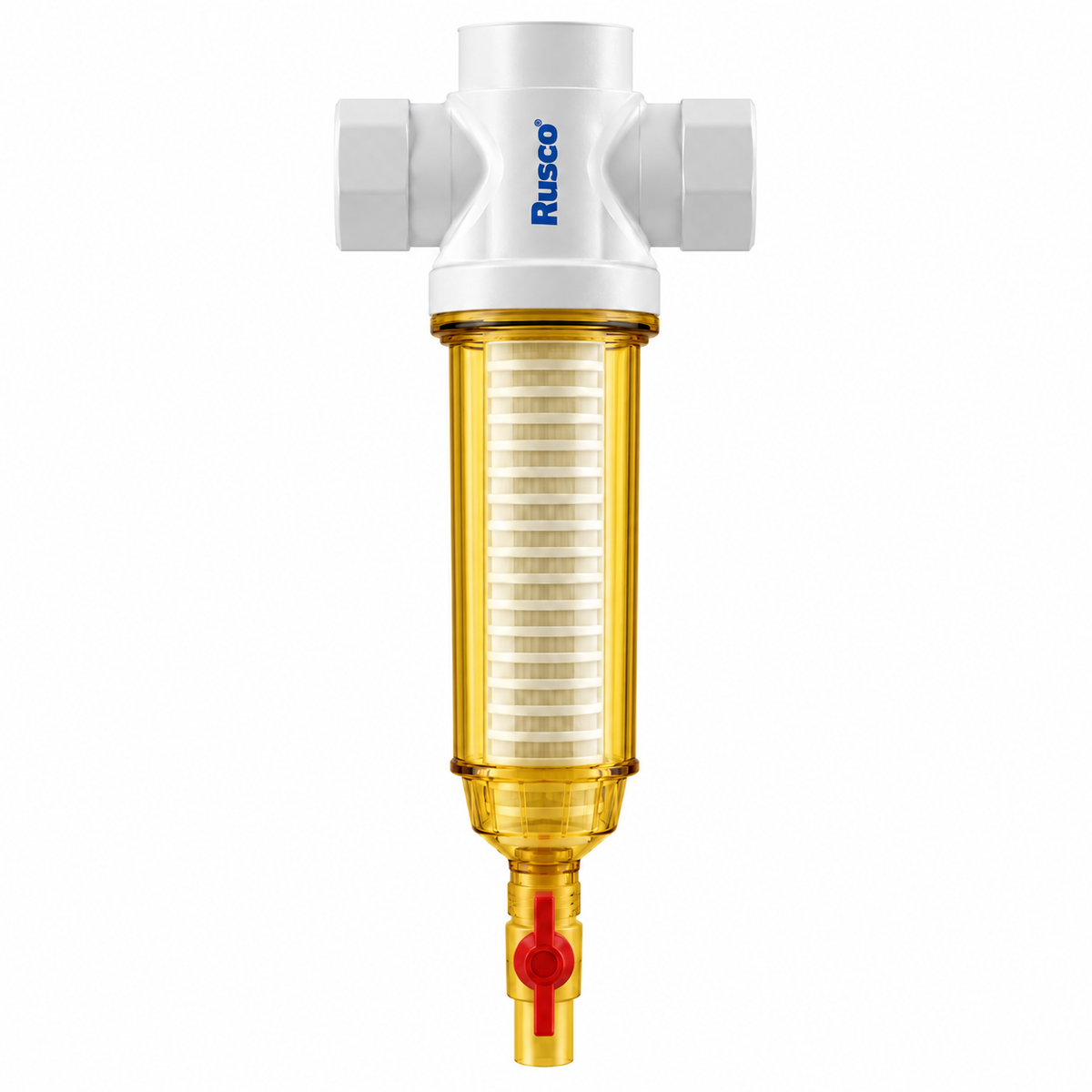

Chemical-Resistant Polyester Combo Style
| SKU | Mesh | Approx. Micron |
|---|---|---|
| CF 1-1/2-24 CR-F | 24 | 711 |
| CF 1-1/2-30 CR-F | 30 | 533 |
| CF 1-1/2-40 CR-F | 40 | 381 |
| CF 1-1/2-60 CR-F | 60 | 254 |
| CF 1-1/2-100 CR-F | 100 | 152 |
| CF 1-1/2-140 CR-F | 140 | 104 |
| CF 1-1/2-250 CR-F | 250 | 61 |
| CF 1-1/2-500 CR-F | 500 | 30 |
| CF 1-1/2-1000 CR-F | 1000 | 15 |

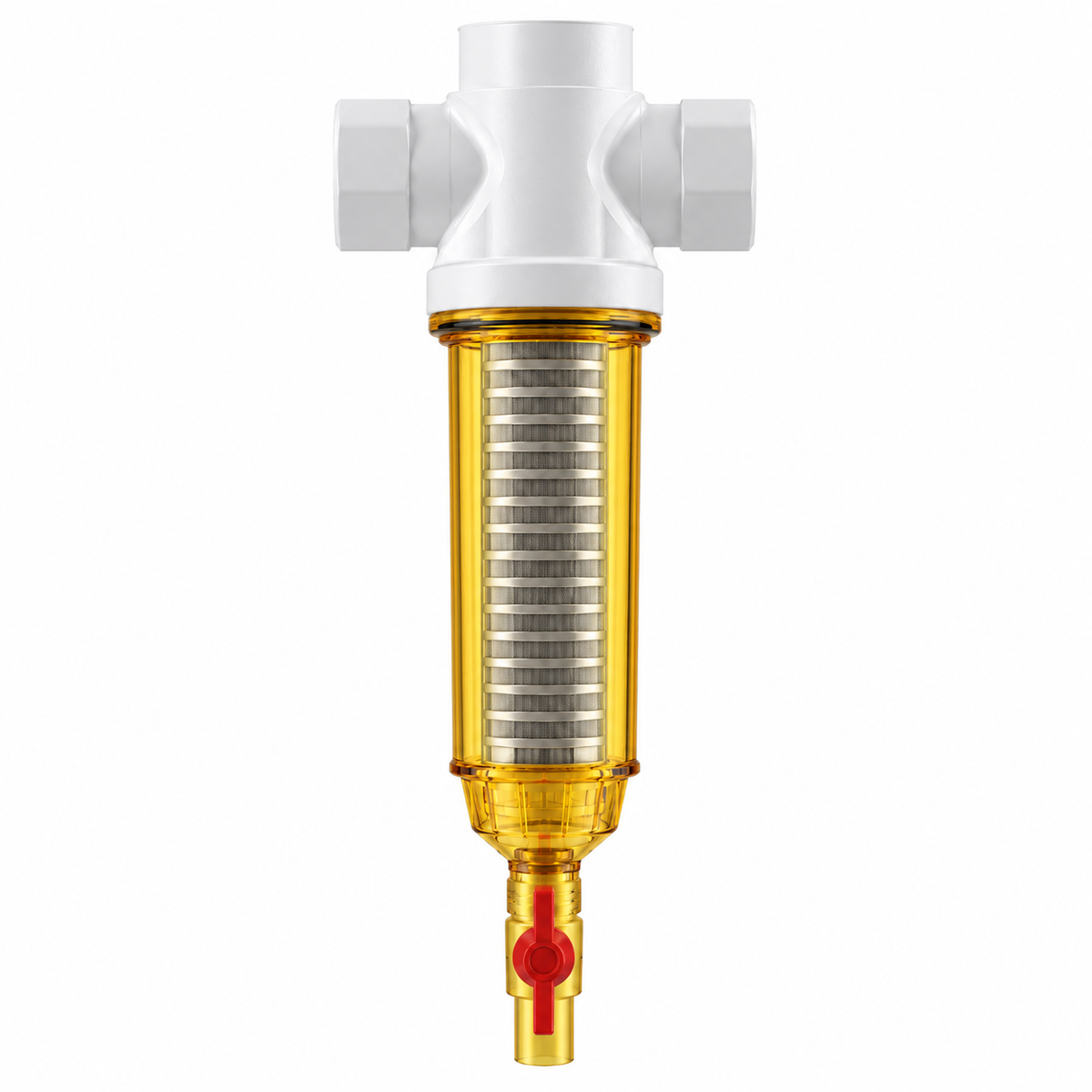

Chemical-Resistant Stainless Steel Combo Style
| SKU | Mesh | Approx. Micron |
|---|---|---|
| CF 1-1/2-30SS CR-F | 30 | 533 |
| CF 1-1/2-60SS CR-F | 60 | 254 |
| CF 1-1/2-100SS CR-F | 100 | 152 |
| CF 1-1/2-140SS CR-F | 140 | 104 |
| CF 1-1/2-200SS CR-F | 200 | 74 |
| CF 1-1/2-250SS CR-F | 250 | 61 |
| CF 1-1/2-500SS CR-F | 500 | 30 |
| CF 1-1/2-1000SS CR-F | 1000 | 15 |
Product Highlights
| Highlight | Benefit |
|---|---|
| Combo Style Body | Three openings provide greater plumbing flexibility |
| Reusable Filter Element | Washable design reduces disposable cartridge replacement |
| Visual Sediment Inspection | Transparent cover allows sediment buildup to be monitored |
| Easy Flush Cleaning | Bottom valve allows collected sediment to be discharged |
| Media Selection | Polyester and stainless steel mesh options available |
| Chemical-Resistant Models | Available for demanding water chemistry applications |
Typical Applications
- Well-water sediment filtration
- Irrigation and agricultural water systems
- Commercial water systems
- Equipment and valve protection
- Pre-filtration for downstream treatment equipment
- Applications requiring flexible plumbing configurations
