Stingray Systems S2236 Eyewash Cabinet Unit Less Mixing Valve
Most Items Ship Same Day
(Warranty, Return and Refunds)

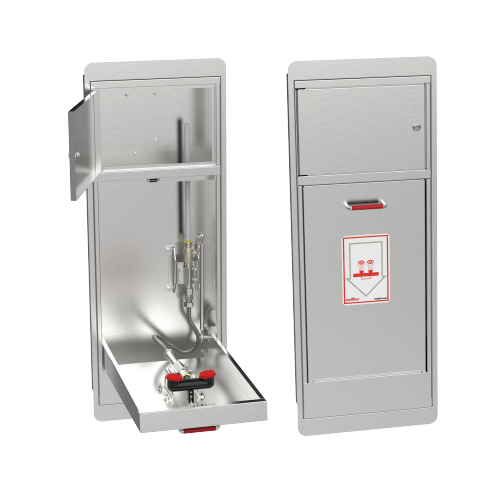

The S2236/2536 emergency eye or eye/facewash station is a wall-mounted or recessed unit. The eye/face wash shall be manufactured of corrosion resistant materials. Unit shall include universal ANSI compliant sign.
The eye or eye/facewash portion shall be housed in an 18-gauge, Type 304 stainless steel cabinet to conceal and protect the fixture. A stay open ball valve and linkage accomplishes the activation of the unit via the opening of the door. The 1½" drain is at the bottom of the cabinet. The spray heads shall be incorporated into a Quick Switch Eyewash Block that can be easily removed and serviced, allowing the supply piping to be flushed.
The fixture shall be installed at the correct elevation per ANSI Z358.1, be level and be self-draining to hinder bacteria growth. The fixture shall also be independently certified to meet the latest ANSI Z358.1 requirements. As an eyewash this unit will have a flow rate of a minimum of .4 GPM measured at 30 psi and as an eye/facewash a minimum of 3 gpm measured at 30 psi.
