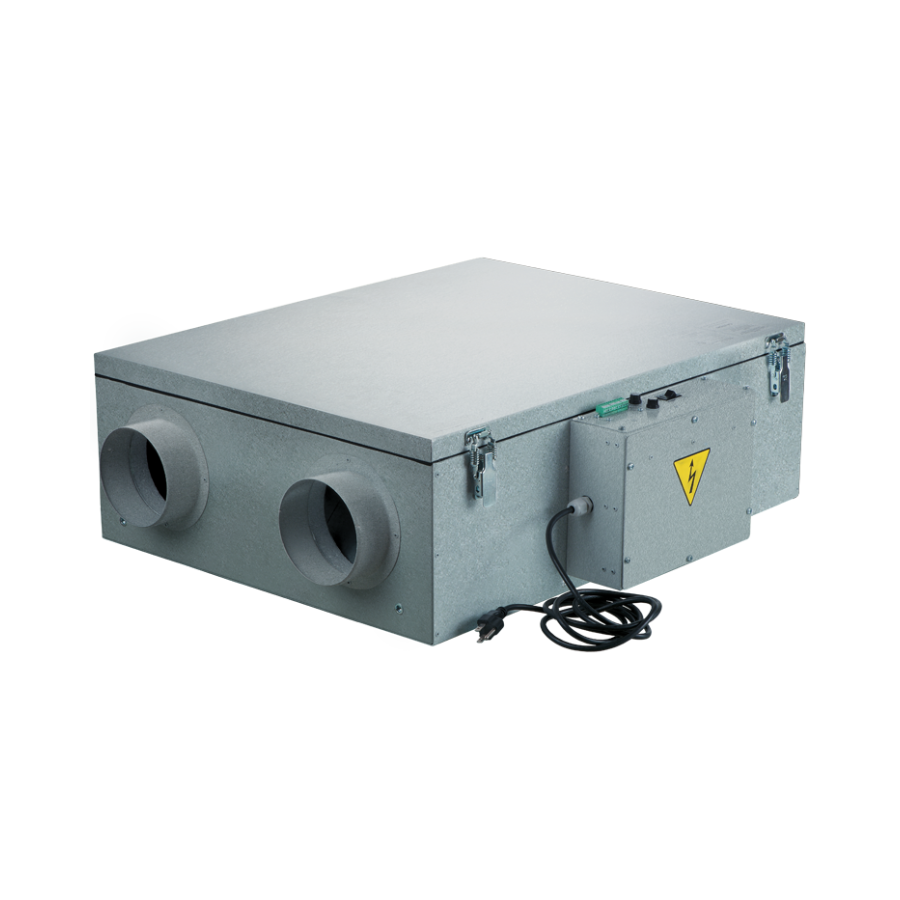

Vents FRIGATE HRV 150 EC
Most Items Ship Same Day
(Warranty, Return and Refunds)
Whole Home Heat Recovery Ventilator (HRV)
Heat Recovery Ventilators (HRVs) provide a complete whole-house ventilation solution, supplying a continuous flow of fresh outdoor air while simultaneously exhausting an equal amount of stale indoor air. By transferring heat from outgoing air to incoming air, HRVs improve energy efficiency and help maintain healthy indoor air quality throughout the home.
🌬 Key Features
-
Heat Exchanger Type: Cross-flow design for efficient heat transfer
-
Supply Filter: Poret PPI 20 / MERV 6 for clean incoming air
-
Extract Filter: Poret PPI 20 / MERV 6 for filtered exhaust
-
Motor Type: AC motor for reliable, long-term operation
-
Sound Insulation: Reduces operational noise for comfort
Technical Documents:
- HRV & ERV catalog
- Frigate HRV 150 EC specification
- Frigate ERV(HRV) 80-100-120-150 (EC) installation guide
- Frigate ERV(HRV) 80-100-120-150 (EC) user's manual
- ETL Certification mark for Frigate, Brig, Micra 60, VUT
| Unit of measurement | Frigate HRV 150 EC | |
| Connected air duct size | in | 5” |
| Minimum supply voltage | V | 120 |
| Maximum supply voltage | V | 120 |
| Power supply frequency | Hz | 60 |
| Rated power | W | 192 |
| Maximum unit current | A | 2.5 |
| Maximum performance @0.1" | CFM | |
| Minimum performance @0.4" | CFM | 162 |
| Heat exchanger type | - | Cross flow |
| Heat exchanger material | - | Polystyrene |
| Extract filter | - | Poret PPI 20/MERV6 |
| Supply filter | - | Poret PPI 20/MERV6 |
| Extract filter | - | MERV6 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP44 |
Disclaimer: Must be installed by a licensed contractor or warranty is void.
