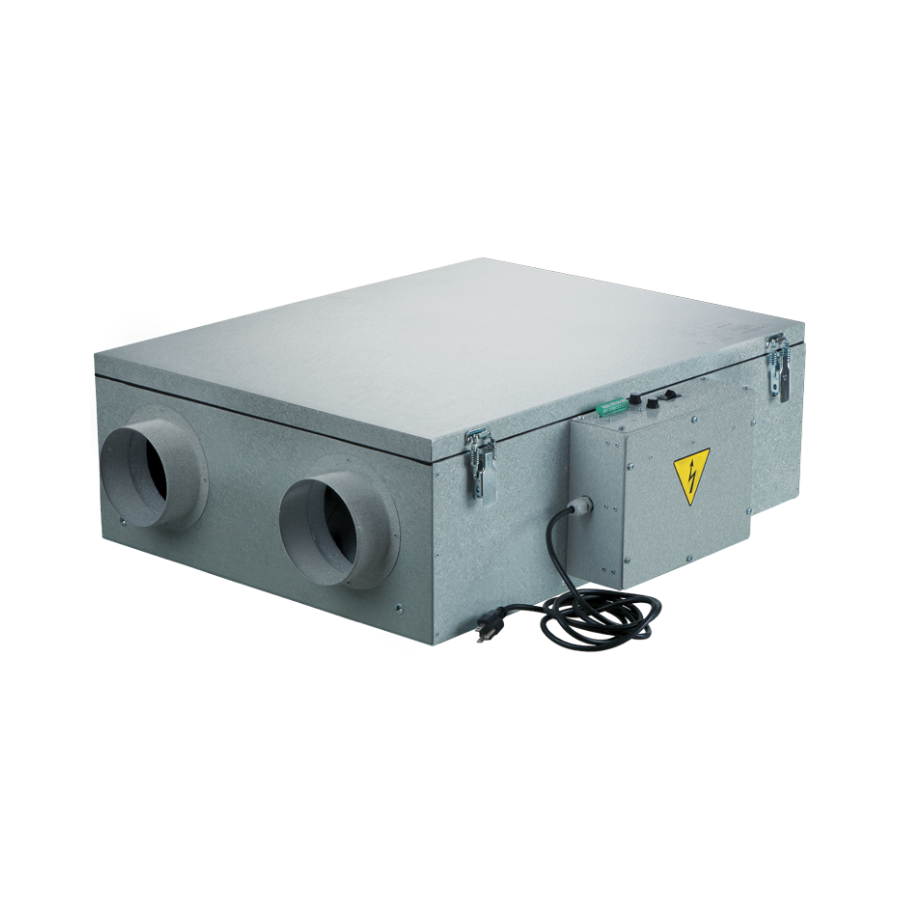

Vents FRIGATE HRV 120 EC
Most Items Ship Same Day
(Warranty, Return and Refunds)
Heat Recovery Ventilators – Whole House Ventilation System
Heat Recovery Ventilators (HRVs) provide continuous fresh air for your home while removing an equal amount of stale, polluted air. This balanced ventilation system improves indoor air quality, reduces humidity, and helps create a healthier living environment.
🌬️ Heat Exchanger Type: Cross flow design for efficient energy recovery and consistent airflow.
🛡️ Extract Filter: Poret PPI 20 / MERV 6 filter captures dust, allergens, and airborne contaminants.
✨ Supply Filter: Poret PPI 20 / MERV 6 filter ensures the incoming fresh air is clean and purified.
🔇 Sound Insulation: Built with noise-reducing insulation for quiet operation.
⚡ Motor Type: Durable AC motor designed for reliable performance and long-lasting efficiency.
Technical Documents:
- HRV & ERV catalog
- Frigate HRV 120 EC specification
- Frigate ERV(HRV) 80-100-120-150 (EC) installation guide
- Frigate ERV(HRV) 80-100-120-150 (EC) user's manual
- ETL Certification mark for Frigate, Brig, Micra 60, VUT
| Unit of measurement | Frigate HRV 120 EC | |
| Connected air duct size | in | 5” |
| Minimum supply voltage | V | 120 |
| Maximum supply voltage | V | 120 |
| Power supply frequency | Hz | 60 |
| Rated power | W | 156 |
| Maximum unit current | A | 2.5 |
| Maximum performance @0.1" | CFM | |
| Minimum performance @0.4" | CFM | 175 |
| Heat exchanger type | - | Cross flow |
| Heat exchanger material | - | Polystyrene |
| Extract filter | - | Poret PPI 20/MERV6 |
| Supply filter | - | Poret PPI 20/MERV6 |
| Extract filter | - | MERV6 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP44 |
Disclaimer: Must be installed by a licensed contractor or warranty is void.
