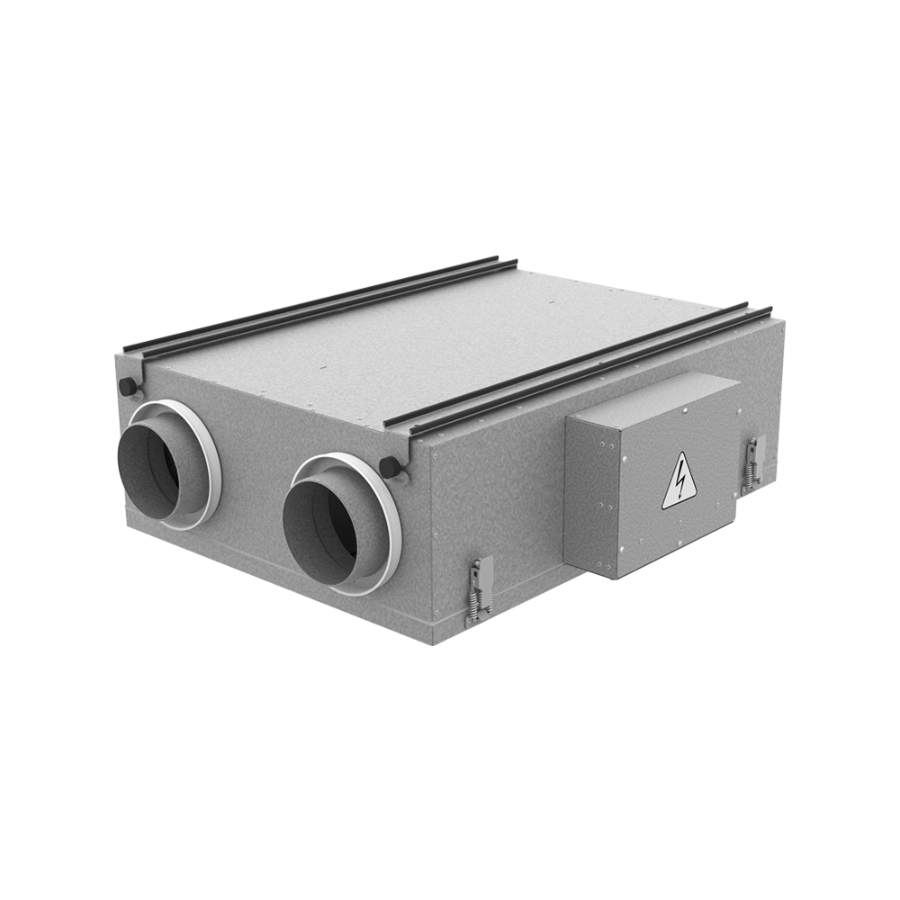

Vents FRIGATE HRV 120 R EC

Heat Recovery Ventilators – Whole House Fresh Air System
Heat Recovery Ventilators (HRVs) provide a complete whole-house ventilation solution. They deliver a continuous supply of fresh, filtered air into your home while exhausting an equal amount of stale air. With advanced heat exchange technology, HRVs improve indoor air quality, reduce energy costs, and create a healthier living environment.
🌬️ Heat Exchanger Type: Cross flow design ensures efficient heat transfer and consistent performance.
🛡️ Extract Filter: Poret PPI 20 / MERV 6 filter captures dust, allergens, and airborne particles for cleaner indoor air.
✨ Supply Filter: Poret PPI 20 / MERV 6 filter ensures the fresh air entering your home is free from impurities.
🔇 Sound Insulation: Engineered for quiet operation, minimizing noise while maximizing comfort.
⚡ Motor Type: High-efficiency EC motor provides reliable performance with lower energy consumption.
Technical Documents:
- HRV & ERV catalog
- Frigate HRV 120R EC specification
- Frigate ERV(HRV) 80-100-120-150 (EC) installation guide
- Frigate ERV(HRV) 80-100-120-150 (EC) user's manual
- ETL Certification mark for Frigate, Brig, Micra 60, VUT
Unit of measurement | Frigate HRV 120R EC | |
Connected air duct size | in | 5” |
Minimum supply voltage | V | 120 |
Maximum supply voltage | V | 120 |
Power supply frequency | Hz | 60 |
Rated power | W | 198 |
Maximum unit current | A | 2.5 |
Maximum performance @0.1" | CFM | |
Minimum performance @0.4" | CFM | 175 |
Heat exchanger type | - | Cross flow |
Heat exchanger material | - | Polystyrene |
Extract filter | - | Poret PPI 20/MERV6 |
Supply filter | - | Poret PPI 20/MERV6 |
Extract filter | - | MERV6 |
Ingress protection rating | - | IP22 |
Ingress protection rating of the drive | - | IP44 |
Disclaimer: Must be installed by a licensed contractor or warranty is void.
