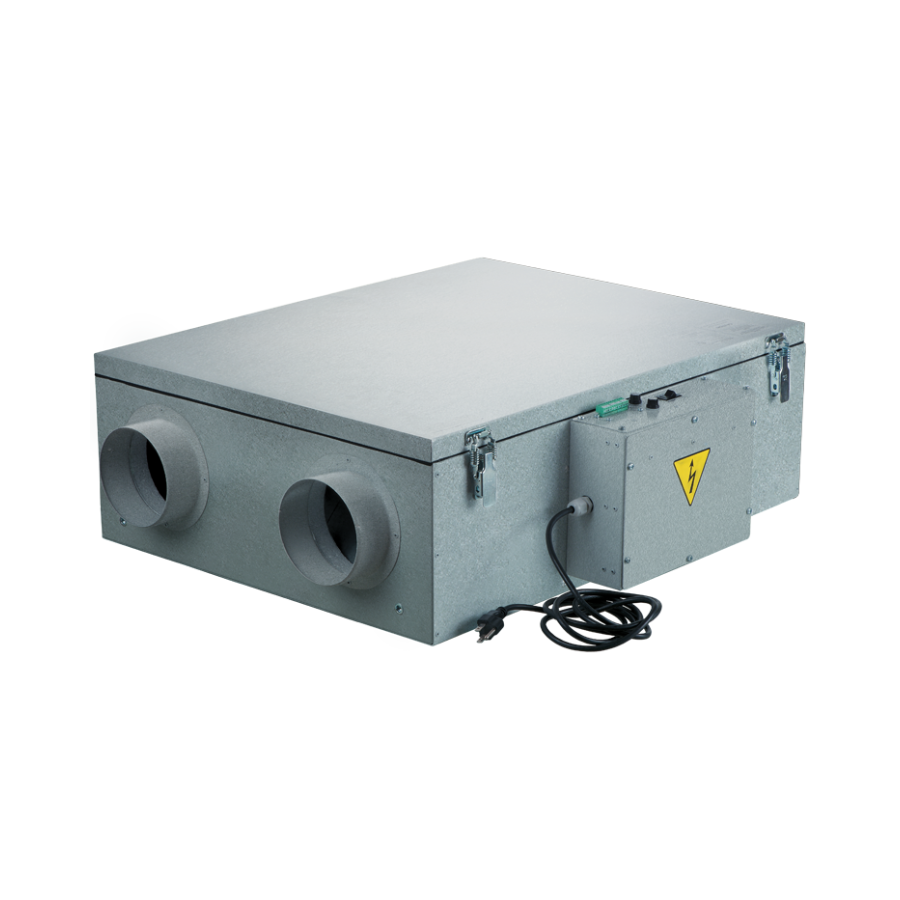

Vents FRIGATE ERV 150 EC
Most Items Ship Same Day
(Warranty, Return and Refunds)
Whole Home Energy Recovery Ventilator (ERV)
Energy Recovery Ventilators (ERVs) are complete whole-house ventilation systems designed to provide a continuous supply of fresh outdoor air while exhausting an equal amount of stale indoor air. This balanced system improves indoor air quality and helps maintain energy efficiency throughout the year.
🌬 Key Features
-
Heat Exchanger Type: Cross-flow enthalpy heat exchanger for efficient heat and moisture transfer
-
Supply Filter: Poret PPI 20 / MERV 6 for clean incoming air
-
Extract Filter: Poret PPI 20 / MERV 6 for filtered exhaust
-
Motor Type: High-efficiency EC motor for quiet, reliable operation
Technical Documents:
- HRV & ERV catalog
- Frigate ERV 150 EC specification
- Frigate ERV(HRV) 80-100-120-150 (EC) installation guide
- Frigate ERV(HRV) 80-100-120-150 (EC) user's manual
- ETL Certification mark for Frigate, Brig, Micra 60, VUT
| Unit of measurement | Frigate ERV 150 EC | |
| Connected air duct size | in | 5” |
| Minimum supply voltage | V | 120 |
| Maximum supply voltage | V | 120 |
| Power supply frequency | Hz | 60 |
| Rated power | W | 186 |
| Maximum unit current | A | 2.5 |
| Maximum performance @0.1" | CFM | |
| Minimum performance @0.4" | CFM | 162 |
| Heat exchanger type | - | Cross flow |
| Heat exchanger material | - | Enthalpy |
| Extract filter | - | Poret PPI 20/MERV6 |
| Supply filter | - | Poret PPI 20/MERV6 |
| Extract filter | - | MERV6 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP44 |
Disclaimer: Must be installed by a licensed contractor or warranty is void.
