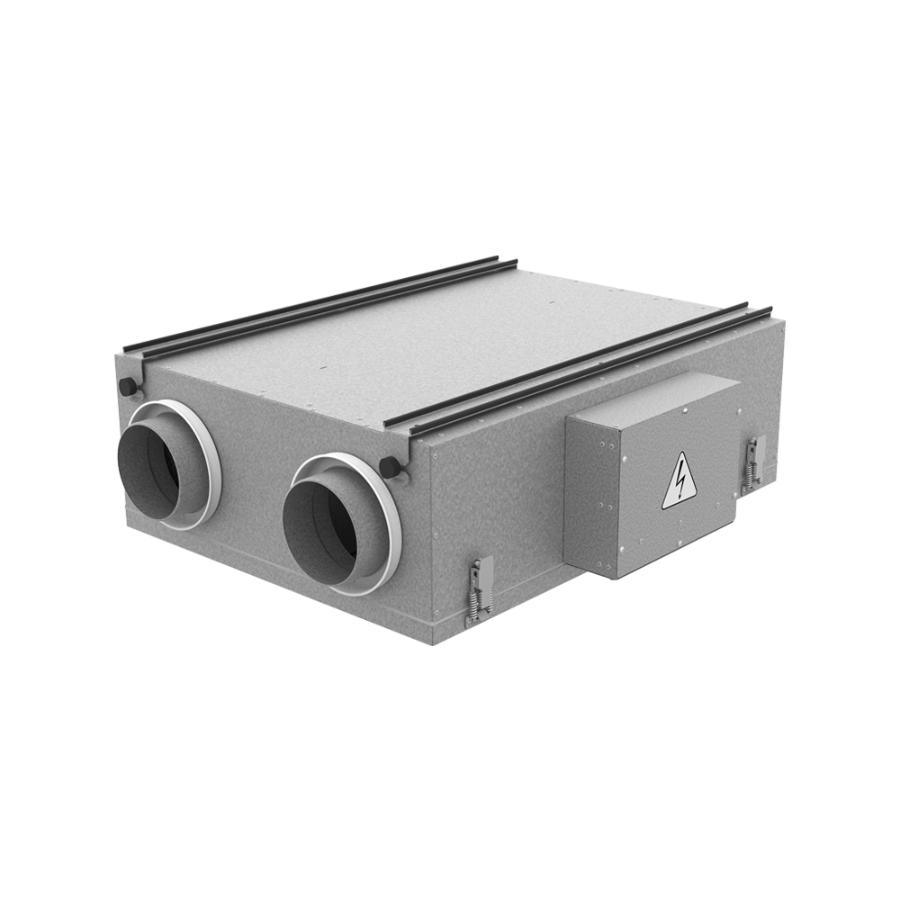

Vents FRIGATE HRV 150 R EC

Whole Home Heat Recovery Ventilator (HRV)
Heat Recovery Ventilators (HRVs) are complete whole-house ventilation systems that provide a continuous supply of fresh outdoor air while exhausting an equal amount of stale indoor air. By transferring heat from the outgoing air to the incoming air, HRVs improve energy efficiency while maintaining healthy indoor air quality year-round.
🌬 Key Features
-
Heat Exchanger Type: Cross-flow design for efficient heat recovery
-
Supply Filter: Poret PPI 20 / MERV 6 for cleaner incoming air
-
Extract Filter: Poret PPI 20 / MERV 6 for filtered exhaust
-
Motor Type: High-efficiency EC motor for quiet, reliable operation
-
Sound Insulation: Reduces noise for enhanced comfort
Technical Documents:
- HRV & ERV catalog
- Frigate HRV 150R EC specification
- Frigate ERV(HRV) 80-100-120-150 (EC) installation guide
- Frigate ERV(HRV) 80-100-120-150 (EC) user's manual
- ETL Certification mark for Frigate, Brig, Micra 60, VUT
Unit of measurement | Frigate HRV 150R EC | |
Connected air duct size | in | 5” |
Minimum supply voltage | V | 120 |
Maximum supply voltage | V | 120 |
Power supply frequency | Hz | 60 |
Rated power | W | 186 |
Maximum unit current | A | 2.5 |
Maximum performance @0.1" | CFM | |
Minimum performance @0.4" | CFM | 162 |
Heat exchanger type | - | Cross flow |
Heat exchanger material | - | Polystyrene |
Extract filter | - | Poret PPI 20/MERV6 |
Supply filter | - | Poret PPI 20/MERV6 |
Extract filter | - | MERV6 |
Ingress protection rating | - | IP22 |
Ingress protection rating of the drive | - | IP44 |
Disclaimer: Must be installed by a licensed contractor or warranty is void.
