Vents VKP PS 125

VENTS VK PS Series Large Duct Dryer Booster Fan
The VENTS VK PS Series Dryer Booster Fan is designed to solve one of the most common dryer vent issues—poor airflow in long duct runs. Engineered for reliability and performance, this fan is suitable for duct sizes from 8″ to 12 3/8″ and supports venting lengths up to 150 ft.
By improving airflow, the VK PS Series not only enhances your dryer’s efficiency but also helps reduce drying times, lower energy costs, and minimize lint buildup and excess moisture—making it a smart solution for both residential and commercial applications.
The pre-installed pressure switch activates in 10-minute cycles, ensuring consistent performance for long duct installations. Each unit comes with a mounting bracket for simple setup and is backed by a 2-year warranty for peace of mind.
🔧 Key Features
-
Fits 8″, 10″, and 12 3/8″ duct sizes
-
Airflow capacity up to 871 CFM
-
Built for high static pressure applications
-
Backward curved centrifugal impeller for superior airflow
-
External rotor motor with thermal overload protection

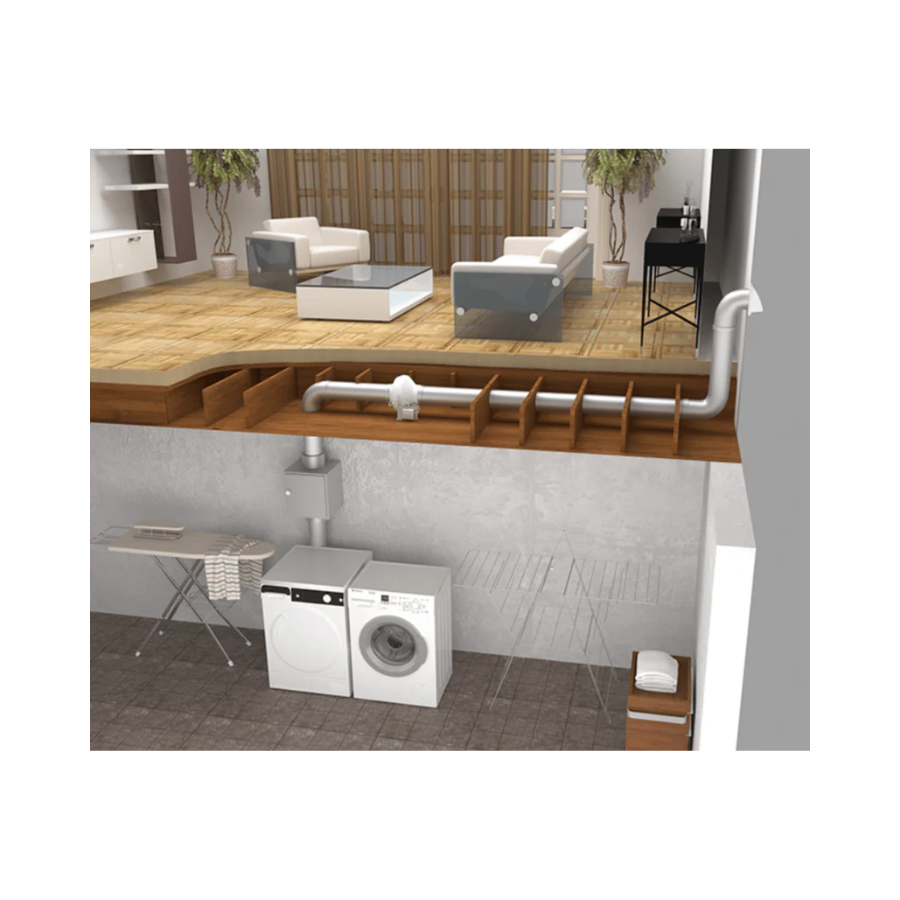

🏠 Ideal for Long Dryer Runs
-
Designed for ducting up to 150 ft
-
Cuts down drying times and saves energy
-
Helps reduce lint buildup and moisture problems
⚡ Performance & Efficiency
-
Vibration-free operation
-
Works in residential & commercial settings
-
Energy efficient & maintenance-free
-
Durable, corrosion-resistant housing
🛠 Easy Installation
-
Pre-wired for quick setup
-
Includes mounting bracket
-
Backed by a 2-Year Warranty
Technical Documents:
Details
VK PS series Large Duct Dryer Booster Fans |
|||
Model | VK 200 PS | VK 250 PS | VK 315 PS |
Duct Size | 8" | 10" | 12 3/8" |
Power Usage Watts | 140W | 293W | 269W |
Volts/Hz | 120/60 | 120/60 | 120/60 |
Sones | 8.1 | 10.2 | 11.5 |
CFM Maximum (0 PS WG) | 507 | 735 | 871 |
IP4X | Yes | ||
Thermal Over Protection | Yes | ||
Working Airstream Max temp | Up to 149 degree F | ||
What's Included | Pressure switch, mounting bracket and power cord |
