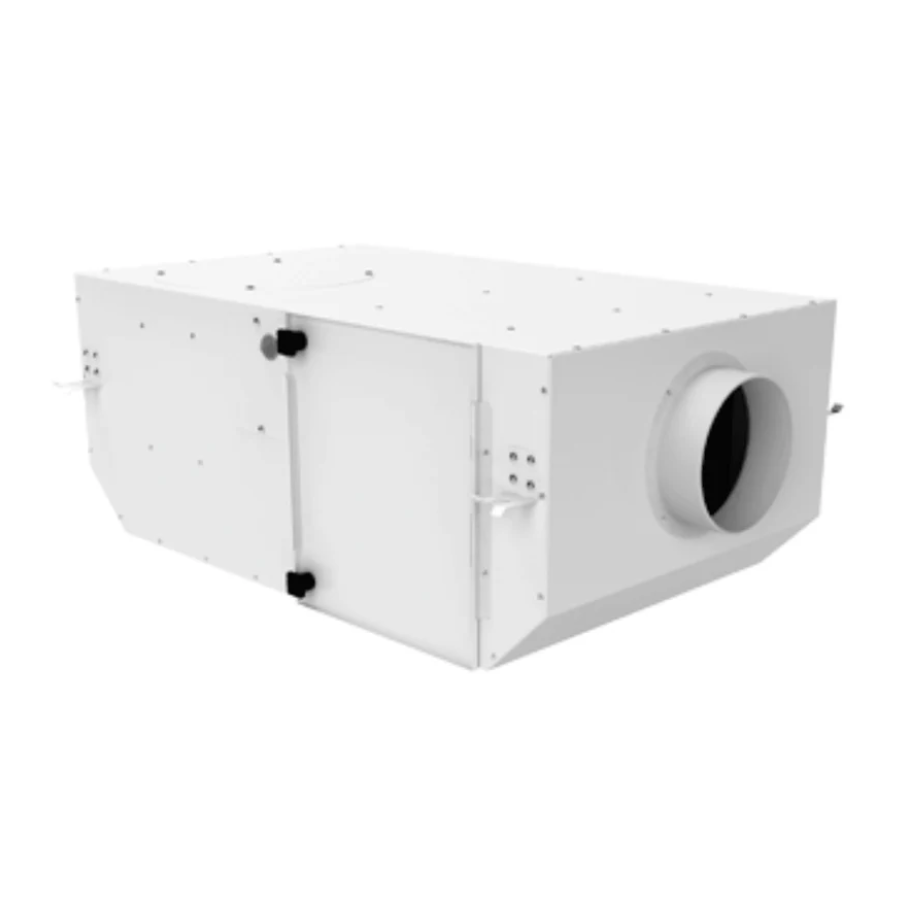

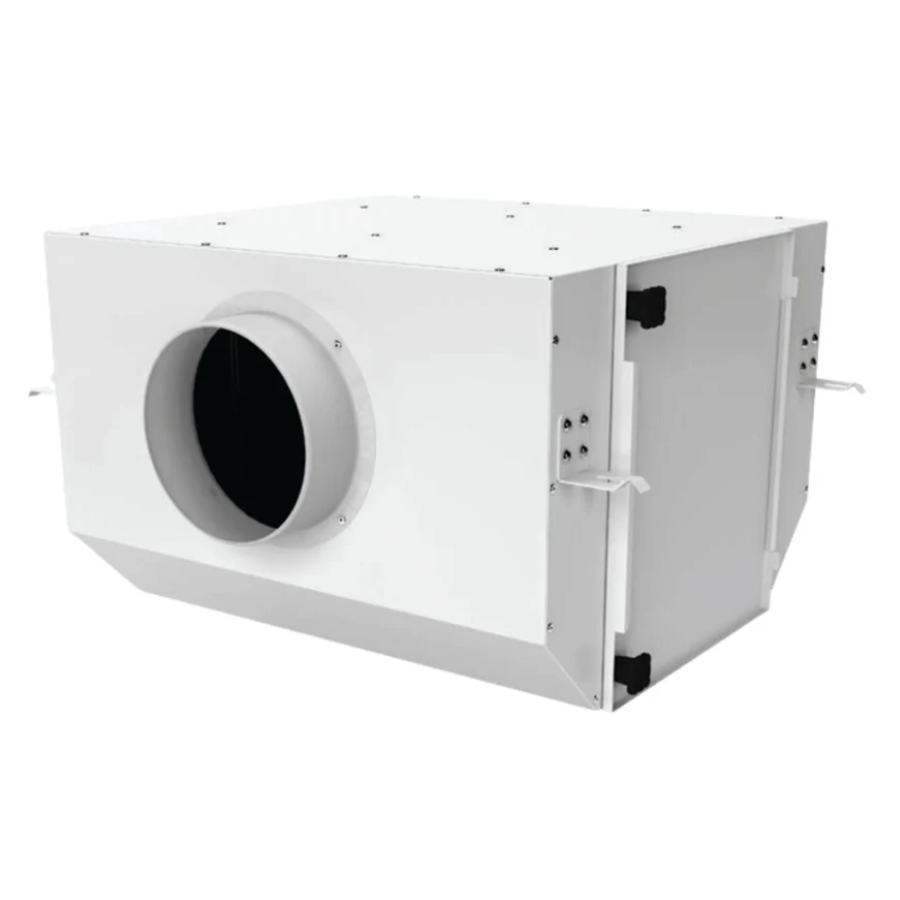

Vents FB K2 Series Inline Filter Box with Single Filter

The Vents FB K2 Series, equipped with advanced filtration technology, is meticulously crafted for seamless integration into both supply and exhaust ventilation systems. It excels at delivering a combination of exceptional air purification, minimal noise emission, and a compact footprint.
The G4 Series offers single MERV8 filtration designed to effectively cleanse incoming air. This single-filter system can handle airflow rates of up to 341 CFM, all housed in a robust, insulated metal casing. Its IPX4 rating ensures not only efficient operation but also a remarkably quiet performance once your choice of fan has been installed. Fan not included.
Looking to buy in larger quantities for your next build? Feel free to give us a call or drop us an email.
Features:
- 4"- 8" Duct sizes
- One MERV8 Filer included
- Filter Cleaning efficiency - 98%
- All Metal housing for extra durability
- Airflow capacity up to 341 CFM - fan not included.
- High static pressure applications
- Commercial/Residential
- Energy efficient and Maintenance free
- 2 Year Warranty
Details
Vents FB K2 Series Fan Box with Single Filter |
||||
Model | FB K2 100 G4 | FB K2 125 G4 | FB K2 150 G4 | FB K2 200 G4 |
Duct Size | 4" | 5" | 6" | 8" |
Power Usage Watts | 53W | 63W | 63W | 123W |
Volts/Hz | 120/60 | 120/60 | 120/60 | 120/60 |
Sones | 0.4 | 0.5 | 0.5 | 1.8 |
CFM Maximum (0 PS WG) | 112 | 156 | 212 | 341 |
What's Included | Mounting bracket and power cord - fan not included |
